【背景】
折腾：
期间，需要在创建好的tab页面内，不依赖于xml文件设置布局，动态创建多个Group分组。
【折腾过程】
1.弄了半天，感觉对于Android中的UI架构不熟悉，一头雾水。
所以去看官网中关于UI架构的解释：
UI Overview | Android Developers
后来用如下代码：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 | public class MainActivity extends FragmentActivity {//public class MainActivity extends Activity {//public class MainActivity extends TabActivity { /** * The serialization (saved instance state) Bundle key representing the * current tab position. */ private static final String STATE_SELECTED_NAVIGATION_ITEM = "selected_navigation_item";// @SuppressWarnings("deprecation") @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); //TabHost tabHost2 = getTabHost(); TabHost tabHost=(TabHost)findViewById(R.id.tabHost); tabHost.setup(); TabSpec spec1=tabHost.newTabSpec("Tab1"); //spec1.setContent(R.id.tab1); spec1.setContent(new TabHost.TabContentFactory() { public View createTabContent(String tag) {// TextView txtView = new TextView(MainActivity.this);// txtView.setText("Tab Text in createTabContent");// return txtView;\ LinearLayout tab1AllGroup = new LinearLayout(MainActivity.this); tab1AllGroup.setLayoutParams( new LayoutParams( LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); tab1AllGroup.setOrientation(LinearLayout.VERTICAL);// //LinearLayout panel = (LinearLayout) findViewById(R.id.eachTab); LinearLayout tab1Group1 = new LinearLayout(MainActivity.this); tab1Group1.setLayoutParams( new LayoutParams( LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); tab1Group1.setOrientation(LinearLayout.VERTICAL); TextView tab1Group1Text1 = new TextView(MainActivity.this); tab1Group1Text1.setText("This is newly created tab: Tab 1 Group 1 Text 1"); tab1Group1Text1.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, 60)); tab1Group1.addView(tab1Group1Text1); TextView tab1Group1Text2 = new TextView(MainActivity.this); tab1Group1Text2.setText("This is newly created tab: Tab 1 Group 1 Text 2"); tab1Group1Text2.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); tab1Group1.addView(tab1Group1Text2); // login button final Button btnLogin = new Button(MainActivity.this); btnLogin.setText("Login"); btnLogin.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); btnLogin.setGravity(Gravity.CENTER); btnLogin.setOnClickListener( new View.OnClickListener() { public void onClick(View view) { Log.d("pocketmagic.net", "_createForm click but"); } }); tab1Group1.addView(btnLogin); LinearLayout tab1Group2 = new LinearLayout(MainActivity.this); tab1Group2.setLayoutParams( new LayoutParams( LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); tab1Group2.setOrientation(LinearLayout.VERTICAL); TextView tab1Group2Text1 = new TextView(MainActivity.this); tab1Group2Text1.setText("This is newly created tab: Tab 1 Group 2 Text 1"); tab1Group2Text1.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, 60)); tab1Group2.addView(tab1Group2Text1); tab1AllGroup.addView(tab1Group1); tab1AllGroup.addView(tab1Group2); return tab1AllGroup; } }); spec1.setIndicator("Tab Text for setIndicator"); TabSpec spec2=tabHost.newTabSpec("Tab2"); spec2.setIndicator("Tab 2"); spec2.setContent(new TabHost.TabContentFactory() { public View createTabContent(String tag) { // return(new AnalogClock(MainActivity.this)); LinearLayout panel = new LinearLayout(MainActivity.this); panel.setLayoutParams( new LayoutParams( LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); panel.setOrientation(LinearLayout.VERTICAL); //LinearLayout panel = (LinearLayout) findViewById(R.id.eachTab); TextView tab2Text1 = new TextView(MainActivity.this); tab2Text1.setText("This is newly created tab: Tab 2 Text 1"); tab2Text1.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); panel.addView(tab2Text1); return panel; } }); spec2.setIndicator("Tab 2"); tabHost.addTab(spec1); tabHost.addTab(spec2); } |
对应xml文件：
res/layout/activity_main.xml
的内容是：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 | <?xml version="1.0" encoding="utf-8"?><!-- <FrameLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/container" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MainActivity" tools:ignore="MergeRootFrame" />--><TabHost android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@+id/tabHost" <TabWidget android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@android:id/tabs"/> <FrameLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@android:id/tabcontent"> <!-- <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@+id/eachTab" android:orientation="vertical" android:paddingTop="60px"> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@+id/tab1" android:orientation="vertical" android:paddingTop="60px"> <TextView android:layout_width="fill_parent" android:layout_height="100px" android:text="This is tab1" android:id="@+id/txt1"/> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@+id/tab2" android:orientation="vertical" android:paddingTop="60px"> <TextView android:layout_width="fill_parent" android:layout_height="100px" android:text="This is tab 2" android:id="@+id/txt2"/> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@+id/tab3" android:orientation="vertical" android:paddingTop="60px"> <TextView android:layout_width="fill_parent" android:layout_height="100px" android:text="This is tab 3" android:id="@+id/txt3"/> </LinearLayout>--> </FrameLayout></TabHost> |

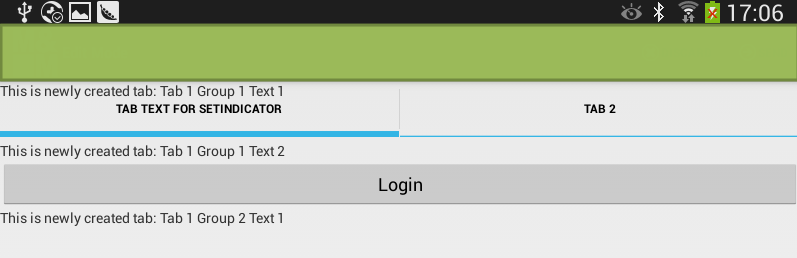

是可以动态添加多个group：

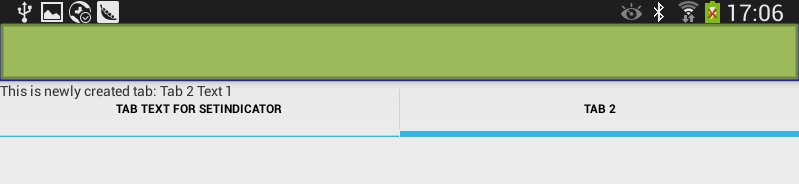

和：
但是很明显存在很多问题：
（1）显示出来的内容，不是在tab内，而是在整个页面内
（2）多个group中间也是没有分隔开的。
3.现在先整理和记录一些心得：
问题1：找不到getTabHost
如果你的activity的类，不是继承自TabActivity，那么直接用getTabHost，则会提示你找不到此函数。
比如：
1 2 3 4 5 6 7 | public class MainActivity extends FragmentActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); TabHost tabHost2 = getTabHost(); |
只有改为：
1 2 3 4 5 6 7 8 9 | //public class MainActivity extends FragmentActivity {public class MainActivity extends TabActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); TabHost tabHost2 = getTabHost(); |
才可以找到getTabHost。
问题2：最好不要再用TabActivity
上面的错误的该法，虽然是可以正常编译通过，但是不是好的做法。
以为你TabActivity现在已经废弃，不推荐再使用了。
参考：
Android之TabHost – 好寂寞先生 – 51CTO技术博客
问题3：Your TabHost must have a FrameLayout whose id attribute is ‘android.R.id.tabcontent’
如果你之前的Tab对应的xml定义中，缺少了对应的FrameLayout的tabcontent部分，比如：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 | <?xml version="1.0" encoding="utf-8"?><TabHost android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@+id/tabHost" <TabWidget android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@android:id/tabs"/> <!-- <FrameLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@android:id/tabcontent"> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@+id/eachTab" android:orientation="vertical" android:paddingTop="60px"> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@+id/tab1" android:orientation="vertical" android:paddingTop="60px"> <TextView android:layout_width="fill_parent" android:layout_height="100px" android:text="This is tab1" android:id="@+id/txt1"/> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@+id/tab2" android:orientation="vertical" android:paddingTop="60px"> <TextView android:layout_width="fill_parent" android:layout_height="100px" android:text="This is tab 2" android:id="@+id/txt2"/> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@+id/tab3" android:orientation="vertical" android:paddingTop="60px"> <TextView android:layout_width="fill_parent" android:layout_height="100px" android:text="This is tab 3" android:id="@+id/txt3"/> </LinearLayout> </FrameLayout>--></TabHost> |
则运行时，会出现异常：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 | 02-27 16:54:43.642: W/dalvikvm(15932): threadid=1: thread exiting with uncaught exception (group=0x41abce10)02-27 16:54:43.662: E/AndroidRuntime(15932): FATAL EXCEPTION: main02-27 16:54:43.662: E/AndroidRuntime(15932): java.lang.RuntimeException: Unable to start activity ComponentInfo{com.mm.harthandheld/com.mm.harthandheld.UI.MainActivity}: java.lang.RuntimeException: Your TabHost must have a FrameLayout whose id attribute is 'android.R.id.tabcontent'02-27 16:54:43.662: E/AndroidRuntime(15932): at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2245)02-27 16:54:43.662: E/AndroidRuntime(15932): at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2295)02-27 16:54:43.662: E/AndroidRuntime(15932): at android.app.ActivityThread.access$700(ActivityThread.java:150)02-27 16:54:43.662: E/AndroidRuntime(15932): at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1280)02-27 16:54:43.662: E/AndroidRuntime(15932): at android.os.Handler.dispatchMessage(Handler.java:99)02-27 16:54:43.662: E/AndroidRuntime(15932): at android.os.Looper.loop(Looper.java:176)02-27 16:54:43.662: E/AndroidRuntime(15932): at android.app.ActivityThread.main(ActivityThread.java:5279)02-27 16:54:43.662: E/AndroidRuntime(15932): at java.lang.reflect.Method.invokeNative(Native Method)02-27 16:54:43.662: E/AndroidRuntime(15932): at java.lang.reflect.Method.invoke(Method.java:511)02-27 16:54:43.662: E/AndroidRuntime(15932): at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1102)02-27 16:54:43.662: E/AndroidRuntime(15932): at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:869)02-27 16:54:43.662: E/AndroidRuntime(15932): at dalvik.system.NativeStart.main(Native Method)02-27 16:54:43.662: E/AndroidRuntime(15932): Caused by: java.lang.RuntimeException: Your TabHost must have a FrameLayout whose id attribute is 'android.R.id.tabcontent'02-27 16:54:43.662: E/AndroidRuntime(15932): at android.widget.TabHost.setup(TabHost.java:170)02-27 16:54:43.662: E/AndroidRuntime(15932): at com.mm.harthandheld.UI.MainActivity.onCreate(MainActivity.java:97)02-27 16:54:43.662: E/AndroidRuntime(15932): at android.app.Activity.performCreate(Activity.java:5267)02-27 16:54:43.662: E/AndroidRuntime(15932): at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1097)02-27 16:54:43.662: E/AndroidRuntime(15932): at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2209)02-27 16:54:43.662: E/AndroidRuntime(15932): ... 11 more |
而把对应的FrameLayout的tabcontent加上，即可：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 | <?xml version="1.0" encoding="utf-8"?><TabHost android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@+id/tabHost" <TabWidget android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@android:id/tabs"/> <FrameLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@android:id/tabcontent"><!-- <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@+id/eachTab" android:orientation="vertical" android:paddingTop="60px"> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@+id/tab1" android:orientation="vertical" android:paddingTop="60px"> <TextView android:layout_width="fill_parent" android:layout_height="100px" android:text="This is tab1" android:id="@+id/txt1"/> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@+id/tab2" android:orientation="vertical" android:paddingTop="60px"> <TextView android:layout_width="fill_parent" android:layout_height="100px" android:text="This is tab 2" android:id="@+id/txt2"/> </LinearLayout> <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:id="@+id/tab3" android:orientation="vertical" android:paddingTop="60px"> <TextView android:layout_width="fill_parent" android:layout_height="100px" android:text="This is tab 3" android:id="@+id/txt3"/> </LinearLayout>--> </FrameLayout></TabHost> |
可参考：
Android TabHost,TabWidget选项卡总结-Android开发问题解答-eoe Android开发者社区_Android开发论坛 – Powered by Discuz!
TabWidget/TabHost的两种使用方法 – 榴莲酥博客 – eoe移动开发者社区
问题4：TabHost，TabWidget，Tab content，FrameLayout之间的关系
可以参考：
TabView (Part 1) – Simple tab control in Android | Android Tech（需要翻墙）
和：
对TabHost、TabWidget的理解分析 – Alex_Michel – 51CTO技术博客
【继续折腾】
1.另外想起来了，此处应该是去找Android中的类似于Windows中的GroupBox的东西的。
所以再去搜：
android groupbox
2.找到：
Android: how to make a GroupBox widget? – Stack Overflow
找到这个讨论：
Border around a LinearLayout / rounded edges – Google Groups
但是没用。
原先帖子中，有人自己用代码模拟了一个，但是狂复杂。。。
3.参考：
android 布局，有没有类似mfc 中groupbox的控件-CSDN论坛-CSDN.NET-中国最大的IT技术社区
去找找
android CheckBoxPreference
找到：
官网的：
CheckBoxPreference | Android Developers
其他的示例：
Android的设置界面及Preference使用 – ichliebephone的专栏 – 博客频道 – CSDN.NET
很明显，不是所希望的groupbox的效果。。。
4.真是忍不住吐槽，Android中竟然不内置支持GroupBox这种控件。。。
5.参考：
Border around a LinearLayout / rounded edges – Google Groups
提到的：
how to put a border around an android textview – Stack Overflow
有空再去试试效果，最后弄出个基本的效果：
（1）添加xml去配置背景
在项目的/res/drawable下面加上一个group_background.xml
内容为：
1 2 3 4 5 | <?xml version="1.0" encoding="utf-8"?> <solid android:color="#ff0000" /> <stroke android:width="3dip" android:color="#4fa5d5"/></shape> |
（2）在原先的代码中，添加对应的setBackgroundResource
此处，是参考：
how to put a border around an android textview – Stack Overflow
而去找了官方的：
中的：
android:background setBackgroundResource(int) A drawable to use as the background. |
而发现，我对于View类的东西（此处的我的是LinearLayout）除了可以静态的在xml中配置对应的android:background的属性之外，也可以动态的通过代码setBackgroundResource去设置的。
代码为：
1 2 3 4 5 6 7 | LinearLayout tab1Group1 = new LinearLayout(tabContext);tab1Group1.setLayoutParams( new LayoutParams( LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT));tab1Group1.setOrientation(LinearLayout.VERTICAL);tab1Group1.setBackgroundResource(R.drawable.group_background); |

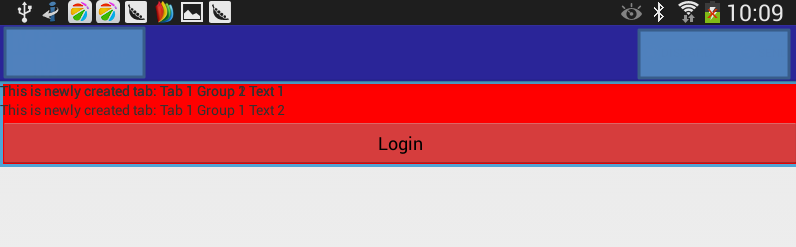

然后运行效果如下：
其中可见：
此处背景色故意设置为了红色，边框是淡蓝色。
算是基本模拟出来外部有边框的groupbox的效果了。。。
6.再去新建多个groupbox试试，但是用如下代码：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 | final TabHost tabHost = (TabHost)findViewById(R.id.tabHost); tabHost.setup(); //final Context tabContext = tabHost.getContext(); final Context tabContext = MainActivity.this; TabSpec spec1=tabHost.newTabSpec("Tab1"); //spec1.setContent(R.id.tab1); spec1.setContent(new TabHost.TabContentFactory() { public View createTabContent(String tag) {// TextView txtView = new TextView(tabContext);// txtView.setText("Tab Text in createTabContent");// return txtView;\// LinearLayout tab1AllGroup = new LinearLayout(tabContext);// tab1AllGroup.setLayoutParams(// new LayoutParams(// LayoutParams.FILL_PARENT,// LayoutParams.WRAP_CONTENT));// tab1AllGroup.setOrientation(LinearLayout.VERTICAL); FrameLayout tab1AllGroup = (FrameLayout) findViewById(android.R.id.tabcontent); //LinearLayout panel = (LinearLayout) findViewById(R.id.eachTab); LinearLayout tab1Group1 = new LinearLayout(tabContext); tab1Group1.setLayoutParams( new LayoutParams( LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT)); tab1Group1.setOrientation(LinearLayout.VERTICAL); tab1Group1.setBackgroundResource(R.drawable.group_background); TextView tab1Group1Text1 = new TextView(tabContext); tab1Group1Text1.setText("This is newly created tab: Tab 1 Group 1 Text 1"); //tab1Group1Text1.setLayoutParams(new LayoutParams(LayoutParams.MATCH_PARENT, 60)); tab1Group1.addView(tab1Group1Text1); TextView tab1Group1Text2 = new TextView(tabContext); tab1Group1Text2.setText("This is newly created tab: Tab 1 Group 1 Text 2"); //tab1Group1Text2.setLayoutParams(new LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT)); tab1Group1.addView(tab1Group1Text2); LinearLayout tab1Group2 = new LinearLayout(tabContext); tab1Group2.setLayoutParams( new LayoutParams( LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT)); tab1Group2.setOrientation(LinearLayout.VERTICAL); tab1Group2.setBackgroundResource(R.drawable.group_background); // login button final Button btnLogin = new Button(tabContext); btnLogin.setText("Login"); btnLogin.setLayoutParams(new LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT)); btnLogin.setGravity(Gravity.CENTER); btnLogin.setOnClickListener( new View.OnClickListener() { public void onClick(View view) { Log.d("pocketmagic.net", "_createForm click but"); } }); tab1Group2.addView(btnLogin); LinearLayout tab1Group3 = new LinearLayout(tabContext); tab1Group3.setLayoutParams( new LayoutParams( LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT)); tab1Group3.setOrientation(LinearLayout.VERTICAL); TextView tab1Group2Text1 = new TextView(tabContext); tab1Group2Text1.setText("This is newly created tab: Tab 1 Group 2 Text 1"); tab1Group2Text1.setLayoutParams(new LayoutParams(LayoutParams.MATCH_PARENT, 60)); tab1Group3.addView(tab1Group2Text1); tab1AllGroup.addView(tab1Group1); tab1AllGroup.addView(tab1Group2); tab1AllGroup.addView(tab1Group3); return tab1AllGroup; } }); spec1.setIndicator("Tab 1"); TabSpec spec2=tabHost.newTabSpec("Tab2"); spec2.setIndicator("Tab 2"); spec2.setContent(new TabHost.TabContentFactory() { public View createTabContent(String tag) { // return(new AnalogClock(tabContext)); LinearLayout panel = new LinearLayout(tabContext); panel.setLayoutParams( new LayoutParams( LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); panel.setOrientation(LinearLayout.VERTICAL); //LinearLayout panel = (LinearLayout) findViewById(R.id.eachTab); TextView tab2Text1 = new TextView(tabContext); tab2Text1.setText("This is newly created tab: Tab 2 Text 1"); tab2Text1.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); panel.addView(tab2Text1); return panel; } }); spec2.setIndicator("Tab 2"); tabHost.addTab(spec1); tabHost.addTab(spec2); } |
结果是：
tab内的多个group，全部都重叠了。搞得只能看到最后一层的内容。
【总结】
算了，很明显，实际上此处新建多个group已经解决了。
但是显示很错乱，那是由于之前就存在的问题：
【未解决】Android中的TabHost中的TAB中的FrameLayout中的View出现重叠且覆盖了TAB标签
