    【记录】Android Studio中调试和运行OsmAnd

    Osmand crifan 6104浏览 0评论

    【背景】

    折腾了：

    【记录】Android Studio中导入OsmAnd并编译

    后，去编译，调试，运行OsmAnd。

    【折腾过程】

    1.Run->Run OsmAnd

    run run osmand in android studio

    弹出选择对话框：

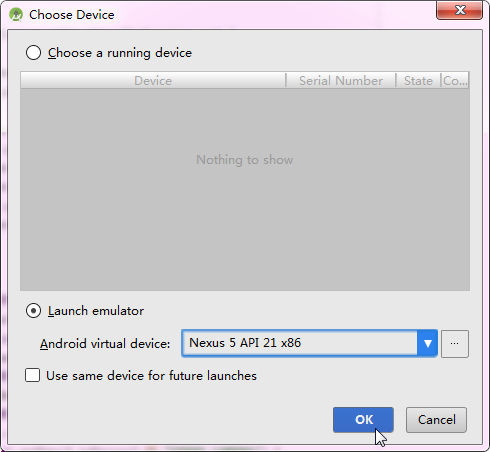

    launch emulator choose Nexus 5 API 21x86

    2.然后窗口切换到：

    Run的输出

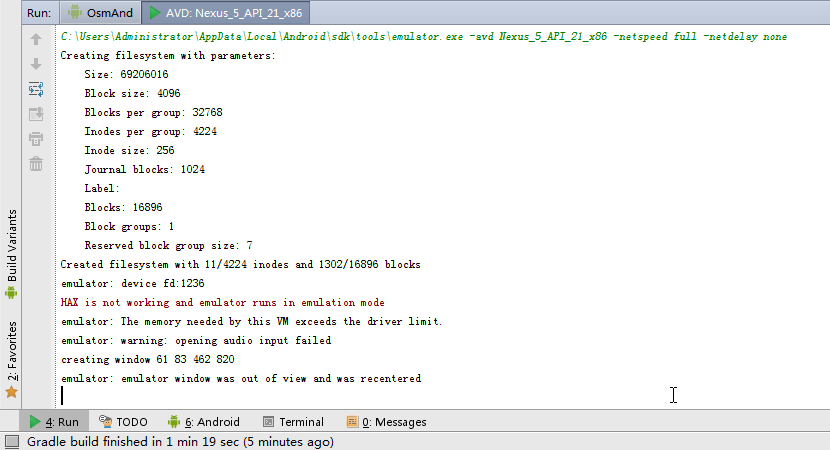

    run output message show emulator detail

    C:\Users\Administrator\AppData\Local\Android\sdk\tools\emulator.exe -avd Nexus_5_API_21_x86 -netspeed full -netdelay none
Creating filesystem with parameters:
    Size: 69206016
    Block size: 4096
    Blocks per group: 32768
    Inodes per group: 4224
    Inode size: 256
    Journal blocks: 1024
    Label:
    Blocks: 16896
    Block groups: 1
    Reserved block group size: 7
Created filesystem with 11/4224 inodes and 1302/16896 blocks
emulator: device fd:1236
HAX is not working and emulator runs in emulation mode
emulator: The memory needed by this VM exceeds the driver limit.
emulator: warning: opening audio input failed
creating window 61 83 462 820
emulator: emulator window was out of view and was recentered

    然后虚拟机运行了半天都还是Android那几个字母的界面，根本进不去，所以直接关了。

    3.猜测是不是由于当前这个虚拟机有问题，所以打算重新去建一个虚拟机AVD：

    【记录】在Android Studio中创建AVD虚拟机

    4.创建好AVD后，然后用这个虚拟机重新运行试试：

    choose newly created nexus one 3.7 inch device

    结果还是无法运行。

    5.后来的后来，不管了，先去试试是否可以Android真机调试，结果试的结果是可以的：

    把Android手机连接到电脑后，此处的AVD管理器可以看到新插入的设备，可以选择运行调试：

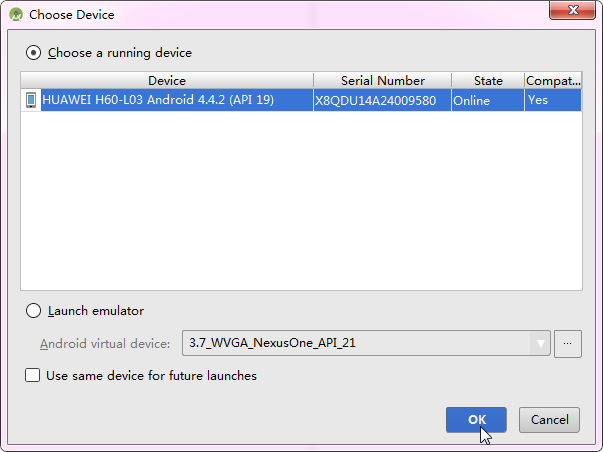

    choose device huawei H60-L03 android 4.4.2 api 19

    然后log是：

    Waiting for device.
Target device: huawei-h60_l03-X8QDU14A24009580
Uploading file
 local path: E:\crifan\DevRoot\Osmand-master\OsmAnd\build\outputs\apk\OsmAnd-free-legacy-armv5-debug.apk
 remote path: /data/local/tmp/net.osmand
Installing net.osmand
DEVICE SHELL COMMAND: pm install -r "/data/local/tmp/net.osmand"
pkg: /data/local/tmp/net.osmand
Success
Launching application: net.osmand/net.osmand.plus.activities.MapActivity.
DEVICE SHELL COMMAND: am start -n "net.osmand/net.osmand.plus.activities.MapActivity" -a android.intent.action.MAIN -c android.intent.category.LAUNCHER
Starting: Intent { act=android.intent.action.MAIN cat=[android.intent.category.LAUNCHER] cmp=net.osmand/.plus.activities.MapActivity }

    然后跳转到：

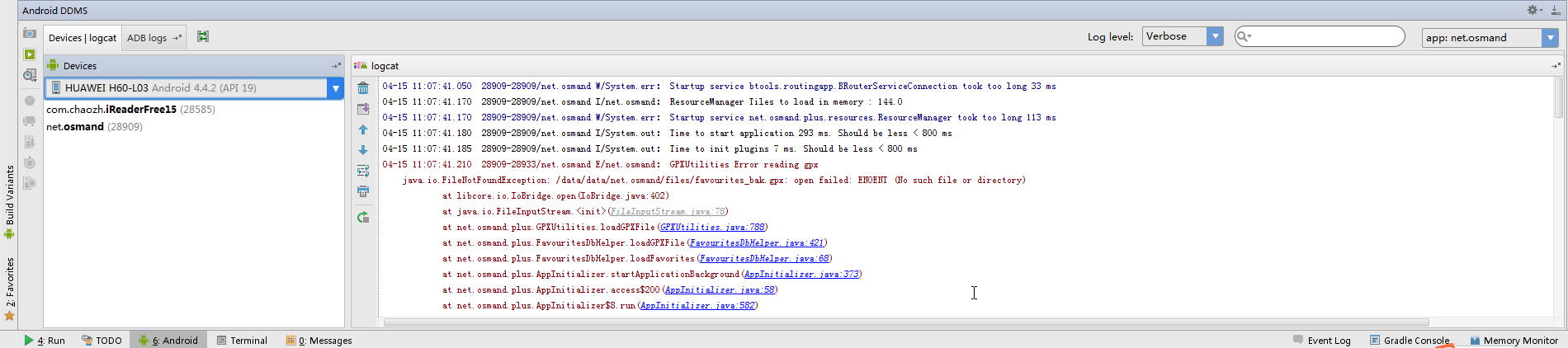

    logcat show h60-l03 run osmand output

    然后就可以在Android手机上继续调试了。

    对应的logcat输出：

    04-15 11:07:41.050  28909-28909/net.osmand W/System.err﹕ Startup service btools.routingapp.BRouterServiceConnection took too long 33 ms
04-15 11:07:41.170  28909-28909/net.osmand I/net.osmand﹕ ResourceManager Tiles to load in memory : 144.0
04-15 11:07:41.170  28909-28909/net.osmand W/System.err﹕ Startup service net.osmand.plus.resources.ResourceManager took too long 113 ms
04-15 11:07:41.180  28909-28909/net.osmand I/System.out﹕ Time to start application 293 ms. Should be less < 800 ms
04-15 11:07:41.185  28909-28909/net.osmand I/System.out﹕ Time to init plugins 7 ms. Should be less < 800 ms
04-15 11:07:41.210  28909-28933/net.osmand E/net.osmand﹕ GPXUtilities Error reading gpx
    java.io.FileNotFoundException: /data/data/net.osmand/files/favourites_bak.gpx: open failed: ENOENT (No such file or directory)
            at libcore.io.IoBridge.open(IoBridge.java:402)
            at java.io.FileInputStream.<init>(FileInputStream.java:78)
            at net.osmand.plus.GPXUtilities.loadGPXFile(GPXUtilities.java:788)
            at net.osmand.plus.FavouritesDbHelper.loadGPXFile(FavouritesDbHelper.java:421)
            at net.osmand.plus.FavouritesDbHelper.loadFavorites(FavouritesDbHelper.java:68)
            at net.osmand.plus.AppInitializer.startApplicationBackground(AppInitializer.java:373)
            at net.osmand.plus.AppInitializer.access$200(AppInitializer.java:58)
            at net.osmand.plus.AppInitializer$8.run(AppInitializer.java:582)
            at java.lang.Thread.run(Thread.java:841)
     Caused by: libcore.io.ErrnoException: open failed: ENOENT (No such file or directory)
            at libcore.io.Posix.open(Native Method)
            at libcore.io.BlockGuardOs.open(BlockGuardOs.java:110)
            at libcore.io.IoBridge.open(IoBridge.java:393)
            at java.io.FileInputStream.<init>(FileInputStream.java:78)
            at net.osmand.plus.GPXUtilities.loadGPXFile(GPXUtilities.java:788)
            at net.osmand.plus.FavouritesDbHelper.loadGPXFile(FavouritesDbHelper.java:421)
            at net.osmand.plus.FavouritesDbHelper.loadFavorites(FavouritesDbHelper.java:68)
            at net.osmand.plus.AppInitializer.startApplicationBackground(AppInitializer.java:373)
            at net.osmand.plus.AppInitializer.access$200(AppInitializer.java:58)
            at net.osmand.plus.AppInitializer$8.run(AppInitializer.java:582)
            at java.lang.Thread.run(Thread.java:841)
04-15 11:07:41.210  28909-28933/net.osmand E/net.osmand﹕ GPXUtilities Error reading gpx
    java.io.FileNotFoundException: /storage/emulated/0/osmand/favourites.gpx: open failed: ENOENT (No such file or directory)
            at libcore.io.IoBridge.open(IoBridge.java:402)
            at java.io.FileInputStream.<init>(FileInputStream.java:78)
            at net.osmand.plus.GPXUtilities.loadGPXFile(GPXUtilities.java:788)
            at net.osmand.plus.FavouritesDbHelper.loadGPXFile(FavouritesDbHelper.java:421)
            at net.osmand.plus.FavouritesDbHelper.loadFavorites(FavouritesDbHelper.java:69)
            at net.osmand.plus.AppInitializer.startApplicationBackground(AppInitializer.java:373)
            at net.osmand.plus.AppInitializer.access$200(AppInitializer.java:58)
            at net.osmand.plus.AppInitializer$8.run(AppInitializer.java:582)
            at java.lang.Thread.run(Thread.java:841)
     Caused by: libcore.io.ErrnoException: open failed: ENOENT (No such file or directory)
            at libcore.io.Posix.open(Native Method)
            at libcore.io.BlockGuardOs.open(BlockGuardOs.java:110)
            at libcore.io.IoBridge.open(IoBridge.java:393)
            at java.io.FileInputStream.<init>(FileInputStream.java:78)
            at net.osmand.plus.GPXUtilities.loadGPXFile(GPXUtilities.java:788)
            at net.osmand.plus.FavouritesDbHelper.loadGPXFile(FavouritesDbHelper.java:421)
            at net.osmand.plus.FavouritesDbHelper.loadFavorites(FavouritesDbHelper.java:69)
            at net.osmand.plus.AppInitializer.startApplicationBackground(AppInitializer.java:373)
            at net.osmand.plus.AppInitializer.access$200(AppInitializer.java:58)
            at net.osmand.plus.AppInitializer$8.run(AppInitializer.java:582)
            at java.lang.Thread.run(Thread.java:841)
04-15 11:07:41.215  28909-28933/net.osmand I/System.out﹕ Initialized FAVORITES_INITIALIZED in 34 ms
04-15 11:07:41.275  28909-28909/net.osmand I/dalvikvm﹕ Could not find method android.view.ViewGroup.onNestedScrollAccepted, referenced from method android.support.v7.internal.widget.ActionBarOverlayLayout.onNestedScrollAccepted
04-15 11:07:41.275  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve virtual method 14795: Landroid/view/ViewGroup;.onNestedScrollAccepted (Landroid/view/View;Landroid/view/View;I)V
04-15 11:07:41.285  28909-28909/net.osmand I/dalvikvm﹕ Could not find method android.view.ViewGroup.onStopNestedScroll, referenced from method android.support.v7.internal.widget.ActionBarOverlayLayout.onStopNestedScroll
04-15 11:07:41.285  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve virtual method 14801: Landroid/view/ViewGroup;.onStopNestedScroll (Landroid/view/View;)V
04-15 11:07:41.285  28909-28909/net.osmand I/dalvikvm﹕ Could not find method android.support.v7.internal.widget.ActionBarOverlayLayout.stopNestedScroll, referenced from method android.support.v7.internal.widget.ActionBarOverlayLayout.setHideOnContentScrollEnabled
04-15 11:07:41.285  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve virtual method 11052: Landroid/support/v7/internal/widget/ActionBarOverlayLayout;.stopNestedScroll ()V
04-15 11:07:41.290  28909-28909/net.osmand I/dalvikvm﹕ Could not find method android.content.res.TypedArray.getChangingConfigurations, referenced from method android.support.v7.internal.widget.TintTypedArray.getChangingConfigurations
04-15 11:07:41.290  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve virtual method 2058: Landroid/content/res/TypedArray;.getChangingConfigurations ()I
04-15 11:07:41.305  28909-28909/net.osmand I/dalvikvm﹕ Could not find method android.content.res.TypedArray.getType, referenced from method android.support.v7.internal.widget.TintTypedArray.getType
04-15 11:07:41.305  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve virtual method 2080: Landroid/content/res/TypedArray;.getType (I)I
04-15 11:07:41.650  28909-28909/net.osmand I/dalvikvm﹕ Could not find method android.view.View.<init>, referenced from method com.software.shell.fab.ActionButton.<init>
04-15 11:07:41.650  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve direct method 14540: Landroid/view/View;.<init> (Landroid/content/Context;Landroid/util/AttributeSet;II)V
04-15 11:07:41.650  28909-28909/net.osmand I/dalvikvm﹕ Could not find method com.software.shell.fab.ActionButton.getElevation, referenced from method com.software.shell.fab.ActionButton.hasElevation
04-15 11:07:41.650  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve virtual method 30201: Lcom/software/shell/fab/ActionButton;.getElevation ()F
04-15 11:07:41.650  28909-28909/net.osmand W/dalvikvm﹕ Unable to resolve superclass of Lcom/software/shell/fab/ActionButtonOutlineProvider; (1686)
04-15 11:07:41.650  28909-28909/net.osmand W/dalvikvm﹕ Link of class 'Lcom/software/shell/fab/ActionButtonOutlineProvider;' failed
04-15 11:07:41.650  28909-28909/net.osmand E/dalvikvm﹕ Could not find class 'com.software.shell.fab.ActionButtonOutlineProvider', referenced from method com.software.shell.fab.ActionButton.drawElevation
04-15 11:07:41.650  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve new-instance 3111 (Lcom/software/shell/fab/ActionButtonOutlineProvider;) in Lcom/software/shell/fab/ActionButton;
04-15 11:07:41.655  28909-28909/net.osmand W/dalvikvm﹕ Unable to resolve superclass of Lcom/software/shell/fab/ActionButtonOutlineProvider; (1686)
04-15 11:07:41.655  28909-28909/net.osmand W/dalvikvm﹕ Link of class 'Lcom/software/shell/fab/ActionButtonOutlineProvider;' failed
04-15 11:07:41.710  28909-28933/net.osmand E/net.osmand﹕ MapRenderingTypes Unexpected error
    java.lang.IllegalArgumentException: is == null
            at org.kxml2.io.KXmlParser.setInput(KXmlParser.java:1625)
            at net.osmand.osm.MapPoiTypes.init(MapPoiTypes.java:226)
            at net.osmand.plus.AppInitializer.initPoiTypes(AppInitializer.java:248)
            at net.osmand.plus.AppInitializer.startApplicationBackground(AppInitializer.java:376)
            at net.osmand.plus.AppInitializer.access$200(AppInitializer.java:58)
            at net.osmand.plus.AppInitializer$8.run(AppInitializer.java:582)
            at java.lang.Thread.run(Thread.java:841)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ java.lang.IllegalArgumentException: is == null
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at org.kxml2.io.KXmlParser.setInput(KXmlParser.java:1625)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.osm.MapPoiTypes.init(MapPoiTypes.java:226)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.plus.AppInitializer.initPoiTypes(AppInitializer.java:248)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.plus.AppInitializer.startApplicationBackground(AppInitializer.java:376)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.plus.AppInitializer.access$200(AppInitializer.java:58)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.plus.AppInitializer$8.run(AppInitializer.java:582)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at java.lang.Thread.run(Thread.java:841)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ java.lang.IllegalArgumentException: is == null
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at org.kxml2.io.KXmlParser.setInput(KXmlParser.java:1625)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.osm.MapPoiTypes.init(MapPoiTypes.java:226)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.plus.AppInitializer.initPoiTypes(AppInitializer.java:248)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.plus.AppInitializer.startApplicationBackground(AppInitializer.java:376)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.plus.AppInitializer.access$200(AppInitializer.java:58)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at net.osmand.plus.AppInitializer$8.run(AppInitializer.java:582)
04-15 11:07:41.710  28909-28933/net.osmand W/System.err﹕ at java.lang.Thread.run(Thread.java:841)
04-15 11:07:41.940  28909-28909/net.osmand W/System.err﹕ OnCreate for MapActivity took 736 ms
04-15 11:07:41.950  28909-28909/net.osmand I/dalvikvm﹕ Could not find method android.widget.Button.<init>, referenced from method net.osmand.plus.widgets.ButtonEx.<init>
04-15 11:07:41.950  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve direct method 15196: Landroid/widget/Button;.<init> (Landroid/content/Context;Landroid/util/AttributeSet;II)V
04-15 11:07:41.950  28909-28909/net.osmand I/dalvikvm﹕ Could not find method android.widget.TextView.<init>, referenced from method net.osmand.plus.widgets.TextViewEx.<init>
04-15 11:07:41.950  28909-28909/net.osmand W/dalvikvm﹕ VFY: unable to resolve direct method 15640: Landroid/widget/TextView;.<init> (Landroid/content/Context;Landroid/util/AttributeSet;II)V
04-15 11:09:11.130  28909-28909/net.osmand W/System.err﹕ OnCreate for MapActivity took 89174 ms
04-15 11:09:11.380  28909-28909/net.osmand W/System.err﹕ OnCreate for MapActivity took 100 ms



    6.OsmAnd的app的一些截图：

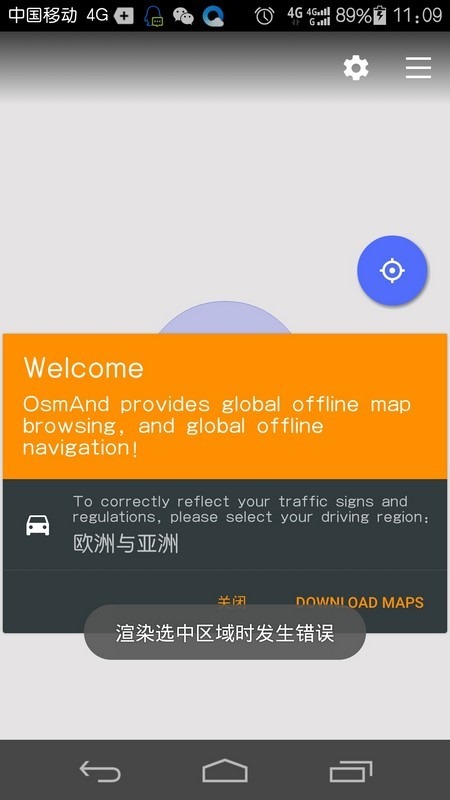

    android osmand welcome page select your diving region

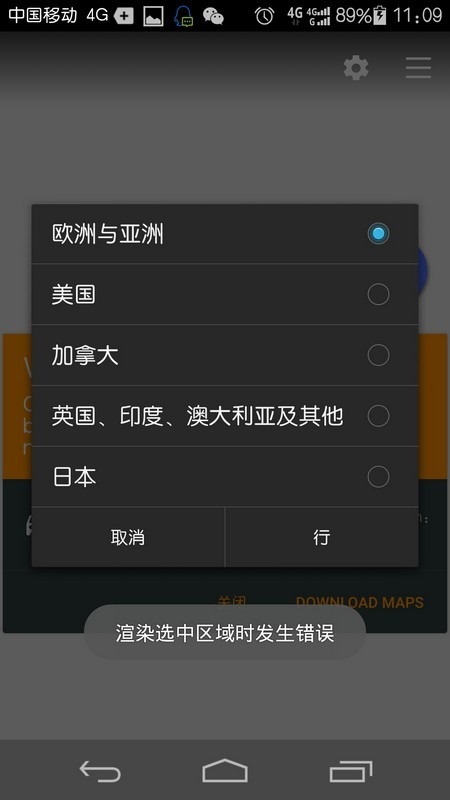

    osmand app choose europe and asia

    点击进入地图后，暂时没有地图数据，所以是空的：

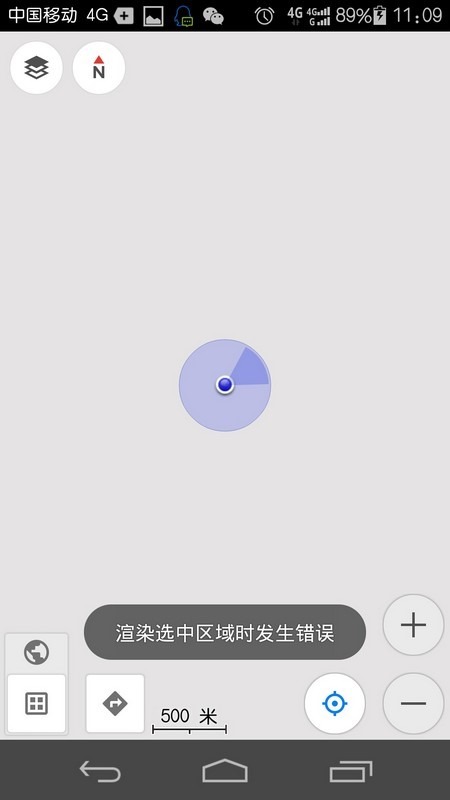

    osmand into map show direction indication circle

    然后点击左下角的地球，显示出不同的出行方式选择：

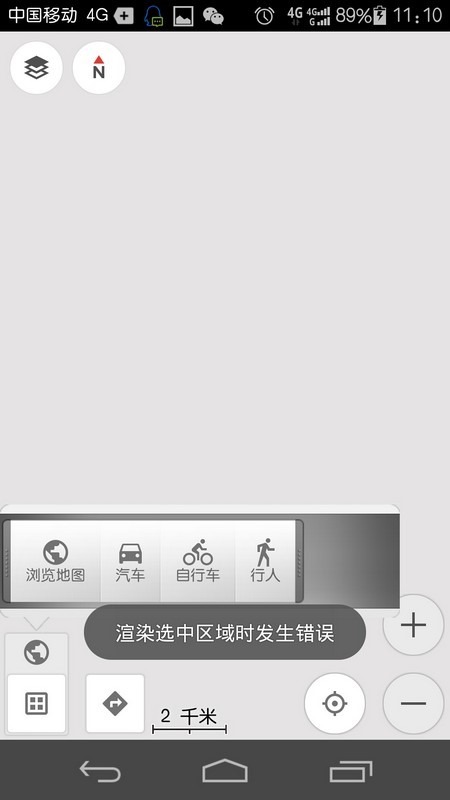

    view map car bicycle people in osmand

    然后是配置页面：

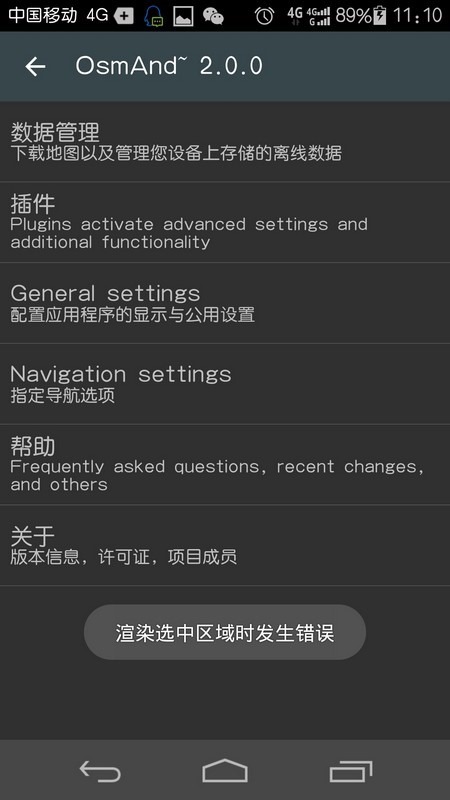

    osmand 2.0.0 settings page

    其他一些功能：

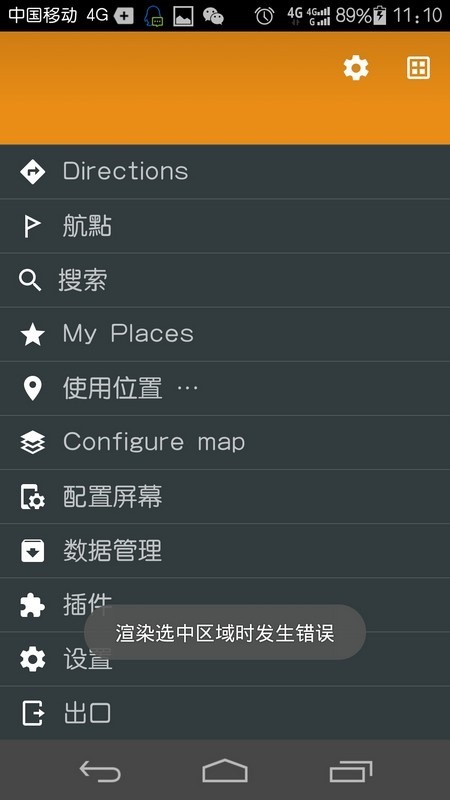

    osmand other funtions



    【总结】

    OsmAnd的Android的app，看起来是很不错的。

    只是暂时出现了个 渲染选中区域时发生错误。好像是由于缺少本地地图之类的原因。那就是感兴趣的，后续自己去调试解决此问题了。

    无论如何：

    截至目前，是可以在Windows中，通过Android Studio编译通过OsmAnd并连接Android手机进行调试了，OsmAnd可以在Android手机中运行了。
