【背景】
看到:
【记录】Android Studio中调试和运行OsmAnd
中
C:\Users\Administrator\AppData\Local\Android\sdk\tools\emulator.exe -avd Nexus_5_API_21_x86 -netspeed full -netdelay none Creating filesystem with parameters: Size: 69206016 Block size: 4096 Blocks per group: 32768 Inodes per group: 4224 Inode size: 256 Journal blocks: 1024 Label: Blocks: 16896 Block groups: 1 Reserved block group size: 7 Created filesystem with 11/4224 inodes and 1302/16896 blocks emulator: device fd:1236 HAX is not working and emulator runs in emulation mode emulator: The memory needed by this VM exceeds the driver limit. emulator: warning: opening audio input failed creating window 61 83 462 820 emulator: emulator window was out of view and was recentered
如图:
的
HAX is not working and emulator runs in emulation mode
所以想要去在Android Studio中安装HAX。
注:
之前已经解决过类似问题,不过是在Eclipse+ADT下:
【已解决】Android的模拟器,在ADT中调试运行AVD时,速度太慢,极其的慢
【解决过程】

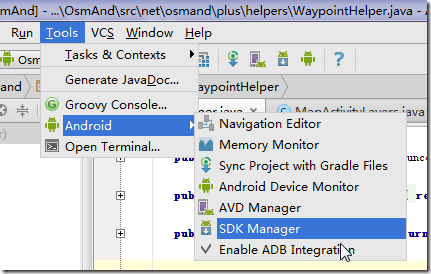

1.Tools->Android->SDK Manager

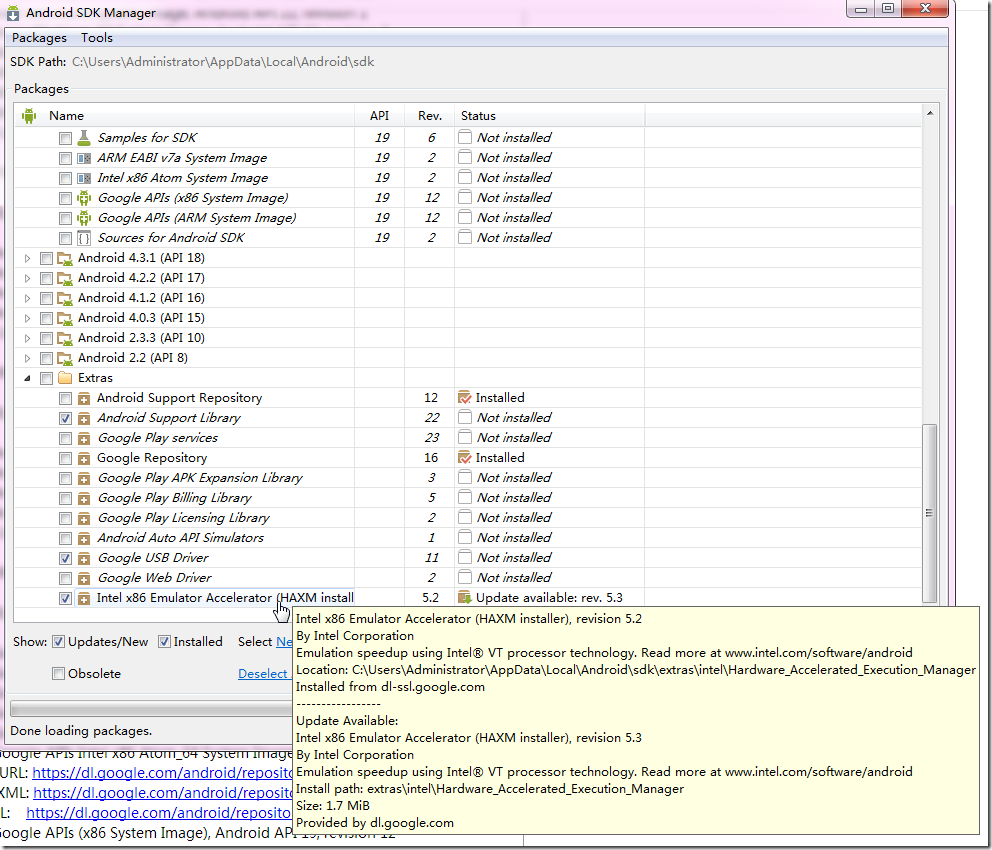

然后就看到对应的HAX了:

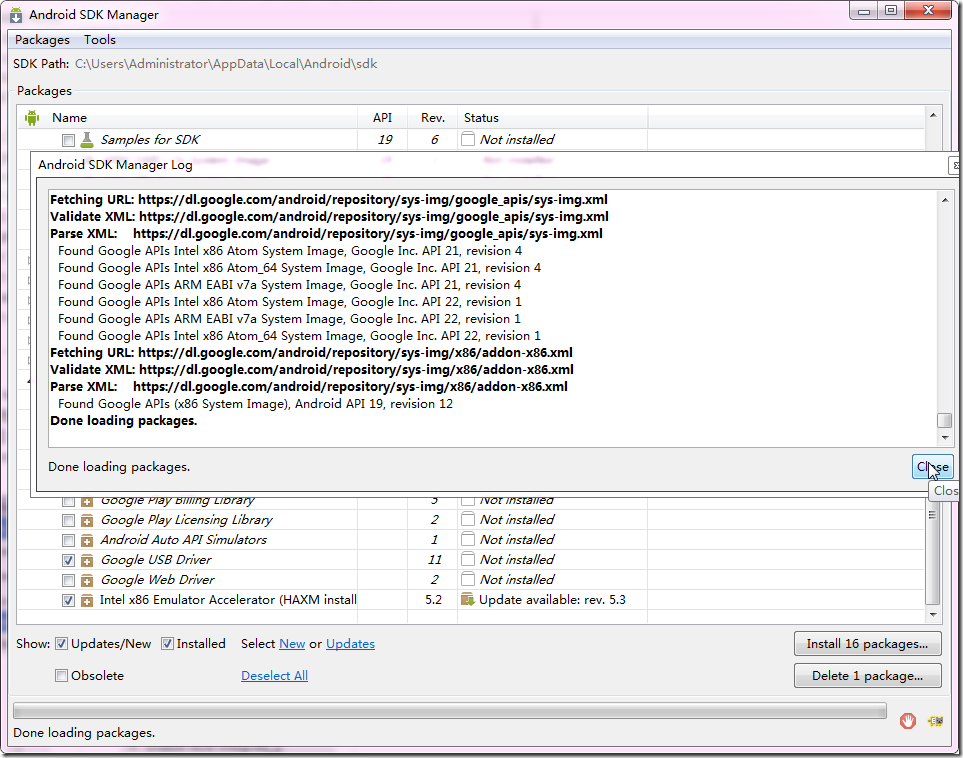

2.然后过了会,弹出下载对话框:
下载了很多相关的东西:
Fetching https://dl.google.com/android/repository/addons_list-2.xml Validate XML Parse XML Fetched Add-ons List successfully Fetching URL: https://dl.google.com/android/repository/repository-10.xml Validate XML: https://dl.google.com/android/repository/repository-10.xml Parse XML: https://dl.google.com/android/repository/repository-10.xml Found SDK Platform Android 1.1, API 2, revision 1 (Obsolete) Found SDK Platform Android 1.5, API 3, revision 4 (Obsolete) Found SDK Platform Android 1.6, API 4, revision 3 (Obsolete) Found SDK Platform Android 2.0, API 5, revision 1 (Obsolete) Found SDK Platform Android 2.0.1, API 6, revision 1 (Obsolete) Found SDK Platform Android 2.1, API 7, revision 3 (Obsolete) Found SDK Platform Android 2.2, API 8, revision 3 Found SDK Platform Android 2.3.1, API 9, revision 2 (Obsolete) Found SDK Platform Android 2.3.3, API 10, revision 2 Found SDK Platform Android 3.0, API 11, revision 2 (Obsolete) Found SDK Platform Android 3.1, API 12, revision 3 (Obsolete) Found SDK Platform Android 3.2, API 13, revision 1 (Obsolete) Found SDK Platform Android 4.0, API 14, revision 4 (Obsolete) Found SDK Platform Android 4.0.3, API 15, revision 5 Found SDK Platform Android 4.1.2, API 16, revision 5 Found SDK Platform Android 4.2.2, API 17, revision 3 Found SDK Platform Android 4.3.1, API 18, revision 3 Found SDK Platform Android 4.4.2, API 19, revision 4 Found SDK Platform Android 4.4W.2, API 20, revision 2 Found SDK Platform Android 5.0.1, API 21, revision 2 Found SDK Platform Android 5.1.1, API 22, revision 2 Found Samples for SDK API 7, revision 1 (Obsolete) Found Samples for SDK API 8, revision 1 Found Samples for SDK API 9, revision 1 (Obsolete) Found Samples for SDK API 10, revision 1 Found Samples for SDK API 11, revision 1 (Obsolete) Found Samples for SDK API 12, revision 1 (Obsolete) Found Samples for SDK API 13, revision 1 (Obsolete) Found Samples for SDK API 14, revision 2 (Obsolete) Found Samples for SDK API 15, revision 2 Found Samples for SDK API 16, revision 1 Found Samples for SDK API 17, revision 1 Found Samples for SDK API 18, revision 1 Found Samples for SDK API 19, revision 6 Found Samples for SDK API 20, revision 3 Found Samples for SDK API 21, revision 4 Found Samples for SDK API 22, revision 5 Found Android SDK Platform-tools, revision 22 Found Android SDK Build-tools, revision 17 (Obsolete) Found Android SDK Build-tools, revision 18.0.1 (Obsolete) Found Android SDK Build-tools, revision 18.1 (Obsolete) Found Android SDK Build-tools, revision 18.1.1 (Obsolete) Found Android SDK Build-tools, revision 19 (Obsolete) Found Android SDK Build-tools, revision 19.0.1 (Obsolete) Found Android SDK Build-tools, revision 19.0.2 (Obsolete) Found Android SDK Build-tools, revision 19.0.3 (Obsolete) Found Android SDK Build-tools, revision 19.1 Found Android SDK Build-tools, revision 20 Found Android SDK Build-tools, revision 21 (Obsolete) Found Android SDK Build-tools, revision 21.0.1 (Obsolete) Found Android SDK Build-tools, revision 21.0.2 (Obsolete) Found Android SDK Build-tools, revision 21.1 (Obsolete) Found Android SDK Build-tools, revision 21.1.1 (Obsolete) Found Android SDK Build-tools, revision 21.1.2 Found Android SDK Build-tools, revision 22 (Obsolete) Found Android SDK Build-tools, revision 22.0.1 Found Android SDK Tools, revision 24.1.2 Found Documentation for Android SDK, API 22, revision 1 Found Sources for Android SDK, API 14, revision 1 (Obsolete) Found Sources for Android SDK, API 15, revision 2 Found Sources for Android SDK, API 16, revision 2 Found Sources for Android SDK, API 17, revision 1 Found Sources for Android SDK, API 18, revision 1 Found Sources for Android SDK, API 19, revision 2 Found Sources for Android SDK, API 20, revision 1 Found Sources for Android SDK, API 21, revision 1 Found Sources for Android SDK, API 22, revision 1 Fetching URL: https://dl.google.com/android/repository/addon.xml Validate XML: https://dl.google.com/android/repository/addon.xml Parse XML: https://dl.google.com/android/repository/addon.xml Found Google APIs, Android API 3, revision 3 (Obsolete) Found Google APIs, Android API 4, revision 2 (Obsolete) Found Google APIs, Android API 5, revision 1 (Obsolete) Found Google APIs, Android API 6, revision 1 (Obsolete) Found Google APIs, Android API 7, revision 1 (Obsolete) Found Google APIs, Android API 8, revision 2 Found Google APIs, Android API 9, revision 2 (Obsolete) Found Google APIs, Android API 10, revision 2 Found Google APIs, Android API 11, revision 1 (Obsolete) Found Google APIs, Android API 12, revision 1 (Obsolete) Found Google APIs, Android API 13, revision 1 (Obsolete) Found Google APIs, Android API 14, revision 2 (Obsolete) Found Google APIs, Android API 15, revision 2 Found Google APIs, Android API 16, revision 3 Found Google APIs, Android API 17, revision 3 Found Google APIs, Android API 18, revision 3 Found Google APIs (ARM System Image), Android API 19, revision 12 Found Google APIs, Android API 21, revision 1 Found Google APIs, Android API 22, revision 1 Found Google TV Addon, Android API 12, revision 2 (Obsolete) Found Google TV Addon, Android API 13, revision 1 (Obsolete) Found Android Support Library, revision 22 Found Android Support Repository, revision 12 Found Google Repository, revision 16 Found Google Play Licensing Library, revision 2 Found Google Play APK Expansion Library, revision 3 Found Google Play services for Froyo, revision 12 (Obsolete) Found Google Play services, revision 23 Found Google USB Driver, revision 11 Found Google Play Billing Library, revision 5 Found Google AdMob Ads SDK, revision 11 (Obsolete) Found Google Analytics App Tracking SDK, revision 3 (Obsolete) Found Google Web Driver, revision 2 Found Google Cloud Messaging for Android Library, revision 3 (Obsolete) Found Android Auto API Simulators, revision 1 Fetching URL: https://dl.google.com/android/repository/addon-6.xml Validate XML: https://dl.google.com/android/repository/addon-6.xml Parse XML: https://dl.google.com/android/repository/addon-6.xml Found Android Support Library, revision 19.1 Fetching URL: https://dl-ssl.google.com/glass/gdk/addon.xml Fetching URL: https://dl.google.com/android/repository/extras/intel/addon.xml Validate XML: https://dl.google.com/android/repository/extras/intel/addon.xml Parse XML: https://dl.google.com/android/repository/extras/intel/addon.xml Found Intel x86 Emulator Accelerator (HAXM installer), revision 5.3 Fetching URL: https://dl.google.com/android/repository/sys-img/android/sys-img.xml Validate XML: https://dl.google.com/android/repository/sys-img/android/sys-img.xml Parse XML: https://dl.google.com/android/repository/sys-img/android/sys-img.xml Found ARM EABI v7a System Image, Android API 14, revision 2 (Obsolete) Found ARM EABI v7a System Image, Android API 15, revision 2 Found ARM EABI v7a System Image, Android API 16, revision 3 Found ARM EABI v7a System Image, Android API 17, revision 2 Found ARM EABI v7a System Image, Android API 18, revision 2 Found ARM EABI v7a System Image, Android API 19, revision 2 Found ARM EABI v7a System Image, Android API 21, revision 1 Found Intel x86 Atom System Image, Android API 10, revision 2 Found Intel x86 Atom System Image, Android API 15, revision 1 Found Intel x86 Atom System Image, Android API 16, revision 1 Found Intel x86 Atom System Image, Android API 17, revision 1 Found Intel x86 Atom System Image, Android API 18, revision 1 Found Intel x86 Atom System Image, Android API 19, revision 2 Found Intel x86 Atom System Image, Android API 21, revision 1 Found Intel x86 Atom_64 System Image, Android API 21, revision 1 Found Intel x86 Atom System Image, Android API 22, revision 1 Found Intel x86 Atom_64 System Image, Android API 22, revision 1 Found ARM EABI v7a System Image, Android API 22, revision 1 Found MIPS System Image, Android API 15, revision 1 Found MIPS System Image, Android API 16, revision 4 Found MIPS System Image, Android API 17, revision 1 Fetching URL: https://dl.google.com/android/repository/sys-img/android-wear/sys-img.xml Validate XML: https://dl.google.com/android/repository/sys-img/android-wear/sys-img.xml Parse XML: https://dl.google.com/android/repository/sys-img/android-wear/sys-img.xml Found Android Wear ARM EABI v7a System Image, Android API 20, revision 4 Found Android Wear Intel x86 Atom System Image, Android API 20, revision 4 Found Android Wear ARM EABI v7a System Image, Android API 21, revision 2 Found Android Wear Intel x86 Atom System Image, Android API 21, revision 2 Fetching URL: https://dl.google.com/android/repository/sys-img/android-tv/sys-img.xml Validate XML: https://dl.google.com/android/repository/sys-img/android-tv/sys-img.xml Parse XML: https://dl.google.com/android/repository/sys-img/android-tv/sys-img.xml Found Android TV Intel x86 Atom System Image, Android API 21, revision 1 Found Android TV ARM EABI v7a System Image, Android API 21, revision 1 Found Android TV Intel x86 Atom System Image, Android API 22, revision 1 Found Android TV ARM EABI v7a System Image, Android API 22, revision 1 Fetching URL: https://dl.google.com/android/repository/sys-img/google_apis/sys-img.xml Validate XML: https://dl.google.com/android/repository/sys-img/google_apis/sys-img.xml Parse XML: https://dl.google.com/android/repository/sys-img/google_apis/sys-img.xml Found Google APIs Intel x86 Atom System Image, Google Inc. API 21, revision 4 Found Google APIs Intel x86 Atom_64 System Image, Google Inc. API 21, revision 4 Found Google APIs ARM EABI v7a System Image, Google Inc. API 21, revision 4 Found Google APIs Intel x86 Atom System Image, Google Inc. API 22, revision 1 Found Google APIs ARM EABI v7a System Image, Google Inc. API 22, revision 1 Found Google APIs Intel x86 Atom_64 System Image, Google Inc. API 22, revision 1 Fetching URL: https://dl.google.com/android/repository/sys-img/x86/addon-x86.xml Validate XML: https://dl.google.com/android/repository/sys-img/x86/addon-x86.xml Parse XML: https://dl.google.com/android/repository/sys-img/x86/addon-x86.xml Found Google APIs (x86 System Image), Android API 19, revision 12 Done loading packages. Fetching https://dl.google.com/android/repository/addons_list-2.xml Validate XML Parse XML Fetched Add-ons List successfully Fetching URL: https://dl.google.com/android/repository/repository-10.xml Validate XML: https://dl.google.com/android/repository/repository-10.xml Parse XML: https://dl.google.com/android/repository/repository-10.xml Found SDK Platform Android 1.1, API 2, revision 1 (Obsolete) Found SDK Platform Android 1.5, API 3, revision 4 (Obsolete) Found SDK Platform Android 1.6, API 4, revision 3 (Obsolete) Found SDK Platform Android 2.0, API 5, revision 1 (Obsolete) Found SDK Platform Android 2.0.1, API 6, revision 1 (Obsolete) Found SDK Platform Android 2.1, API 7, revision 3 (Obsolete) Found SDK Platform Android 2.2, API 8, revision 3 Found SDK Platform Android 2.3.1, API 9, revision 2 (Obsolete) Found SDK Platform Android 2.3.3, API 10, revision 2 Found SDK Platform Android 3.0, API 11, revision 2 (Obsolete) Found SDK Platform Android 3.1, API 12, revision 3 (Obsolete) Found SDK Platform Android 3.2, API 13, revision 1 (Obsolete) Found SDK Platform Android 4.0, API 14, revision 4 (Obsolete) Found SDK Platform Android 4.0.3, API 15, revision 5 Found SDK Platform Android 4.1.2, API 16, revision 5 Found SDK Platform Android 4.2.2, API 17, revision 3 Found SDK Platform Android 4.3.1, API 18, revision 3 Found SDK Platform Android 4.4.2, API 19, revision 4 Found SDK Platform Android 4.4W.2, API 20, revision 2 Found SDK Platform Android 5.0.1, API 21, revision 2 Found SDK Platform Android 5.1.1, API 22, revision 2 Found Samples for SDK API 7, revision 1 (Obsolete) Found Samples for SDK API 8, revision 1 Found Samples for SDK API 9, revision 1 (Obsolete) Found Samples for SDK API 10, revision 1 Found Samples for SDK API 11, revision 1 (Obsolete) Found Samples for SDK API 12, revision 1 (Obsolete) Found Samples for SDK API 13, revision 1 (Obsolete) Found Samples for SDK API 14, revision 2 (Obsolete) Found Samples for SDK API 15, revision 2 Found Samples for SDK API 16, revision 1 Found Samples for SDK API 17, revision 1 Found Samples for SDK API 18, revision 1 Found Samples for SDK API 19, revision 6 Found Samples for SDK API 20, revision 3 Found Samples for SDK API 21, revision 4 Found Samples for SDK API 22, revision 5 Found Android SDK Platform-tools, revision 22 Found Android SDK Build-tools, revision 17 (Obsolete) Found Android SDK Build-tools, revision 18.0.1 (Obsolete) Found Android SDK Build-tools, revision 18.1 (Obsolete) Found Android SDK Build-tools, revision 18.1.1 (Obsolete) Found Android SDK Build-tools, revision 19 (Obsolete) Found Android SDK Build-tools, revision 19.0.1 (Obsolete) Found Android SDK Build-tools, revision 19.0.2 (Obsolete) Found Android SDK Build-tools, revision 19.0.3 (Obsolete) Found Android SDK Build-tools, revision 19.1 Found Android SDK Build-tools, revision 20 Found Android SDK Build-tools, revision 21 (Obsolete) Found Android SDK Build-tools, revision 21.0.1 (Obsolete) Found Android SDK Build-tools, revision 21.0.2 (Obsolete) Found Android SDK Build-tools, revision 21.1 (Obsolete) Found Android SDK Build-tools, revision 21.1.1 (Obsolete) Found Android SDK Build-tools, revision 21.1.2 Found Android SDK Build-tools, revision 22 (Obsolete) Found Android SDK Build-tools, revision 22.0.1 Found Android SDK Tools, revision 24.1.2 Found Documentation for Android SDK, API 22, revision 1 Found Sources for Android SDK, API 14, revision 1 (Obsolete) Found Sources for Android SDK, API 15, revision 2 Found Sources for Android SDK, API 16, revision 2 Found Sources for Android SDK, API 17, revision 1 Found Sources for Android SDK, API 18, revision 1 Found Sources for Android SDK, API 19, revision 2 Found Sources for Android SDK, API 20, revision 1 Found Sources for Android SDK, API 21, revision 1 Found Sources for Android SDK, API 22, revision 1 Fetching URL: https://dl.google.com/android/repository/addon.xml Validate XML: https://dl.google.com/android/repository/addon.xml Parse XML: https://dl.google.com/android/repository/addon.xml Found Google APIs, Android API 3, revision 3 (Obsolete) Found Google APIs, Android API 4, revision 2 (Obsolete) Found Google APIs, Android API 5, revision 1 (Obsolete) Found Google APIs, Android API 6, revision 1 (Obsolete) Found Google APIs, Android API 7, revision 1 (Obsolete) Found Google APIs, Android API 8, revision 2 Found Google APIs, Android API 9, revision 2 (Obsolete) Found Google APIs, Android API 10, revision 2 Found Google APIs, Android API 11, revision 1 (Obsolete) Found Google APIs, Android API 12, revision 1 (Obsolete) Found Google APIs, Android API 13, revision 1 (Obsolete) Found Google APIs, Android API 14, revision 2 (Obsolete) Found Google APIs, Android API 15, revision 2 Found Google APIs, Android API 16, revision 3 Found Google APIs, Android API 17, revision 3 Found Google APIs, Android API 18, revision 3 Found Google APIs (ARM System Image), Android API 19, revision 12 Found Google APIs, Android API 21, revision 1 Found Google APIs, Android API 22, revision 1 Found Google TV Addon, Android API 12, revision 2 (Obsolete) Found Google TV Addon, Android API 13, revision 1 (Obsolete) Found Android Support Library, revision 22 Found Android Support Repository, revision 12 Found Google Repository, revision 16 Found Google Play Licensing Library, revision 2 Found Google Play APK Expansion Library, revision 3 Found Google Play services for Froyo, revision 12 (Obsolete) Found Google Play services, revision 23 Found Google USB Driver, revision 11 Found Google Play Billing Library, revision 5 Found Google AdMob Ads SDK, revision 11 (Obsolete) Found Google Analytics App Tracking SDK, revision 3 (Obsolete) Found Google Web Driver, revision 2 Found Google Cloud Messaging for Android Library, revision 3 (Obsolete) Found Android Auto API Simulators, revision 1 Fetching URL: https://dl.google.com/android/repository/addon-6.xml Validate XML: https://dl.google.com/android/repository/addon-6.xml Parse XML: https://dl.google.com/android/repository/addon-6.xml Found Android Support Library, revision 19.1 Fetching URL: https://dl-ssl.google.com/glass/gdk/addon.xml Failed to fetch URL https://dl-ssl.google.com/glass/gdk/addon.xml, reason: HttpHostConnect Connection to https://dl-ssl.google.com refused Fetching URL: https://dl.google.com/android/repository/extras/intel/addon.xml Validate XML: https://dl.google.com/android/repository/extras/intel/addon.xml Parse XML: https://dl.google.com/android/repository/extras/intel/addon.xml Found Intel x86 Emulator Accelerator (HAXM installer), revision 5.3 Fetching URL: https://dl.google.com/android/repository/sys-img/android/sys-img.xml Validate XML: https://dl.google.com/android/repository/sys-img/android/sys-img.xml Parse XML: https://dl.google.com/android/repository/sys-img/android/sys-img.xml Found ARM EABI v7a System Image, Android API 14, revision 2 (Obsolete) Found ARM EABI v7a System Image, Android API 15, revision 2 Found ARM EABI v7a System Image, Android API 16, revision 3 Found ARM EABI v7a System Image, Android API 17, revision 2 Found ARM EABI v7a System Image, Android API 18, revision 2 Found ARM EABI v7a System Image, Android API 19, revision 2 Found ARM EABI v7a System Image, Android API 21, revision 1 Found Intel x86 Atom System Image, Android API 10, revision 2 Found Intel x86 Atom System Image, Android API 15, revision 1 Found Intel x86 Atom System Image, Android API 16, revision 1 Found Intel x86 Atom System Image, Android API 17, revision 1 Found Intel x86 Atom System Image, Android API 18, revision 1 Found Intel x86 Atom System Image, Android API 19, revision 2 Found Intel x86 Atom System Image, Android API 21, revision 1 Found Intel x86 Atom_64 System Image, Android API 21, revision 1 Found Intel x86 Atom System Image, Android API 22, revision 1 Found Intel x86 Atom_64 System Image, Android API 22, revision 1 Found ARM EABI v7a System Image, Android API 22, revision 1 Found MIPS System Image, Android API 15, revision 1 Found MIPS System Image, Android API 16, revision 4 Found MIPS System Image, Android API 17, revision 1 Fetching URL: https://dl.google.com/android/repository/sys-img/android-wear/sys-img.xml Validate XML: https://dl.google.com/android/repository/sys-img/android-wear/sys-img.xml Parse XML: https://dl.google.com/android/repository/sys-img/android-wear/sys-img.xml Found Android Wear ARM EABI v7a System Image, Android API 20, revision 4 Found Android Wear Intel x86 Atom System Image, Android API 20, revision 4 Found Android Wear ARM EABI v7a System Image, Android API 21, revision 2 Found Android Wear Intel x86 Atom System Image, Android API 21, revision 2 Fetching URL: https://dl.google.com/android/repository/sys-img/android-tv/sys-img.xml Validate XML: https://dl.google.com/android/repository/sys-img/android-tv/sys-img.xml Parse XML: https://dl.google.com/android/repository/sys-img/android-tv/sys-img.xml Found Android TV Intel x86 Atom System Image, Android API 21, revision 1 Found Android TV ARM EABI v7a System Image, Android API 21, revision 1 Found Android TV Intel x86 Atom System Image, Android API 22, revision 1 Found Android TV ARM EABI v7a System Image, Android API 22, revision 1 Fetching URL: https://dl.google.com/android/repository/sys-img/google_apis/sys-img.xml Validate XML: https://dl.google.com/android/repository/sys-img/google_apis/sys-img.xml Parse XML: https://dl.google.com/android/repository/sys-img/google_apis/sys-img.xml Found Google APIs Intel x86 Atom System Image, Google Inc. API 21, revision 4 Found Google APIs Intel x86 Atom_64 System Image, Google Inc. API 21, revision 4 Found Google APIs ARM EABI v7a System Image, Google Inc. API 21, revision 4 Found Google APIs Intel x86 Atom System Image, Google Inc. API 22, revision 1 Found Google APIs ARM EABI v7a System Image, Google Inc. API 22, revision 1 Found Google APIs Intel x86 Atom_64 System Image, Google Inc. API 22, revision 1 Fetching URL: https://dl.google.com/android/repository/sys-img/x86/addon-x86.xml Validate XML: https://dl.google.com/android/repository/sys-img/x86/addon-x86.xml Parse XML: https://dl.google.com/android/repository/sys-img/x86/addon-x86.xml Found Google APIs (x86 System Image), Android API 19, revision 12 Done loading packages.

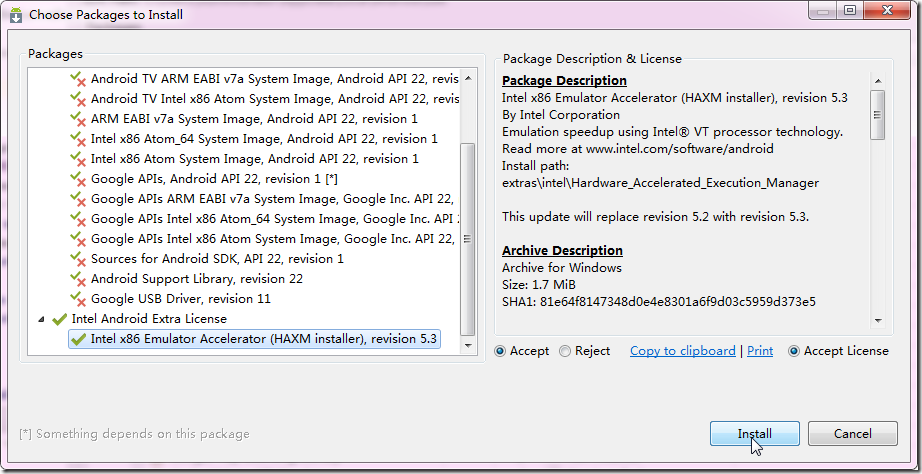

3.去下载和安装HAX。

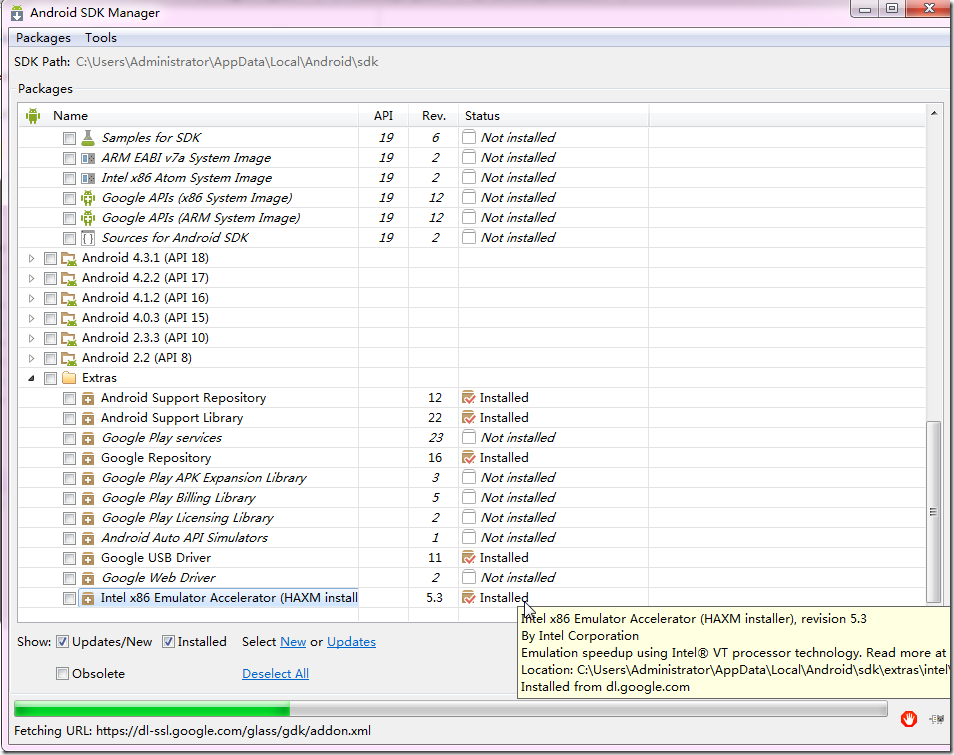

然后安装后,显示已安装:
4.结果第二次去运行虚拟机,结果还是同样提示:
C:\Users\Administrator\AppData\Local\Android\sdk\tools\emulator.exe -avd Nexus_5_API_21_x86 -netspeed full -netdelay none emulator: device fd:1236 HAX is not working and emulator runs in emulation mode emulator: The memory needed by this VM exceeds the driver limit. emulator: warning: opening audio input failed creating window 61 83 462 820 emulator: emulator window was out of view and was recentered |
关闭Android Studio后重新去试试。
然后果然可以了,显示HAX工作了:
C:\Users\Administrator\AppData\Local\Android\sdk\tools\emulator.exe -avd 3_7_WVGA_NexusOne_API_21 -netspeed full -netdelay none emulator: device fd:1204 HAX is working and emulator runs in fast virt mode emulator: warning: opening audio input failed creating window 0 0 480 800 |
【总结】
Android Studio中显示:
HAX is not working and emulator runs in emulation mode
时,去
Tools->Android->SDK Manager
然后选中
Extras->Intel X86 Emulator Accelerator (HAXM installer)
并安装即可。
记得如果HAX效果没生效,则试试重启Android Studio试试,或许就可以了。
相对来说:和之前的Eclipse+ADT时代,要先后自己手动下载HAX相关工具并安装和配置,的做法相比,Android Studio中只需要选中并安装即可搞定,要方便多了。
