【已解决】Antd Pro的ReactJS中实现既可以编辑单元格值又可以拖动排序的表格

拖动 crifan 2056浏览 0评论
折腾:
【未解决】AntD Pro中支持剧本剧本编写时拖动排序单个对话
期间,已实现可以拖动的表格了:
但是此Antd Pro的Reactjs中,是基于react-dnd实现的可拖动实现排序的Table的cell,是不可编辑的
此处希望可以实时编辑。
记得之前Antd Pro中Table的cell,是支持实时编辑的
需要想办法加进来这个功能,且同时注意不要和现有的react-dnd冲突了。
如果实在不行,再去考虑是否可以做成:
通过额外按钮实现:
可编辑的Table的cell
只读的但是可以拖动排序的table的cell
之前去切换,也算可以实现想要的效果。
先去试试,参考:
表格 Table – Ant Design – 可编辑行
集成进来看看效果
不过刚发现,好像可编辑行,不支持当内容超过宽度就自动换行:
而可编辑单元格,是支持的:
所以还是换成可编辑单元格试试
但是看起来两种row:
1
2
3
4
5
6
7
8
9
10
11
12
const DragableBodyRow = DropTarget('row', rowTarget, (connect, monitor) => ({
  connectDropTarget: connect.dropTarget(),
  isOver: monitor.isOver(),
  sourceClientOffset: monitor.getSourceClientOffset(),
}))(
  DragSource('row', rowSource, (connect, monitor) => ({
    connectDragSource: connect.dragSource(),
    dragRow: monitor.getItem(),
    clientOffset: monitor.getClientOffset(),
    initialClientOffset: monitor.getInitialClientOffset(),
  }))(BodyRow)
);
和:
1
2
3
4
5
const EditableRow = ({ form, index, ...props }) => (
  <EditableContext.Provider value={form}>
    <tr {...props} />
  </EditableContext.Provider>
);
貌似很难合并到一起啊
看来要单独切换: 可拖动状态 和 可编辑状态
不过要先去合并进来 可以编辑的cell
【已解决】Reactjs的Antd Pro中实现表格中支持可编辑的单元格
然后再去想办法,实现在可编辑和可拖动模式之前切换
【总结】

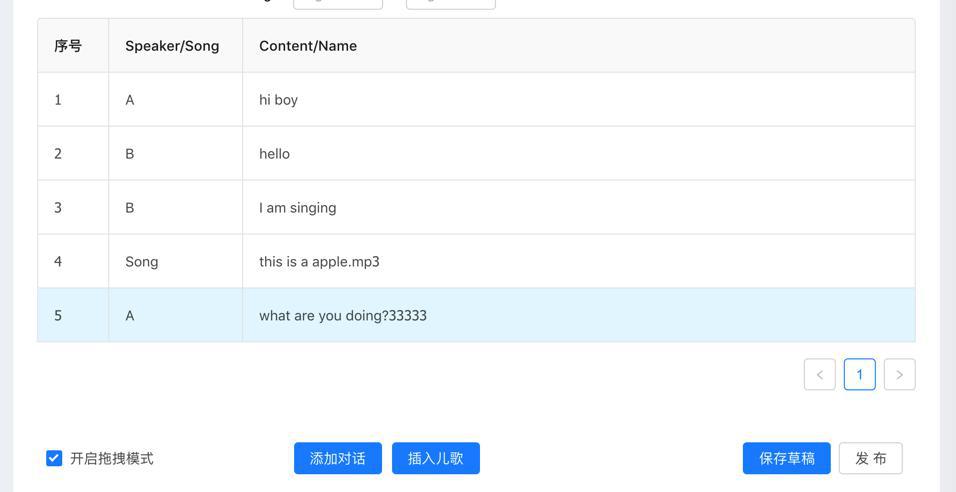

最终,用如下代码实现了 编辑模式 和 拖拽模式 之间切换:
/src/routes/Script/ScriptCreate.js
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
import React, { PureComponent } from 'react'
import { connect } from 'dva'
import { routerRedux } from 'dva/router'
import {
  Col,
  Form,
  Input,
  Button,
  Card,
  InputNumber,
  Select,
  message,
  Modal,
  Checkbox,
} from 'antd'
import PageHeaderLayout from '../../layouts/PageHeaderLayout'
import MongodbFileList from './MongodbFileList'

import DragableTable from '../../components/DragableTable'
import EditableTable from '../../components/EditableTable'

const FormItem = Form.Item;
const InputGroup = Input.Group;
const { TextArea } = Input;
const { Option } = Select;


@connect(({ loading, script, topic }) => ({
  submitting: loading.effects['script/submitRegularForm'],
  script,
  topic,
}))
@Form.create()
export default class ScriptCreate extends PureComponent {
  constructor(props) {
    super(props)

    this.onDialogListChange = this.onDialogListChange.bind(this)
    this.onEditableCellChange = this.onEditableCellChange.bind(this)
    this.onDragableCheckChange = this.onDragableCheckChange.bind(this)

    this.state = {
      // dialogList: [],
      dialogList: this.demoItemList,
      dragableChecked: false,

      speakers: [],
      contents: [],
      audioIDs:[],
      modalVisible: false,
      first_level_topic: [],
      isSubmitting: false,
      isDisableSubmit: false,
    }
  }

  /* eslint-disable */
  columns = [
    {
      title: '序号',
      width: "8%",
      editable: false,
      dataIndex: 'number',
      key: 'number',
      // rowKey: 'number',
      // fixed: 'left',
      render(text, record, index) {
        return index + 1;
      },
    },
    {
      width: "15%",
      editable: true,
      title: 'Speaker/Song',
      dataIndex: 'speakerOrSong',
      key: 'speakerOrSong',
    },
    {
      width: "75%",
      editable: true,
      title: 'Content/Name',
      dataIndex: 'contentOrName',
      key: 'contentOrName',
    },
  ]


  demoItemList = [
    {
      key: '1',
      speakerOrSong: 'A',
      contentOrName: 'hi boy',
      editable: true,
    },
    {
      key: '2',
      speakerOrSong: 'B',
      contentOrName: 'hello',
      editable: true,
    },
    {
      key: '3',
      speakerOrSong: 'A',
      contentOrName: 'what are you doing?',
      editable: true,
    },
    {
      key: '4',
      speakerOrSong: 'B',
      contentOrName: 'I am singing',
      editable: true,
    },
    {
      key: '5',
      speakerOrSong: 'Song',
      contentOrName: 'this is a apple.mp3',
      editable: false,
    },
  ]

  componentDidMount() {
...
  }
...

  handleAddDialog(){
    console.log("handleAddDialog")

    const curDialogList = this.state.dialogList
    console.log("curDialogList=", curDialogList)

    let newDialogList = curDialogList

    const curDialogNum = curDialogList.length
    const newDialogNum = curDialogNum + 1
    let newDialog = {
      key: `${newDialogNum}`,
      speakerOrSong: `speaker ${newDialogNum}`,
      contentOrName: `content ${newDialogNum}`,
    }
    console.log("newDialog=", newDialog)

    newDialogList.push(newDialog)
    console.log("newDialogList=", newDialogList)

    this.setState({ dialogList: newDialogList})
    console.log("this.state.dialogList=", this.state.dialogList)

    // Note: due to use redux manage state, so componentWillReceiveProps not work
    // so here need forceUpdate to update ui
    this.forceUpdate()
  }

  onDialogListChange(newDialogList){
    console.log("onDialogListChange: newDialogList=", newDialogList)

    console.log("before change: this.state.dialogList=", this.state.dialogList)
    this.setState({dialogList: newDialogList})
    console.log("after  change: this.state.dialogList=", this.state.dialogList)
  }

  onEditableCellChange(newDialogList){
    console.log("onEditableCellChange: newDialogList=", newDialogList)

    console.log("before change: this.state.dialogList=", this.state.dialogList)
    this.setState({dialogList: newDialogList})
    console.log("after  change: this.state.dialogList=", this.state.dialogList)
  }
...

  onDragableCheckChange(e) {
    console.log('onDragableCheckChange: e.target.checked=', e.target.checked);
    this.setState({
      dragableChecked: e.target.checked,
    })
  }

  render() {
    const { submitting, form } = this.props;
    const topicList = this.props.topic.topics;
    const { getFieldDecorator } = this.props.form;

    const firstLevelOptions = Object.keys(topicList).map(first => <Option key={first}>{first}</Option>);
    const secondLevelOptions = this.state.first_level_topic.map(second => <Option key={second}>{second}</Option>);
...

    return (
      <PageHeaderLayout
        title="新建剧本"
      >
        <Card bordered={false}>
          <Form style={{ marginTop: 8 }} hideRequiredMark>
            ...
            </FormItem>

            {/* {this.buildDialog()} */}

            {
              this.state.dragableChecked ? (
                <DragableTable
                  columns={this.columns}
                  itemList={this.state.dialogList}
                  onDragableListChange={this.onDialogListChange}
                />
              ) : (
                <EditableTable
                  columns={this.columns}
                  itemList={this.state.dialogList}
                  onEditableCellChange={this.onEditableCellChange}
                  form={this.props.form}
                />
              )
            }

            <FormItem {...submitFormLayout} style={{ marginTop: 32 }}>

              <Checkbox
                style={{ marginLeft: "1%" }}
                checked={this.state.dragableChecked}
                onChange={this.onDragableCheckChange}
              >
                开启拖拽模式
              </Checkbox>

              ...
            </FormItem>
          </Form>
        </Card>
      </PageHeaderLayout>
    );
  }
}
可编辑:
/src/components/EditableTable/index.js
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
import React from 'react'
import { EditableFormRow, EditableCell } from '../EditableCell'
import { Table } from 'antd'

export default class EditableTable extends
React.Component
 {
  constructor(props){
    super(props)
    console.log("EditableTable constructor: props=", props)

    console.log("this.props.columns=", this.props.columns)
    console.log("this.props.itemList=", this.props.itemList)
    console.log("this.props.onEditableCellChange=", this.props.onEditableCellChange)

    this.handleSaveEditableCell = this.handleSaveEditableCell.bind(this)

    this.state.itemList = this.props.itemList;
    this.state.columns = this.props.columns;
  }

  state = {
    columns: [],
    itemList: [],
  }

  // componentWillReceiveProps(nextProps){
  //   console.log("EditableTable componentWillReceiveProps: nextProps=", nextProps)
  //   console.log("this.props.itemList=", this.props.itemList)
  //   if (this.props.itemList) {
  //     this.setState({itemList: this.props.itemList})
  //     console.log("updated this.state.itemList=", this.state.itemList)
  //   }
  // }

  components = {
    body: {
      row: EditableFormRow,
      cell: EditableCell,
    },
  }

  handleSaveEditableCell = (row) => {
    console.log("handleSaveEditableCell: row=", row)

    const newItemList = [...this.state.itemList]
    console.log("newItemList=", newItemList)
    const index = newItemList.findIndex(item => row.key === item.key)
    console.log("index=", index)
    const item = newItemList[index]
    console.log("item=", item)
    newItemList.splice(index, 1, {
      ...item,
      ...row,
    })
    console.log("newItemList=", newItemList)
    this.setState({ itemList: newItemList })
    console.log("after: this.state.itemList=", this.state.itemList)

    this.props.onEditableCellChange(this.state.itemList)
    // console.log("newItemList=", newItemList)
    // this.props.onEditableCellChange(newItemList)
  }

  render() {
    console.log("EditableTable render: this.state.itemList=", this.state.itemList)

    const curColumns = this.state.columns.map((col) => {
      console.log("curColumns: col=", col)

      if (!col.editable) {
        return col
      }

      return {
        ...col,
        onCell: (record) => {

          /*
          * Note:
          * 1. each cell is editable is set by:
          * first priority: cell editable by each item/cell in this.props.itemList
          * then check: column editable by each column in this.props.columns
          */
          let cellIsEditable
          if (record.editable !== undefined) {
            cellIsEditable = record.editable
          } else {
            cellIsEditable = col.editable
          }
          console.log("cellIsEditable=", cellIsEditable, ", record=", record)

          return {
            record,
            editable: cellIsEditable,
            dataIndex: col.dataIndex,
            title: col.title,
            form: this.props.form,
            handleSave: this.handleSaveEditableCell,
          }
        },
      }
    })

    return (
      <Table
        bordered
        columns={curColumns}
        dataSource={this.state.itemList}
        components={
this.components
}
        onRow={(record, index) => ({
          index,
        })}
      />
    );
  }
}

EditableTable.defaultProps = {
  itemList: [],
  onEditableCellChange: (newItemList) => {},
};
/src/components/EditableCell/index.js
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
import React, { PureComponent } from 'react';
import styles from './index.less';
import { Form, Input } from 'antd';

const FormItem = Form.Item;
const EditableContext = React.createContext();

const EditableRow = ({ form, index, ...props }) => (
  <EditableContext.Provider value={form}>
    <tr {...props} />
  </EditableContext.Provider>
);

export const EditableFormRow = Form.create()(EditableRow);

// export default class EditableCell extends PureComponent {
export class EditableCell extends PureComponent {

  state = {
    editing: false,
  }

  componentDidMount() {
    console.log("EditableCell componentDidMount: this.props.editable", this.props.editable)

    if (this.props.editable) {
      document.addEventListener('click', this.handleClickOutside, true);
    }
  }

  componentWillUnmount() {
    if (this.props.editable) {
      document.removeEventListener('click', this.handleClickOutside, true);
    }
  }

  toggleEdit = () => {
    console.log("toggleEdit=")
    console.log("this.state.editing=", this.state.editing)

    const editing = !this.state.editing;
    this.setState({ editing }, () => {
      if (editing) {
        this.input.focus();
      }
    });
  }

  handleClickOutside = (e) => {
    const { editing } = this.state;
    if (editing && this.cell !== e.target && !this.cell.contains(e.target)) {
      this.save();
    }
  }

  save = () => {
    console.log("save")
    const { record, handleSave } = this.props;
    console.log("record=", record)
    this.form.validateFields((error, values) => {
      console.log("form.validateFields=: error", error, ", values=", values)

      if (error) {
        return
      }
      this.toggleEdit();
      handleSave({ ...record, ...values });
    });
  }

  render() {
    const { editing } = this.state;

    const {
      editable,
      dataIndex,
      title,
      record,
      index,
      // handleSave,
      ...restProps
    } = this.props;

    console.log("editing=", editing, ", editable=", editable, ", record=", record)

    return (
      <td ref={node => (this.cell = node)} {...restProps}>
        {editable ? (
          <EditableContext.Consumer>
            {(form) => {
              console.log("EditableContext.Consumer: form=", form)

              this.form = form;
              return (
                editing ? (
                  <FormItem style={{ margin: 0 }}>
                    {form.getFieldDecorator(dataIndex, {
                      rules: [{
                        required: true,
                        message: `${title} is required.`,
                      }],
                      initialValue: record[dataIndex],
                    })(
                      <Input
                        ref={node => (this.input = node)}
                        onPressEnter={this.save}
                      />
                    )}
                  </FormItem>
                ) : (
                  <div
                    className={styles.editableCellValueWrap}
                    // className={styles.nonEditableCellValueWrap}
                    style={{ paddingRight: 5 }}
                    onClick={this.toggleEdit}
                  >
                    {restProps.children}
                  </div>
                )
              );
            }}
          </EditableContext.Consumer>
        ) : restProps.children}
      </td>
    );
  }
}
/src/components/EditableCell/index.less
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
@import '~antd/lib/style/themes/default.less';

.editable-cell {
  position: relative;
}

// .nonEditableCellValueWrap {
//   padding: 5px 12px;
//   cursor: pointer;
//   background: grey;
// }

.editableCellValueWrap {
  padding: 5px 12px;
  // padding: 2px 4px;
  cursor: pointer;
}

// .editable-row:hover .editableCellValueWrap {
// .editableRow:hover .editableCellValueWrap {
.editableCellValueWrap:hover {
  border: 1px solid #d9d9d9;
  border-radius: 4px;
  padding: 4px 11px;
  // padding: 2px 4px;
}
可拖动:
/src/components/DragableTable/index.js
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
import React from 'react'
import { DragDropContext } from 'react-dnd'
import HTML5Backend from 'react-dnd-html5-backend'
import update from 'immutability-helper'
import DragableBodyRow from '../DragableBodyRow'
import { Table } from 'antd'

@DragDropContext(HTML5Backend)
export default class DragableTable extends
React.Component
 {
  constructor(props){
    super(props)
    console.log("DragableTable constructor: props=", props)

    console.log("this.props.columns=", this.props.columns)
    console.log("this.props.itemList=", this.props.itemList)
    console.log("this.props.onDragableListChange=", this.props.onDragableListChange)

    this.state.itemList = this.props.itemList;
    this.state.columns = this.props.columns;
  }

  state = {
    columns: [],
    itemList: [],
  }

  // componentWillReceiveProps(nextProps){
  //   console.log("DragableTable componentWillReceiveProps: nextProps=", nextProps)
  //   console.log("this.props.itemList=", this.props.itemList)
  //   if (this.props.itemList) {
  //     this.setState({itemList: this.props.itemList})
  //     console.log("updated this.state.itemList=", this.state.itemList)
  //   }
  // }

  components = {
    body: {
      row: DragableBodyRow,
    },
  }

  moveRow = (dragIndex, hoverIndex) => {
    const { itemList } = this.state;
    const dragRow = itemList[dragIndex];

    this.setState(
      update(this.state, {
        itemList: {
          $splice: [[dragIndex, 1], [hoverIndex, 0, dragRow]],
        },
      }),
    )

    console.log("moveRow: this.state.itemList=", this.state.itemList)
    this.props.onDragableListChange(this.state.itemList)
  }

  render() {
    console.log("DragableTable render: this.state.itemList=", this.state.itemList)

    return (
      <Table
        bordered
        columns={this.state.columns}
        dataSource={this.state.itemList}
        components={
this.components
}
        onRow={(record, index) => ({
          index,
          moveRow: this.moveRow,
        })}
      />
    );
  }
}

DragableTable.defaultProps = {
  itemList: [],
  onDragableListChange: (dragSortedList) => {},
};
/src/components/DragableBodyRow/index.js
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
import React from 'react';
import { DragSource, DropTarget } from 'react-dnd';

function dragDirection(
  dragIndex,
  hoverIndex,
  initialClientOffset,
  clientOffset,
  sourceClientOffset,
) {
  const hoverMiddleY = (initialClientOffset.y - sourceClientOffset.y) / 2;
  const hoverClientY = clientOffset.y - sourceClientOffset.y;
  if (dragIndex < hoverIndex && hoverClientY > hoverMiddleY) {
    return 'downward';
  }
  if (dragIndex > hoverIndex && hoverClientY < hoverMiddleY) {
    return 'upward';
  }
}

class BodyRow extends
React.Component
 {
  render() {
    const {
      isOver,
      connectDragSource,
      connectDropTarget,
      moveRow,
      dragRow,
      clientOffset,
      sourceClientOffset,
      initialClientOffset,
      ...restProps
    } = this.props;
    const style = { ...restProps.style, cursor: 'move' };

    let className = restProps.className;
    if (isOver && initialClientOffset) {
      const direction = dragDirection(
        dragRow.index,
        restProps.index,
        initialClientOffset,
        clientOffset,
        sourceClientOffset
      );
      if (direction === 'downward') {
        className += ' drop-over-downward';
      }
      if (direction === 'upward') {
        className += ' drop-over-upward';
      }
    }

    return connectDragSource(
      connectDropTarget(
        <tr
          {...restProps}
          className={className}
          style={style}
        />
      )
    );
  }
}

const rowSource = {
  beginDrag(props) {
    return {
      index: props.index,
    };
  },
};

const rowTarget = {
  drop(props, monitor) {
    const dragIndex = monitor.getItem().index;
    const hoverIndex = props.index;

    // Don't replace items with themselves
    if (dragIndex === hoverIndex) {
      return;
    }

    // Time to actually perform the action
    props.moveRow(dragIndex, hoverIndex);

    // Note: we're mutating the monitor item here!
    // Generally it's better to avoid mutations,
    // but it's good here for the sake of performance
    // to avoid expensive index searches.
    monitor.getItem().index = hoverIndex;
  },
};


// const DragableBodyRow = DropTarget('row', rowTarget, (connect, monitor) => ({
const DragableBodyRow = DropTarget('row', rowTarget, (connect, monitor) => ({
  connectDropTarget: connect.dropTarget(),
  isOver: monitor.isOver(),
  sourceClientOffset: monitor.getSourceClientOffset(),
}))(
  DragSource('row', rowSource, (connect, monitor) => ({
    connectDragSource: connect.dragSource(),
    dragRow: monitor.getItem(),
    clientOffset: monitor.getClientOffset(),
    initialClientOffset: monitor.getInitialClientOffset(),
  }))(BodyRow)
);

export default DragableBodyRow
效果:
去拖动:

转载请注明:在路上 » 【已解决】Antd Pro的ReactJS中实现既可以编辑单元格值又可以拖动排序的表格

发表我的评论
取消评论

表情

Hi,您需要填写昵称和邮箱!

  • 昵称 (必填)
  • 邮箱 (必填)
  • 网址
80 queries in 0.465 seconds, using 22.16MB memory
