    【已解决】antlr v3的lexer的条件性匹配

    ANTLR crifan 3064浏览 0评论

    【背景】

    折腾：

    【记录】将antlr v2的C/C++的preprocess，即cpp.g，转换为antlr v3

    期间，参考之前antlr v2的代码：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    IDENTIFIER @init{
        List define = new ArrayList();
        List foundArgs = new ArrayList();

        String callArg0Text = "";
        String callArg1Text = "";
    } :
        identifier=RAW_IDENTIFIER
        {
            // see if this is a macro argument
            define = (List)defineArgs.get(identifier.getText());
            if (define==null) {
                // see if this is a macro call
                define = (List)defines.get(identifier.getText());
            }
        }
        ( { (define!=null) && (define.size()>1) }? (WS|COMMENT)?
            // take in arguments if macro call requires them
            '('
            callArg0=EXPR
            {
                callArg0Text = callArg0.getText();
                foundArgs.add(callArg0Text);
            }
            ( COMMA callArg1=EXPR
            {
                callArg1Text = callArg1.getText();
                foundArgs.add(callArg1Text);
            }
            )*
            { foundArgs.size()==define.size()-1 }? // better have right amount
            ')'
        | { !((define!=null) && (define.size()>1)) }?
        )

    去实现匹配define被调用的时候或者是普通的ID。

    其中，后来看懂了，是通过：

    ?
    1
    { (define!=null) && (define.size()>1) }?

    去实现，条件性的匹配的，即当define不为空，且size大于1，然后才继续后面的匹配：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    (WS|COMMENT)?
           // take in arguments if macro call requires them
           '('
           callArg0=EXPR
           {
               callArg0Text = callArg0.getText();
               foundArgs.add(callArg0Text);
           }
           ( COMMA callArg1=EXPR
           {
               callArg1Text = callArg1.getText();
               foundArgs.add(callArg1Text);
           }
           )*
           { foundArgs.size()==define.size()-1 }? // better have right amount
           ')'

    而如果不满足该条件，则才匹配或运算符’|’后面的：

    ?
    1
    { !((define!=null) && (define.size()>1)) }?

    【解决过程】

    1.所以，问题转化为，在antlr v3中，如何实现lexer中的条件性匹配。

    2.这人：

    Conditional lexing

    遇到的问题，和我这里类似。

    虽然没有直接的参考答案，但是其中提到了：

    • ({boolExpr}?)：叫做消除二义性/验证性的语法预测disambiguating/validating semantic predicate
    • ({boolExpr}?=>)：才是所需要的gated semantic predicate

    其中的代码：

    ?
    1
    2
    3
    4
    fragment VERSION_COMMENT_TAIL[bool matches_version]:
            {!matches_version}? => ( options { greedy = false; }: . )* '*' '/' { $type = MULTILINE_COMMENT; $channel = 98; }
            | { $type = VERSION_COMMENT; $channel = 98; }
    ;

    给了提示，说明是

    {xxx}? => yyy{do_A} | {do_B}

    的形式。

    和此处很类似。

    3.对于此，官网：

    http://www.antlr2.org/doc/lexer.html

    即antlr v2中的相关解释是：

    DEFINE
    :   {getColumn()==1}? "#define" ID
    ;

    Semantic predicates on the left-edge of single-alternative lexical rules get hoisted into the nextToken prediction mechanism. Adding the predicate to a rule makes it so that it is not a candidate for recognition until the predicate evaluates to true. In this case, the method for DEFINE would never be entered, even if the lookahead predicted #define, if the column > 1.

    也是符合预期的，即：

    对于

    {xxx}? => yyy{do_A}

    中的表达式xxx，如果xxx不满足的话，则是不会去匹配对应的内容的。且一直不会去匹配的，直到找到匹配的。

    而不是原先所要的效果：

    希望当xxx不满足，则就不去匹配 -> 而去匹配或者关系后面的内容。



    4.也参考了antlr v4的官网：

    Semantic Predicates

    expr: ID '(' expr ')' // array reference (ANTLR picks this one)

    | {istype()}? ID '(' expr ')' // ctor-style typecast

    | ID '(' expr ')' // function call

    ;

    和：

    stat: decl | expr ;

    decl: ID ID ;

    expr: {istype()}? ID '(' expr ')' // ctor-style typecast

    | {isfunc()}? ID '(' expr ')' // function call

    ;

    但是还是没有理解透彻。

    因为在antlr v3中，对应的语法：

    ?
    1
    ( { (define!=null) && (define.size()>1) }? (WS|COMMENT)?

    所产生的java代码是：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10

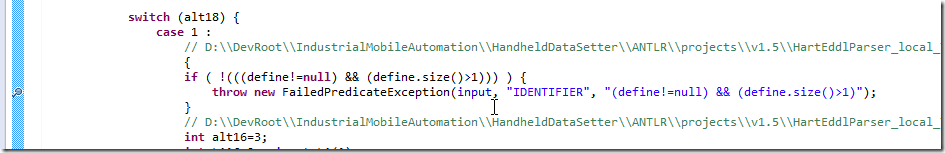

    switch (alt18) {
        case 1 :
            // D:\\DevRoot\\IndustrialMobileAutomation\\HandheldDataSetter\\ANTLR\\projects\\v1.5\\HartEddlParser_local_TFS\\preprocess\\remove_comment\\preprocess.g:174:7: {...}? ( WS | COMMENT )? '(' callArg0= EXPR ( COMMA callArg1= EXPR )* {...}? ')'
            {
            if ( !(( (define!=null) && (define.size()>1) )) ) {
                throw new FailedPredicateException(input, "IDENTIFIER", " (define!=null) && (define.size()>1) ");
            }
            // D:\\DevRoot\\IndustrialMobileAutomation\\HandheldDataSetter\\ANTLR\\projects\\v1.5\\HartEddlParser_local_TFS\\preprocess\\remove_comment\\preprocess.g:174:48: ( WS | COMMENT )?
            int alt16=3;
            int LA16_0 = input.LA(1);

    很明显，是一旦遇到，不满足此处判断：

    (define!=null) && (define.size()>1)

    就会抛出异常，而不会继续执行下去的，

    不会像预期的，继续去判断和匹配，或运算符’|’后面的内容：

    { !((define!=null) && (define.size()>1)) }?

    的。所以很是奇怪。

    5.去把两者顺序调换一下，变为：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    ( { !((define!=null) && (define.size()>1)) }?
    |
    { (define!=null) && (define.size()>1) }? (WS|COMMENT)?
        // take in arguments if macro call requires them
        '('
        callArg0=EXPR
        {
            callArg0Text = callArg0.getText();
            foundArgs.add(callArg0Text);
        }
        ( COMMA callArg1=EXPR
        {
            callArg1Text = callArg1.getText();
            foundArgs.add(callArg1Text);
        }
        )*
        { foundArgs.size()==define.size()-1 }? // better have right amount
        ')'
    )

    试试效果，结果还是无法解决问题。还是原先的效果：

    虽然可以跳过了：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    switch (alt18) {
        case 1 :
            // D:\\DevRoot\\IndustrialMobileAutomation\\HandheldDataSetter\\ANTLR\\projects\\v1.5\\HartEddlParser_local_TFS\\preprocess\\remove_comment\\preprocess.g:174:7: {...}?
            {
            if ( !(( !((define!=null) && (define.size()>1)) )) ) {
                throw new FailedPredicateException(input, "IDENTIFIER", " !((define!=null) && (define.size()>1)) ");
            }
            }
            break;

    但是对于后面的代码：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    if (define!=null) {
        String defineText = (String)define.get(0);

        if (define.size()==1) {
            //only have one value in list -> the defineText is the define para content -> just need replace directly
            setText(defineText);
        } else {
            //add new dict pair: (para, call value)
            for (int i=0;i<foundArgs.size();++i) {
                // treat macro arguments similar to local defines
                List arg = new ArrayList();
                arg.add((String)foundArgs.get(i));
                defineArgs.put( (String)define.get(1+i), arg );
            }

            // save current lexer's state
            SaveStruct ss = new SaveStruct(input);
            includes.push(ss);

            // switch on new input stream
            setCharStream(new ANTLRStringStream(defineText));
            reset();
        }
    }

    还是无法执行，因为define的确是null。

    所以，还是暂时没解决，antlr v3的选择性匹配的问题。

    6.参考：

    Forcing an alternative in ANTLR lexer rule

    去改为 => 的格式的语法：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    ({ (define!=null) && (define.size()>1) }?=> (WS|COMMENT)?
        // take in arguments if macro call requires them
        '('
        callArg0=EXPR
        {
            callArg0Text = callArg0.getText();
            foundArgs.add(callArg0Text);
        }
        ( COMMA callArg1=EXPR
        {
            callArg1Text = callArg1.getText();
            foundArgs.add(callArg1Text);
        }
        )*
        { foundArgs.size()==define.size()-1 }? // better have right amount
        ')'
    | { !((define!=null) && (define.size()>1)) }?=>
    )

    试试，结果生成的代码还是：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    if ( ((LA18_0 >= '\t' && LA18_0 <= '\n')||LA18_0=='\r'||LA18_0==' '||LA18_0=='('||LA18_0=='/') && (((define!=null) && (define.size()>1)))) {
        alt18=1;
    }

    switch (alt18) {
        case 1 :
            // D:\\DevRoot\\IndustrialMobileAutomation\\HandheldDataSetter\\ANTLR\\projects\\v1.5\\HartEddlParser_local_TFS\\preprocess\\remove_comment\\preprocess.g:174:7: {...}? => ( WS | COMMENT )? '(' callArg0= EXPR ( COMMA callArg1= EXPR )* {...}? ')'
            {
            if ( !(((define!=null) && (define.size()>1))) ) {
                throw new FailedPredicateException(input, "IDENTIFIER", "(define!=null) && (define.size()>1)");
            }
            ......
            if ( !(( foundArgs.size()==define.size()-1 )) ) {
                throw new FailedPredicateException(input, "IDENTIFIER", " foundArgs.size()==define.size()-1 ");
            }
            match(')');
            }
            break;
        case 2 :
            // D:\\DevRoot\\IndustrialMobileAutomation\\HandheldDataSetter\\ANTLR\\projects\\v1.5\\HartEddlParser_local_TFS\\preprocess\\remove_comment\\preprocess.g:190:7: {...}? =>
            {
            if ( !(( !((define!=null) && (define.size()>1)) )) ) {
                throw new FailedPredicateException(input, "IDENTIFIER", " !((define!=null) && (define.size()>1)) ");
            }
            }
            break;

    }

    很明显，还是会抛异常的。

    截止目前，感觉貌似对于上述的semantic predicate，貌似只是antlr v2有效？

    而对于antlr v3是含义变了， 变成了预测了 -> 不符合条件，就抛异常 ？？？



    7.后来参考：

    http://www.egtry.com/tools/antlr/gated_semantic_predicate

    其例子：

    Example 2

    give a sequence of digits, the first digit states how many digits to take next.

    antlr grammar
    @init {
  int len=0;
  int count=0;
}
:
  d1=DIGIT {len=Integer.parseInt($d1.text); System.out.println("size of the following digits: "+len);}
  ( { count< len }?=> d2=DIGIT {count++;System.out.println("element: "+$d2.text);}  )+

  (d3=DIGIT {System.out.println("Remaining Digit: "+$d3.text);})*

  '\r'? '\n'
;


DIGIT: '0' .. '9';
    input example
    3123888
    Output
    size of the following digits: 3
element: 1
element: 2
element: 3
Remaining Digit: 8
Remaining Digit: 8
Remaining Digit: 8

    很明显，就是我们所希望的效果：

    可以条件性的判断，然后执行不同的语句，即不会当条件不符合，就乱抛异常的。

    所以，既然人家的可以正常执行，那么就先去测试该语法，生成的代码是否是预期的，不带乱跑异常的。

    测试代码为：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    grammar gatedSynmaticPredicateDemo;

    options{
        language=Java;
        output = AST;
    }

    parseInput
    @init {
      int len=0;
      int count=0;
    }
    :
      d1=DIGIT {len=Integer.parseInt($d1.text); System.out.println("size of the following digits: "+len);}
      ( { count< len }?=> d2=DIGIT {count++;System.out.println("element: "+$d2.text);}  )+

      (d3=DIGIT {System.out.println("Remaining Digit: "+$d3.text);})*

      '\r'? '\n'
    ;


    DIGIT: '0' .. '9';

    然后是找到生成的代码了：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    while (true) {
        int alt1=2;
        int LA1_0 = input.LA(1);
        if ( (LA1_0==DIGIT) ) {
            int LA1_1 = input.LA(2);
            if ( (( count< len )) ) {
                alt1=1;
            }

        }

        switch (alt1) {
        case 1 :
            // D:\\DevRoot\\IndustrialMobileAutomation\\HandheldDataSetter\\ANTLR\\projects\\v1.5\\gatedSynmaticPredicateDemo\\gatedSynmaticPredicateDemo.g:15:5: {...}? =>d2= DIGIT
            {
            if ( !(( count< len )) ) {
                throw new FailedPredicateException(input, "parseInput", " count< len ");
            }
            d2=(Token)match(input,DIGIT,FOLLOW_DIGIT_in_parseInput53);
            d2_tree = (Object)adaptor.create(d2);
            adaptor.addChild(root_0, d2_tree);

            count++;System.out.println("element: "+(d2!=null?d2.getText():null));
            }
            break;

    但是是在gatedSynmaticPredicateDemoParser.java中，而不是Lexer.java中找到的。

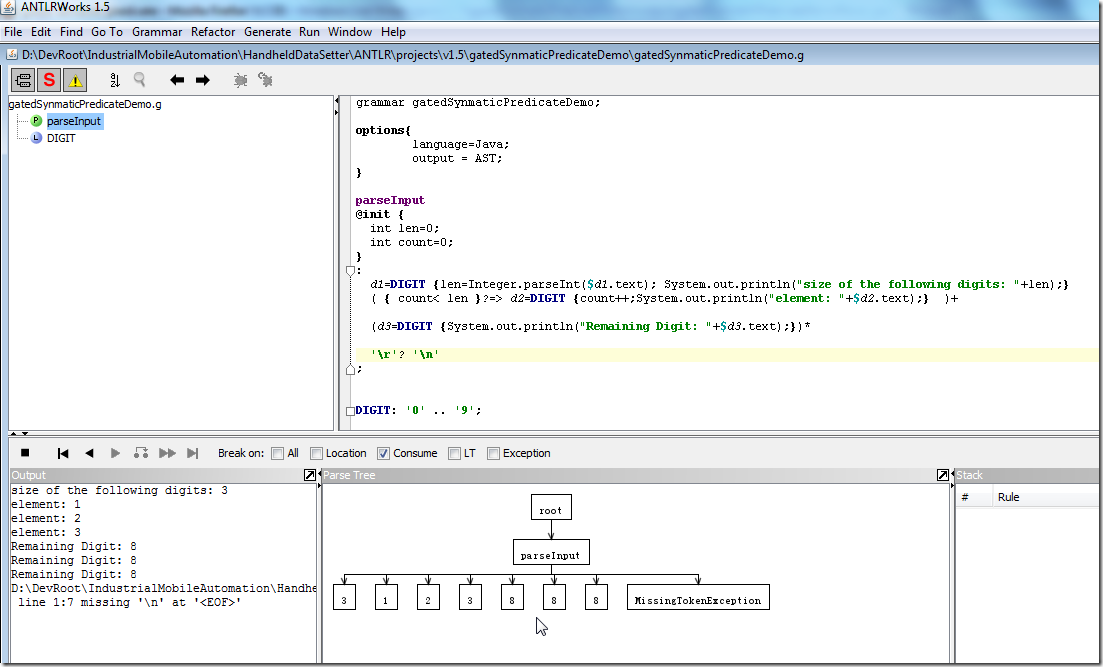

    并且测试结果是正常的：

    gatedSynmaticPredicateDemo grammar test ok

    但是很明显，此处的gated Synmatic Predicate，是写在parse中的，而不是lexer中的。

    8.再参考：

    [antlr-interest] Semantic Predicates in a Lexer

    好像，应该在parser中使用gated Synmatic Predicate。

    9.但是，此处，真正去运行上述的语法：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    ( {(define!=null) && (define.size()>1)}?=> (WS|COMMENT)?
        // take in arguments if macro call requires them
        '('
        callArg0=EXPR
        {
            callArg0Text = callArg0.getText();
            foundArgs.add(callArg0Text);
        }
        ( COMMA callArg1=EXPR
        {
            callArg1Text = callArg1.getText();
            foundArgs.add(callArg1Text);
        }
        )*
        { foundArgs.size()==define.size()-1 }? // better have right amount
        ')'
    | {!((define!=null) && (define.size()>1))}?=>
    )

    所产生的代码：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    // D:\\DevRoot\\IndustrialMobileAutomation\\HandheldDataSetter\\ANTLR\\projects\\v1.5\\HartEddlParser_local_TFS\\preprocess\\remove_comment\\preprocess.g:174:5: ({...}? => ( WS | COMMENT )? '(' callArg0= EXPR ( COMMA callArg1= EXPR )* {...}? ')' |{...}? =>)
    int alt18=2;
    int LA18_0 = input.LA(1);
    if ( ((LA18_0 >= '\t' && LA18_0 <= '\n')||LA18_0=='\r'||LA18_0==' '||LA18_0=='('||LA18_0=='/') && (((define!=null) && (define.size()>1)))) {
        alt18=1;
    }

    switch (alt18) {
        case 1 :
            // D:\\DevRoot\\IndustrialMobileAutomation\\HandheldDataSetter\\ANTLR\\projects\\v1.5\\HartEddlParser_local_TFS\\preprocess\\remove_comment\\preprocess.g:174:7: {...}? => ( WS | COMMENT )? '(' callArg0= EXPR ( COMMA callArg1= EXPR )* {...}? ')'
            {
            if ( !(((define!=null) && (define.size()>1))) ) {
                throw new FailedPredicateException(input, "IDENTIFIER", "(define!=null) && (define.size()>1)");
            }
            ......

            if ( !(( foundArgs.size()==define.size()-1 )) ) {
                throw new FailedPredicateException(input, "IDENTIFIER", " foundArgs.size()==define.size()-1 ");
            }
            match(')');
            }
            break;
        case 2 :
            // D:\\DevRoot\\IndustrialMobileAutomation\\HandheldDataSetter\\ANTLR\\projects\\v1.5\\HartEddlParser_local_TFS\\preprocess\\remove_comment\\preprocess.g:190:7: {...}? =>
            {
            if ( !((!((define!=null) && (define.size()>1)))) ) {
                throw new FailedPredicateException(input, "IDENTIFIER", "!((define!=null) && (define.size()>1))");
            }
            }
            break;

    }

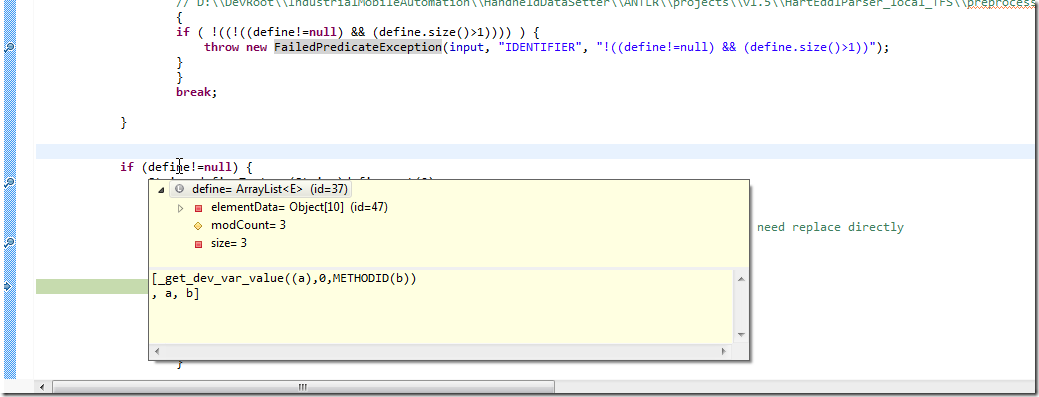

    if (define!=null) {
        String defineText = (String)define.get(0);

        if (define.size()==1) {
            //only have one value in list -> the defineText is the define para content -> just need replace directly
            setText(defineText);
        } else {
            //add new dict pair: (para, call value)
            for (int i=0;i<foundArgs.size();++i) {
                // treat macro arguments similar to local defines
                List arg = new ArrayList();
                arg.add((String)foundArgs.get(i));
                defineArgs.put( (String)define.get(1+i), arg );
            }

            // save current lexer's state
            SaveStruct ss = new SaveStruct(input);
            includes.push(ss);

            // switch on new input stream
            setCharStream(new ANTLRStringStream(defineText));
            reset();
        }
    }

    结果是，我打了几处的断点：

    FailedPredicateException at first check

    FailedPredicateException at second check

    真的是没有执行到，即没有抛异常了。

    然后执行到了，真正要执行的代码的部分：

    can run into real code





    【总结】

    antlr v2的lexer中通过

     {testExpression}?

    （好像叫做validating semantic predicate）

    的方式去实现选择性匹配的代码：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    ( { (define!=null) && (define.size()>1) }? (WS|COMMENT)?
        // take in arguments if macro call requires them
        '('
        callArg0=EXPR
        {
            callArg0Text = callArg0.getText();
            foundArgs.add(callArg0Text);
        }
        ( COMMA callArg1=EXPR
        {
            callArg1Text = callArg1.getText();
            foundArgs.add(callArg1Text);
        }
        )*
        { foundArgs.size()==define.size()-1 }? // better have right amount
        ')'
    | { !((define!=null) && (define.size()>1)) }?
    )

    在antlr v3的lexer中，需要改为：

    {testExpression}?=>

    （好像叫做gated Synmatic Predicate）

    的形式：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    ( {(define!=null) && (define.size()>1)}?=> (WS|COMMENT)?
        // take in arguments if macro call requires them
        '('
        callArg0=EXPR
        {
            callArg0Text = callArg0.getText();
            foundArgs.add(callArg0Text);
        }
        ( COMMA callArg1=EXPR
        {
            callArg1Text = callArg1.getText();
            foundArgs.add(callArg1Text);
        }
        )*
        { foundArgs.size()==define.size()-1 }? // better have right amount
        ')'
    | {!((define!=null) && (define.size()>1))}?=>
    )

    然后才可以真正实现，选择性的匹配对应的内容。

    转载请注明：在路上 » 【已解决】antlr v3的lexer的条件性匹配

    Post Views: 1,158

    与本文相关的文章

    发表我的评论
    取消评论

    表情

    Hi，您需要填写昵称和邮箱！

    • 昵称 (必填)
    • 邮箱 (必填)
    • 网址
    89 queries in 0.367 seconds, using 22.21MB memory
