折腾：
期间，用
carthage update –no-use-binaries Charts
结果编译ChartsRealm-iOS时出错：
licrifandeMacBook-Pro:QorosSales crifan$ carthage update --no-use-binaries Charts *** Fetching Charts *** Cloning MJRefresh *** Fetching SwiftKeychainWrapper *** Fetching Alamofire *** Fetching XCGLogger *** Fetching realm-cocoa *** Fetching Cartography *** Checking out Charts at "v2.2.4" *** xcodebuild output can be found in /var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/carthage-xcodebuild.H5LhwW.log *** Building scheme "Charts-TV" in Charts.xcodeproj *** Building scheme "Charts-OSX" in Charts.xcodeproj *** Building scheme "ChartsRealm-OSX" in ChartsRealm.xcodeproj *** Building scheme "ChartsRealm-iOS" in ChartsRealm.xcodeproj ** BUILD FAILED **
The following build commands failed:
Ld /Users/crifan/Library/Developer/Xcode/DerivedData/ChartsRealm-henokosypuekvqgqvthggjdtnuey/Build/Intermediates/Charts.build/Release-iphoneos/Charts-OSX.build/Objects-normal/armv7/Charts normal armv7
(1 failure)
clang: error: linker command failed with exit code 1 (use -v to see invocation)
A shell task (/usr/bin/xcrun xcodebuild -project /Users/crifan/dev/dev_root/daryun/Projects/Qoros/QorosSales/Sourcecode/QorosSales/Carthage/Checkouts/Charts/ChartsRealm/ChartsRealm.xcodeproj -scheme ChartsRealm-iOS -configuration Release -sdk iphoneos ONLY_ACTIVE_ARCH=NO BITCODE_GENERATION_MODE=bitcode CODE_SIGNING_REQUIRED=NO CODE_SIGN_IDENTITY= CARTHAGE=YES clean build) failed with exit code 65:
** BUILD FAILED **
The following build commands failed:
Ld /Users/crifan/Library/Developer/Xcode/DerivedData/ChartsRealm-henokosypuekvqgqvthggjdtnuey/Build/Intermediates/Charts.build/Release-iphoneos/Charts-OSX.build/Objects-normal/armv7/Charts normal armv7
(1 failure)
看来是：
之前项目中的配置，被改出问题了？

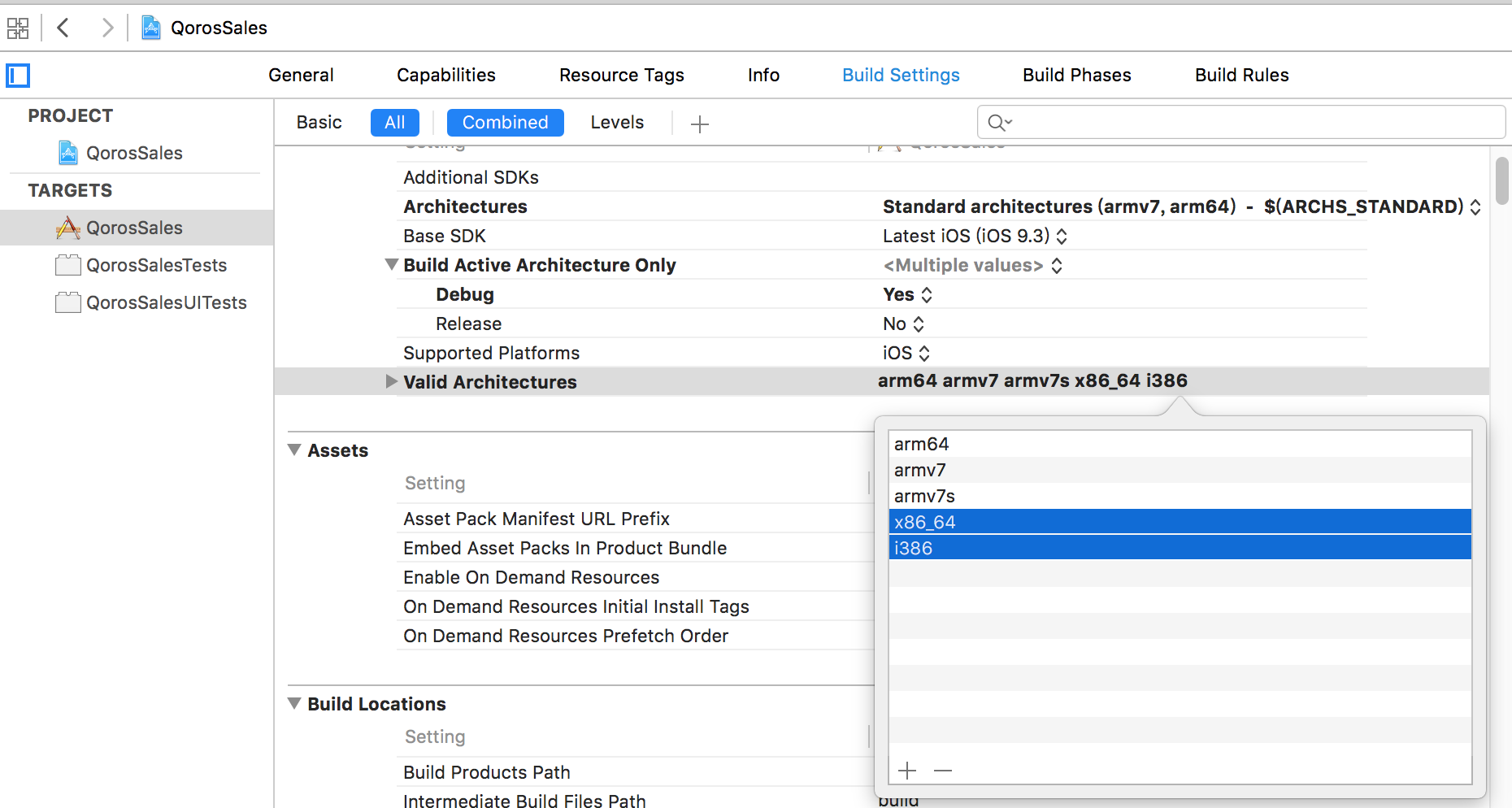

去把x86_64和i386从Valid Architecture中删除掉：
结果出现类似错误：
licrifandeMacBook-Pro:QorosSales crifan$ carthage update --no-use-binaries Charts ***Fetching Charts ***Fetching MJRefresh ***Fetching SwiftKeychainWrapper ***Fetching Alamofire ***Fetching XCGLogger ***Fetching realm-cocoa ***Fetching Cartography ***Checking out Charts at"v2.2.4" ***xcodebuild output can be found in/var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/carthage-xcodebuild.lTqYMm.log ***Building scheme"Charts-TV"in Charts.xcodeproj ***Building scheme"Charts-OSX"in Charts.xcodeproj ***Building scheme"Charts-iOS"in Charts.xcodeproj ***Building scheme"ChartsRealm-iOS"in ChartsRealm.xcodeproj ** BUILD FAILED ** The following build commands failed: Ld /Users/crifan/Library/Developer/Xcode/DerivedData/ChartsRealm-henokosypuekvqgqvthggjdtnuey/Build/Intermediates/Charts.build/Release-iphonesimulator/Charts-OSX.build/Objects-normal/x86_64/Charts normal x86_64 Ld /Users/crifan/Library/Developer/Xcode/DerivedData/ChartsRealm-henokosypuekvqgqvthggjdtnuey/Build/Intermediates/Charts.build/Release-iphonesimulator/Charts-OSX.build/Objects-normal/i386/Charts normal i386 (2 failures) clang: error: linker command failed with exit code 1 (use -v to see invocation) clang: error: linker command failed with exit code 1 (use -v to see invocation) A shell task (/usr/bin/xcrun xcodebuild -project /Users/crifan/dev/dev_root/daryun/Projects/Qoros/QorosSales/Sourcecode/QorosSales/Carthage/Checkouts/Charts/ChartsRealm/ChartsRealm.xcodeproj -scheme ChartsRealm-iOS -configuration Release -sdk iphonesimulator -destination platform=iOS Simulator,id=7015D2CF-8ABF-4584-995F-A2D34C476F7A -destination-timeout 3 ONLY_ACTIVE_ARCH=NO CODE_SIGNING_REQUIRED=NO CODE_SIGN_IDENTITY= CARTHAGE=YES clean build) failed with exit code 65: ** BUILD FAILED ** The following build commands failed: Ld /Users/crifan/Library/Developer/Xcode/DerivedData/ChartsRealm-henokosypuekvqgqvthggjdtnuey/Build/Intermediates/Charts.build/Release-iphonesimulator/Charts-OSX.build/Objects-normal/x86_64/Charts normal x86_64 Ld /Users/crifan/Library/Developer/Xcode/DerivedData/ChartsRealm-henokosypuekvqgqvthggjdtnuey/Build/Intermediates/Charts.build/Release-iphonesimulator/Charts-OSX.build/Objects-normal/i386/Charts normal i386 (2 failures)
感觉，难道是：
还是之前残留的各种Charts？

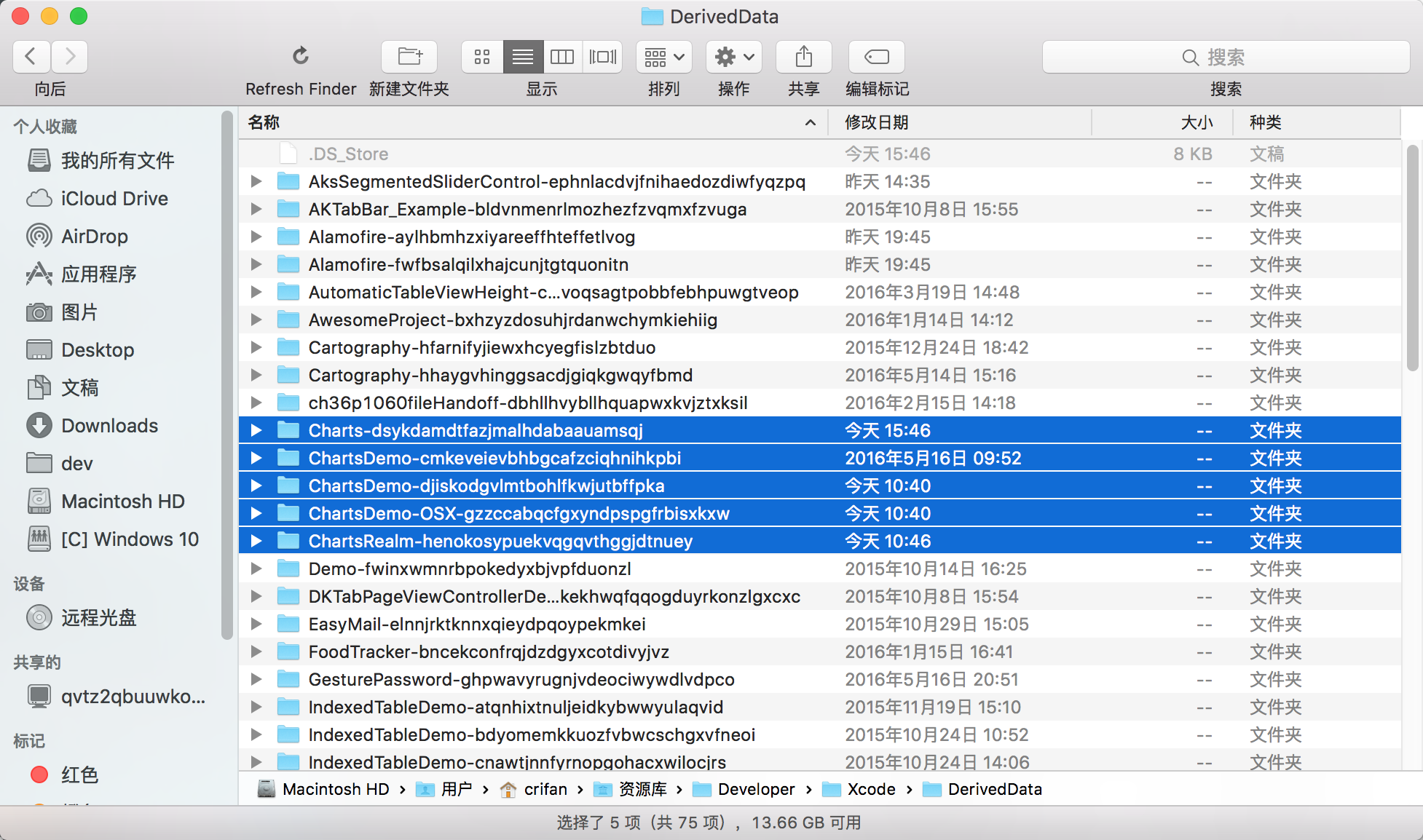

那么去对应路径：
/Users/crifan/Library/Developer/Xcode/DerivedData/
删除掉所有和Charts有关的文件夹和文件？
这样，以后需要对应的库的话，再重新编译。
重新试试：
carthage update –no-use-binaries Charts
licrifandeMacBook-Pro:QorosSales crifan$ carthage update --no-use-binaries Charts *** Fetching Charts *** Fetching MJRefresh *** Fetching SwiftKeychainWrapper *** Fetching Alamofire *** Fetching XCGLogger *** Fetching realm-cocoa *** Fetching Cartography *** Checking out Charts at "v2.2.4" *** xcodebuild output can be found in /var/folders/46/2hjxz38n22n3ypp_5f6_p__00000gn/T/carthage-xcodebuild.WgYYDV.log *** Building scheme "Charts-TV" in Charts.xcodeproj *** Building scheme "Charts-OSX" in Charts.xcodeproj *** Building scheme "Charts-iOS" in Charts.xcodeproj *** Building scheme "ChartsRealm-TV" in ChartsRealm.xcodeproj ** BUILD FAILED ** The following build commands failed: Ld /Users/crifan/Library/Developer/Xcode/DerivedData/ChartsRealm-henokosypuekvqgqvthggjdtnuey/Build/Products/Release-appletvos/Charts.framework/Charts normal arm64 (1 failure) clang: error: linker command failed with exit code 1 (use -v to see invocation) A shell task (/usr/bin/xcrun xcodebuild -project /Users/crifan/dev/dev_root/daryun/Projects/Qoros/QorosSales/Sourcecode/QorosSales/Carthage/Checkouts/Charts/ChartsRealm/ChartsRealm.xcodeproj -scheme ChartsRealm-TV -configuration Release -sdk appletvos ONLY_ACTIVE_ARCH=NO BITCODE_GENERATION_MODE=bitcode CODE_SIGNING_REQUIRED=NO CODE_SIGN_IDENTITY= CARTHAGE=YES clean build) failed with exit code 65: ** BUILD FAILED ** The following build commands failed: Ld /Users/crifan/Library/Developer/Xcode/DerivedData/ChartsRealm-henokosypuekvqgqvthggjdtnuey/Build/Products/Release-appletvos/Charts.framework/Charts normal arm64 (1 failure)
但是最终还是没有解决。
由于已经得到了，可用的，iOS版本的库了，
暂时就不继续去深究了－》等以后用到了Realm的Charts，再说。
