    【已解决】把IEC 104的Cause of Transmission COT的全部定义添加到com.iec.analysis的TransferReason

    iec crifan 1763浏览
    发现
    定义也不完整，只有一部分：
    src/iec_analysis/src/main/java/com/iec/analysis/common/TransferReason.java
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    package com.iec.analysis.common;


    import com.iec.analysis.exception.UnknownTransferReasonException;


    /**
     * 解析传送原因
     *
     * @author 张雨 2018.01.06
     */
    public enum TransferReason {
        UNUSED(0, "未用"),
        PERIOD(1, "周期、循环 "),
        BG_SCANNER(2, "背景扫描"),
        OUTBURST(3, "突发(自发)"),
        INITIALIZATION_COMPLETE(4, "初始化完成"),
        REQUEST(5, "请求或者被请求"),
        ACTIVATE(6, "激活"),
        ACTIVATE_CONFIRMATION(7, "激活确认"),
        STOP_ACTIVATION(8, "    停止激活 "),
        STOP_ACTIVATION_CONFIRMATION(9, "停止激活确认"),
        ACTIVATE_TERMINATION(10, "激活终止     "),
        FILE_TRANSFER(13, "文件传输    "),
        ANSWER_STATION_CALL(20, "响应站召唤（总召唤）"),
        UNKNOWN_TYPE(44, "未知的类型标识"),
        UNKNOWN_REASON_TRANSMISSION(45, "未知的传送原因"),
        UNKNOWN_ASDU(46, "未知的应用服务数据单元公共地址"),
        UNKNOWN_ADDRESS(47, "未知的信息对象地址"),
        RC_STATUS_ERROR(48, "遥控执行软压板状态错误"),
        RC_TIME_ERROR(49, "遥控执行时间戳错误"),
        RC_SIGNATURE_ERROR(50, "遥控执行数字签名认证错误");
        private int code;
        private String describe;


        TransferReason(int code, String describe) {
            this.code = code;
            this.describe = describe;
        }


        public static String getDdescribe(int code) throws UnknownTransferReasonException {
            for (TransferReason value : TransferReason.values()) {
                if (value.code == code) return value.describe;
            }
            throw  new UnknownTransferReasonException();
        }
    }
    所以去添加完整定义：
    参考：

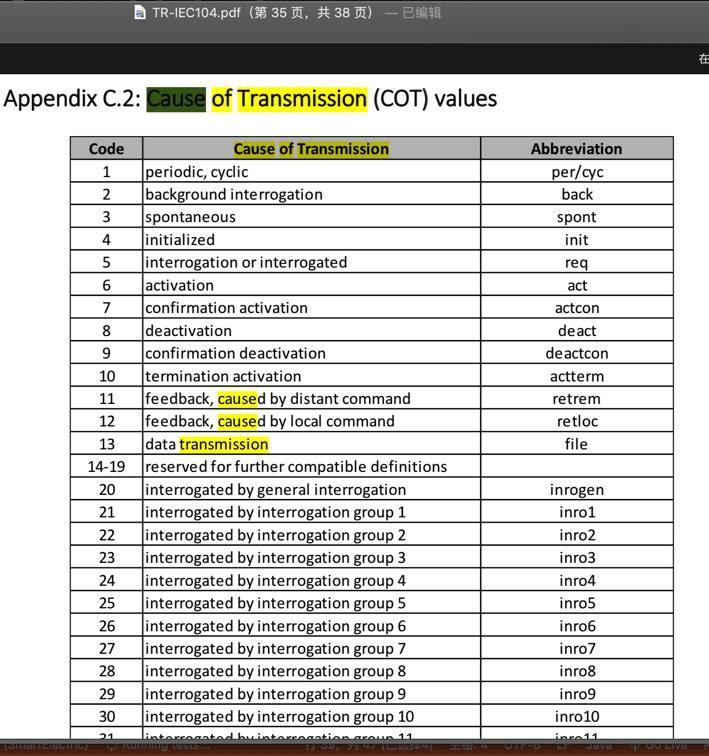

    Appendix C.2: Cause of Transmission (COT) values
    Code
    Cause of Transmission
    Abbreviation
    1
    periodic, cyclic
    per/cyc
    2
    background interrogation
    back
    3
    spontaneous
    spont
    4
    initialized
    init
    5
    interrogation or interrogated
    req
    6
    activation
    act
    7
    confirmation activation
    actcon
    8
    deactivation
    deact
    9
    confirmation deactivation
    deactcon
    10
    termination activation
    actterm
    11
    feedback, caused by distant command
    retrem
    12
    feedback, caused by local command
    retloc
    13
    data transmission
    file
    14-19
    reserved for further compatible definitions
    20
    interrogated by general interrogation
    inrogen
    21
    interrogated by interrogation group 1
    inro1
    22
    interrogated by interrogation group 2
    inro2
    23
    interrogated by interrogation group 3
    inro3
    24
    interrogated by interrogation group 4
    inro4
    25
    interrogated by interrogation group 5
    inro5
    26
    interrogated by interrogation group 6
    inro6
    27
    interrogated by interrogation group 7
    inro7
    28
    interrogated by interrogation group 8
    inro8
    29
    interrogated by interrogation group 9
    inro9
    30
    interrogated by interrogation group 10
    inro10
    31
    interrogated by interrogation group 11
    inro11
    32
    interrogated by interrogation group 12
    inro12
    33
    interrogated by interrogation group 13
    inro13
    34
    interrogated by interrogation group 14
    inro14
    35
    interrogated by interrogation group 15
    inro15
    36
    interrogated by interrogation group 16
    inro16
    37
    interrogated by counter general interrogation
    reqcogen
    38
    interrogated by interrogation counter group 1
    reqco1
    39
    interrogated by interrogation counter group 2
    reqco2
    40
    interrogated by interrogation counter group 3
    reqco3
    41
    interrogated by interrogation counter group 4
    reqco4
    …
    44
    type-Identification unknown
    uknown_type
    45
    cause unknown
    uknown_cause
    46
    ASDU address unknown
    unknown_asdu_address
    47
    Information object address unknown
    unknown_object_address
    通过VSCode去参考：
    【已解决】把IEC 104的ASDU Type Identifier的全部定义添加到com.iec.analysis的TypeIdentifier
    借助于VSCode去添加进来：

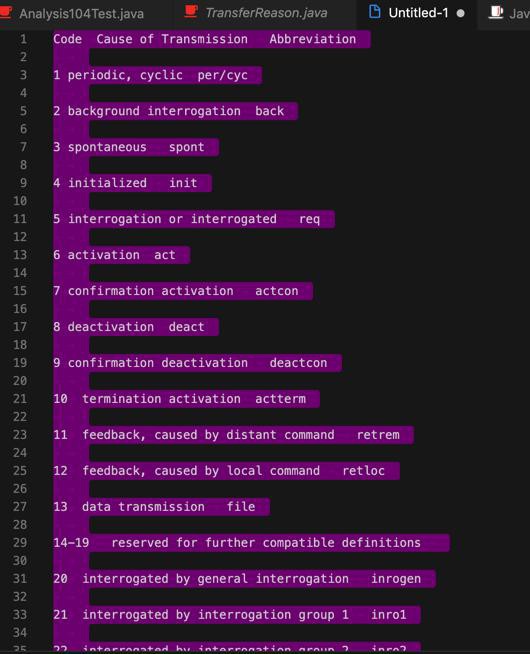

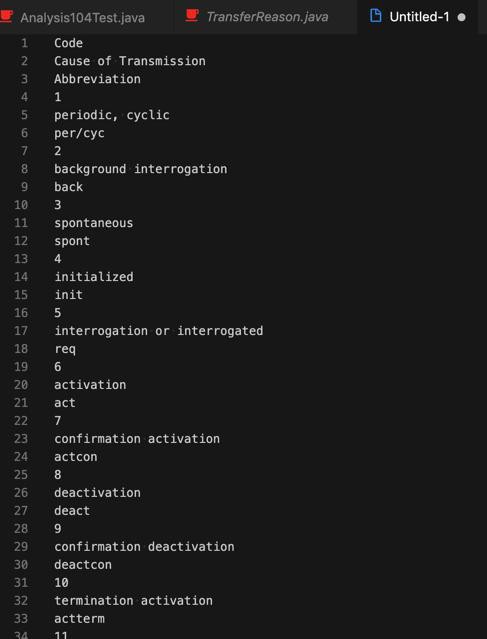

    先复制到VSCode
    从pdf中粘贴过去

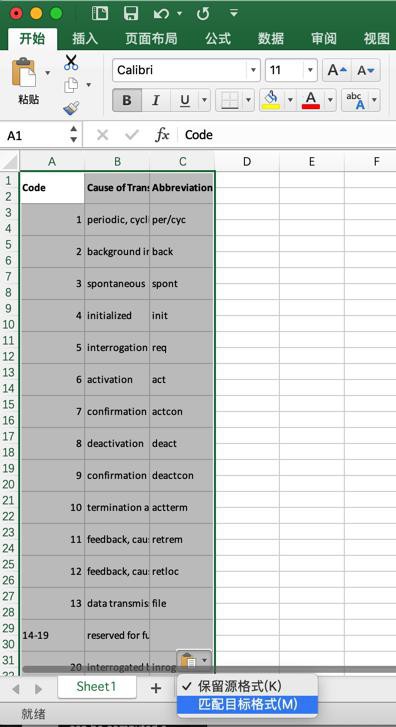

    不满足需求，不好用正则处理，所以先去试试能否处理到excel中

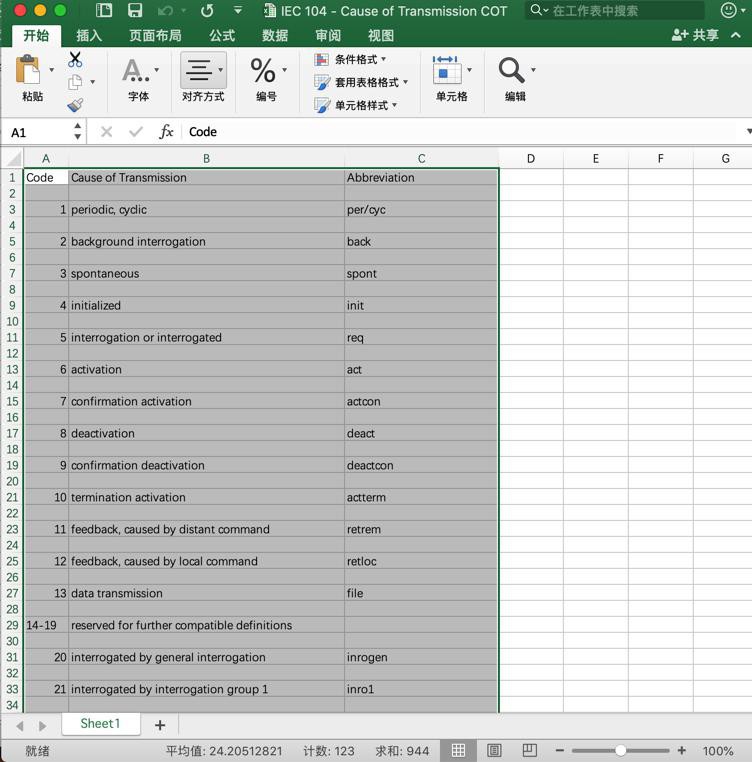

    保存后：

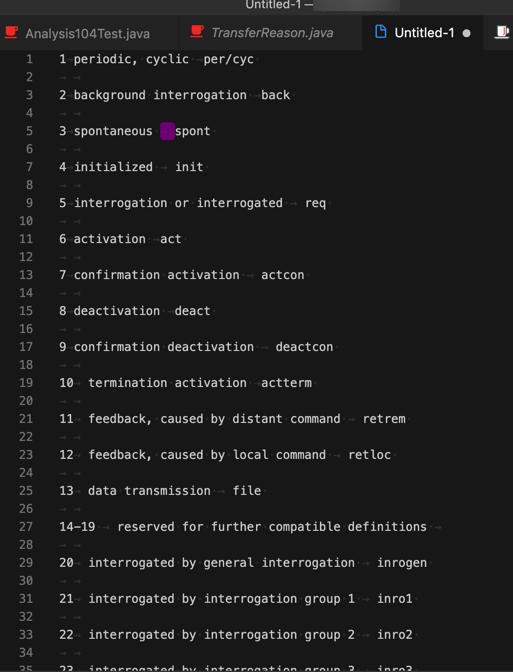

    拷贝到VSCode中：
    去掉第一行和中间个别几行特殊的
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    1    periodic, cyclic     per/cyc

    2    background interrogation     back

    3    spontaneous     spont

    4    initialized     init

    5    interrogation or interrogated     req

    6    activation     act

    7    confirmation activation     actcon

    8    deactivation     deact

    9    confirmation deactivation     deactcon

    10    termination activation     actterm

    11    feedback, caused by distant command     retrem

    12    feedback, caused by local command     retloc

    13    data transmission     file

    14-19     reserved for further compatible definitions

    20    interrogated by general interrogation     inrogen

    21    interrogated by interrogation group 1     inro1

    22    interrogated by interrogation group 2     inro2

    23    interrogated by interrogation group 3     inro3

    24    interrogated by interrogation group 4     inro4

    25    interrogated by interrogation group 5     inro5

    26    interrogated by interrogation group 6     inro6

    27    interrogated by interrogation group 7     inro7

    28    interrogated by interrogation group 8     inro8

    29    interrogated by interrogation group 9     inro9

    30    interrogated by interrogation group 10     inro10

    31    interrogated by interrogation group 11     inro11

    32    interrogated by interrogation group 12     inro12

    33    interrogated by interrogation group 13     inro13

    34    interrogated by interrogation group 14     inro14

    35    interrogated by interrogation group 15     inro15

    36    interrogated by interrogation group 16     inro16

    37    interrogated by counter general interrogation     reqcogen

    38    interrogated by interrogation counter group 1     reqco1

    39    interrogated by interrogation counter group 2     reqco2

    40    interrogated by interrogation counter group 3     reqco3

    41    interrogated by interrogation counter group 4     reqco4

    44    type-Identification unknown     uknown_type

    45    cause unknown     uknown_cause

    46    ASDU address unknown     unknown_asdu_address

    47    Information object address unknown     unknown_object_address

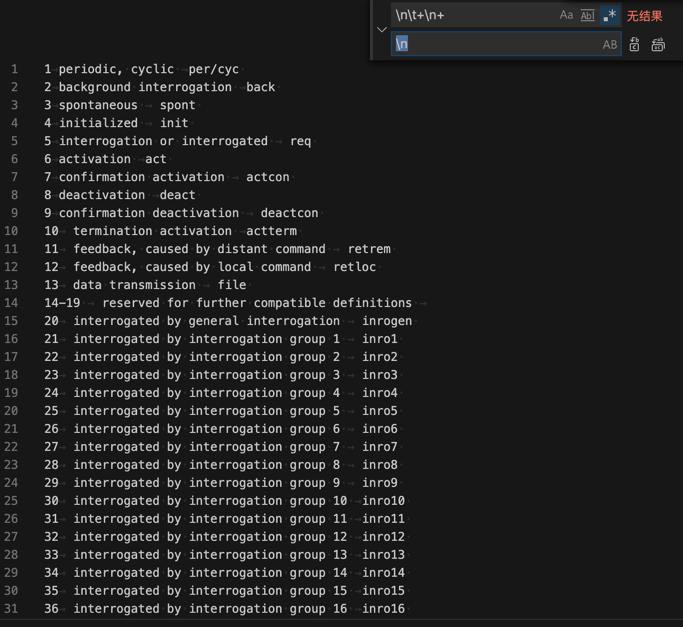

    然后去掉多行的空行
    ?
    1
    2
    \n\t+\n+
    \n
    替换成：
    去掉reserved：
    ?
    1
    14-19     reserved for further compatible definitions

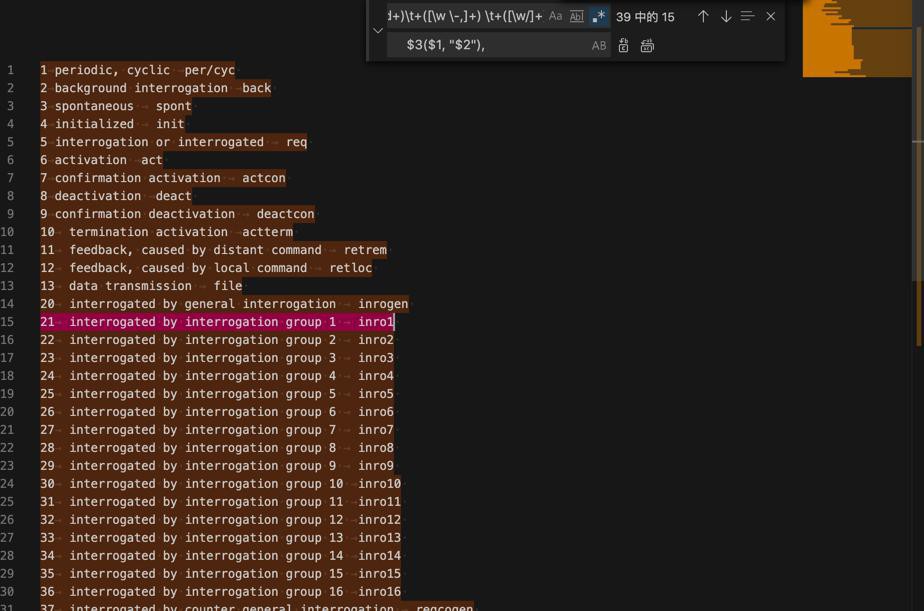

    然后再去写正则，变成需要的格式：
    ?
    1
    2
    ^(\d+)\t+([\w \-,]+) \t+([\w/]+)
        $3($1, "$2"),
    从：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    1    periodic, cyclic     per/cyc
    2    background interrogation     back
    3    spontaneous     spont
    4    initialized     init
    5    interrogation or interrogated     req
    6    activation     act
    7    confirmation activation     actcon
    8    deactivation     deact
    9    confirmation deactivation     deactcon
    10    termination activation     actterm
    11    feedback, caused by distant command     retrem
    12    feedback, caused by local command     retloc
    13    data transmission     file
    20    interrogated by general interrogation     inrogen
    21    interrogated by interrogation group 1     inro1
    22    interrogated by interrogation group 2     inro2
    23    interrogated by interrogation group 3     inro3
    24    interrogated by interrogation group 4     inro4
    25    interrogated by interrogation group 5     inro5
    26    interrogated by interrogation group 6     inro6
    27    interrogated by interrogation group 7     inro7
    28    interrogated by interrogation group 8     inro8
    29    interrogated by interrogation group 9     inro9
    30    interrogated by interrogation group 10     inro10
    31    interrogated by interrogation group 11     inro11
    32    interrogated by interrogation group 12     inro12
    33    interrogated by interrogation group 13     inro13
    34    interrogated by interrogation group 14     inro14
    35    interrogated by interrogation group 15     inro15
    36    interrogated by interrogation group 16     inro16
    37    interrogated by counter general interrogation     reqcogen
    38    interrogated by interrogation counter group 1     reqco1
    39    interrogated by interrogation counter group 2     reqco2
    40    interrogated by interrogation counter group 3     reqco3
    41    interrogated by interrogation counter group 4     reqco4
    44    type-Identification unknown     uknown_type
    45    cause unknown     uknown_cause
    46    ASDU address unknown     unknown_asdu_address
    47    Information object address unknown     unknown_object_address

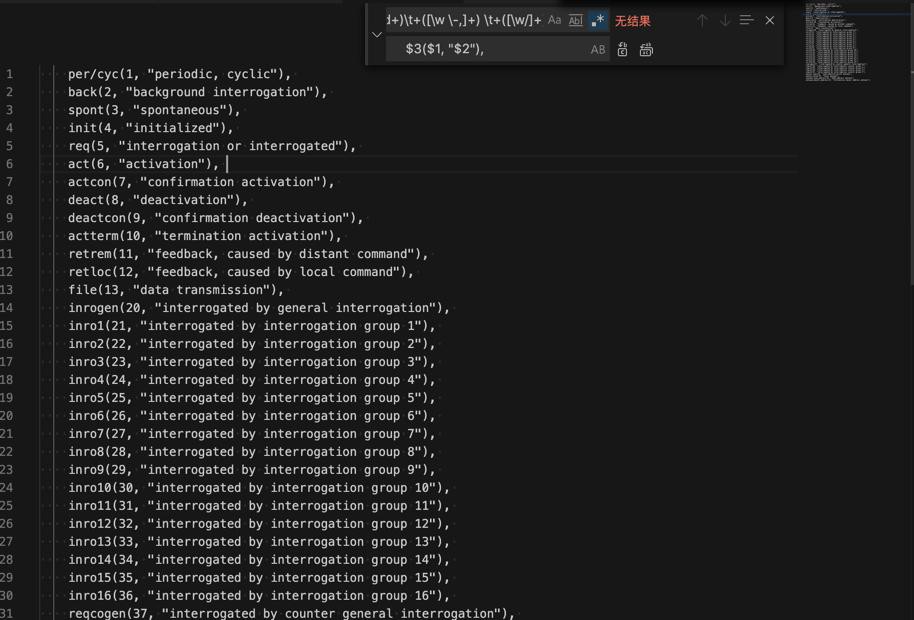

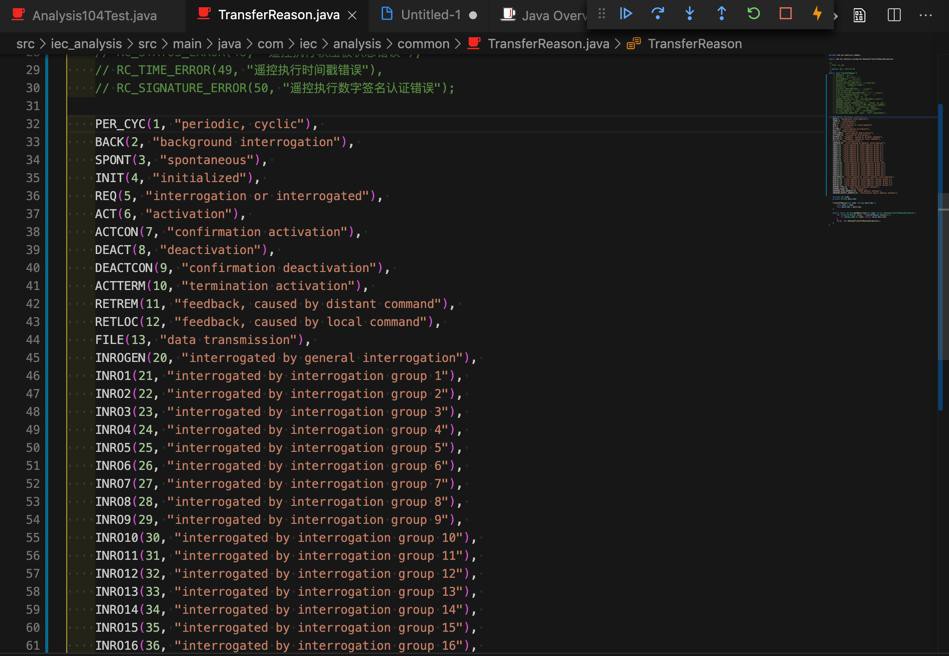

    变成：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
        per/cyc(1, "periodic, cyclic"),
        back(2, "background interrogation"),
        spont(3, "spontaneous"),
        init(4, "initialized"),
        req(5, "interrogation or interrogated"),
        act(6, "activation"),
        actcon(7, "confirmation activation"),
        deact(8, "deactivation"),
        deactcon(9, "confirmation deactivation"),
        actterm(10, "termination activation"),
        retrem(11, "feedback, caused by distant command"),
        retloc(12, "feedback, caused by local command"),
        file(13, "data transmission"),
        inrogen(20, "interrogated by general interrogation"),
        inro1(21, "interrogated by interrogation group 1"),
        inro2(22, "interrogated by interrogation group 2"),
        inro3(23, "interrogated by interrogation group 3"),
        inro4(24, "interrogated by interrogation group 4"),
        inro5(25, "interrogated by interrogation group 5"),
        inro6(26, "interrogated by interrogation group 6"),
        inro7(27, "interrogated by interrogation group 7"),
        inro8(28, "interrogated by interrogation group 8"),
        inro9(29, "interrogated by interrogation group 9"),
        inro10(30, "interrogated by interrogation group 10"),
        inro11(31, "interrogated by interrogation group 11"),
        inro12(32, "interrogated by interrogation group 12"),
        inro13(33, "interrogated by interrogation group 13"),
        inro14(34, "interrogated by interrogation group 14"),
        inro15(35, "interrogated by interrogation group 15"),
        inro16(36, "interrogated by interrogation group 16"),
        reqcogen(37, "interrogated by counter general interrogation"),
        reqco1(38, "interrogated by interrogation counter group 1"),
        reqco2(39, "interrogated by interrogation counter group 2"),
        reqco3(40, "interrogated by interrogation counter group 3"),
        reqco4(41, "interrogated by interrogation counter group 4"),
        uknown_type(44, "type-Identification unknown"),
        uknown_cause(45, "cause unknown"),
        unknown_asdu_address(46, "ASDU address unknown"),
        unknown_object_address(47, "Information object address unknown"),
    期间去试试：
    【已解决】VSCode正则替换后如何把字母从小写转换成大写
    然后再去把内容：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
        PER_CYC(1, "periodic, cyclic"),
        BACK(2, "background interrogation"),
        SPONT(3, "spontaneous"),
        INIT(4, "initialized"),
        REQ(5, "interrogation or interrogated"),
        ACT(6, "activation"),
        ACTCON(7, "confirmation activation"),
        DEACT(8, "deactivation"),
        DEACTCON(9, "confirmation deactivation"),
        ACTTERM(10, "termination activation"),
        RETREM(11, "feedback, caused by distant command"),
        RETLOC(12, "feedback, caused by local command"),
        FILE(13, "data transmission"),
        INROGEN(20, "interrogated by general interrogation"),
        INRO1(21, "interrogated by interrogation group 1"),
        INRO2(22, "interrogated by interrogation group 2"),
        INRO3(23, "interrogated by interrogation group 3"),
        INRO4(24, "interrogated by interrogation group 4"),
        INRO5(25, "interrogated by interrogation group 5"),
        INRO6(26, "interrogated by interrogation group 6"),
        INRO7(27, "interrogated by interrogation group 7"),
        INRO8(28, "interrogated by interrogation group 8"),
        INRO9(29, "interrogated by interrogation group 9"),
        INRO10(30, "interrogated by interrogation group 10"),
        INRO11(31, "interrogated by interrogation group 11"),
        INRO12(32, "interrogated by interrogation group 12"),
        INRO13(33, "interrogated by interrogation group 13"),
        INRO14(34, "interrogated by interrogation group 14"),
        INRO15(35, "interrogated by interrogation group 15"),
        INRO16(36, "interrogated by interrogation group 16"),
        REQCOGEN(37, "interrogated by counter general interrogation"),
        REQCO1(38, "interrogated by interrogation counter group 1"),
        REQCO2(39, "interrogated by interrogation counter group 2"),
        REQCO3(40, "interrogated by interrogation counter group 3"),
        REQCO4(41, "interrogated by interrogation counter group 4"),
        UKNOWN_TYPE(44, "type-Identification unknown"),
        UKNOWN_CAUSE(45, "cause unknown"),
        UNKNOWN_ASDU_ADDRESS(46, "ASDU address unknown"),
        UNKNOWN_OBJECT_ADDRESS(47, "Information object address unknown"),
    拷贝到代码中
    （第一个特殊需要手动处理：PER/CYC -》 PER_CYC）
    如此，即可实现：
    把原始的pdf中的表格中的定义，最终处理放到代码中，实现完整的枚举TransferReason的定义了。
    【总结】

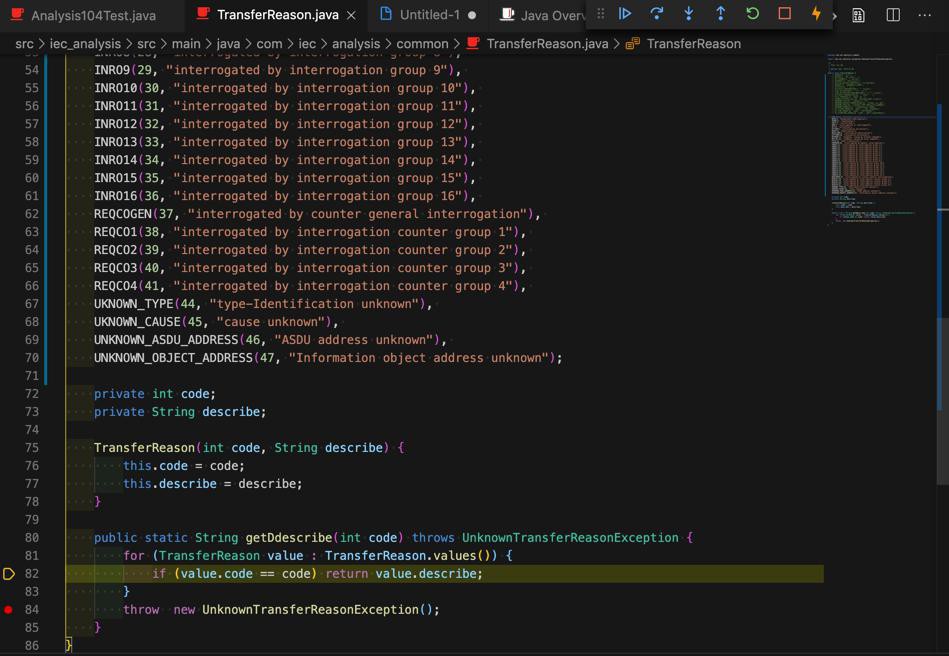

    最后代码是：
    src/iec_analysis/src/main/java/com/iec/analysis/common/TransferReason.java
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    package com.iec.analysis.common;


    import com.iec.analysis.exception.UnknownTransferReasonException;


    /**
     * 解析传送原因
     *
     * @author 张雨 2018.01.06
     */
    public enum TransferReason {
        // UNUSED(0, "未用"),
        // PERIOD(1, "周期、循环 "),
        // BG_SCANNER(2, "背景扫描"),
        // OUTBURST(3, "突发(自发)"),
        // INITIALIZATION_COMPLETE(4, "初始化完成"),
        // REQUEST(5, "请求或者被请求"),
        // ACTIVATE(6, "激活"),
        // ACTIVATE_CONFIRMATION(7, "激活确认"),
        // STOP_ACTIVATION(8, "    停止激活 "),
        // STOP_ACTIVATION_CONFIRMATION(9, "停止激活确认"),
        // ACTIVATE_TERMINATION(10, "激活终止     "),
        // FILE_TRANSFER(13, "文件传输    "),
        // ANSWER_STATION_CALL(20, "响应站召唤（总召唤）"),
        // UNKNOWN_TYPE(44, "未知的类型标识"),
        // UNKNOWN_REASON_TRANSMISSION(45, "未知的传送原因"),
        // UNKNOWN_ASDU(46, "未知的应用服务数据单元公共地址"),
        // UNKNOWN_ADDRESS(47, "未知的信息对象地址"),
        // RC_STATUS_ERROR(48, "遥控执行软压板状态错误"),
        // RC_TIME_ERROR(49, "遥控执行时间戳错误"),
        // RC_SIGNATURE_ERROR(50, "遥控执行数字签名认证错误");


        PER_CYC(1, "periodic, cyclic"),
        BACK(2, "background interrogation"),
        SPONT(3, "spontaneous"),
        INIT(4, "initialized"),
        REQ(5, "interrogation or interrogated"),
        ACT(6, "activation"),
        ACTCON(7, "confirmation activation"),
        DEACT(8, "deactivation"),
        DEACTCON(9, "confirmation deactivation"),
        ACTTERM(10, "termination activation"),
        RETREM(11, "feedback, caused by distant command"),
        RETLOC(12, "feedback, caused by local command"),
        FILE(13, "data transmission"),
        INROGEN(20, "interrogated by general interrogation"),
        INRO1(21, "interrogated by interrogation group 1"),
        INRO2(22, "interrogated by interrogation group 2"),
        INRO3(23, "interrogated by interrogation group 3"),
        INRO4(24, "interrogated by interrogation group 4"),
        INRO5(25, "interrogated by interrogation group 5"),
        INRO6(26, "interrogated by interrogation group 6"),
        INRO7(27, "interrogated by interrogation group 7"),
        INRO8(28, "interrogated by interrogation group 8"),
        INRO9(29, "interrogated by interrogation group 9"),
        INRO10(30, "interrogated by interrogation group 10"),
        INRO11(31, "interrogated by interrogation group 11"),
        INRO12(32, "interrogated by interrogation group 12"),
        INRO13(33, "interrogated by interrogation group 13"),
        INRO14(34, "interrogated by interrogation group 14"),
        INRO15(35, "interrogated by interrogation group 15"),
        INRO16(36, "interrogated by interrogation group 16"),
        REQCOGEN(37, "interrogated by counter general interrogation"),
        REQCO1(38, "interrogated by interrogation counter group 1"),
        REQCO2(39, "interrogated by interrogation counter group 2"),
        REQCO3(40, "interrogated by interrogation counter group 3"),
        REQCO4(41, "interrogated by interrogation counter group 4"),
        UKNOWN_TYPE(44, "type-Identification unknown"),
        UKNOWN_CAUSE(45, "cause unknown"),
        UNKNOWN_ASDU_ADDRESS(46, "ASDU address unknown"),
        UNKNOWN_OBJECT_ADDRESS(47, "Information object address unknown");


        private int code;
        private String describe;


        TransferReason(int code, String describe) {
            this.code = code;
            this.describe = describe;
        }


        public static String getDdescribe(int code) throws UnknownTransferReasonException {
            for (TransferReason value : TransferReason.values()) {
                if (value.code == code) return value.describe;
            }
            throw  new UnknownTransferReasonException();
        }
    }
    供参考。

    转载请注明：在路上 » 【已解决】把IEC 104的Cause of Transmission COT的全部定义添加到com.iec.analysis的TransferReason

    Post Views: 1,890

    与本文相关的文章

    81 queries in 0.186 seconds, using 19.93MB memory
