【已解决】爬取nickjr.com中的动画片相关视频字幕等数据

想要去爬取：

中的内容。

点击进去：

http://www.nickjr.tv/shimmer-and-shine/videos/welcome-to-zahramay-falls/

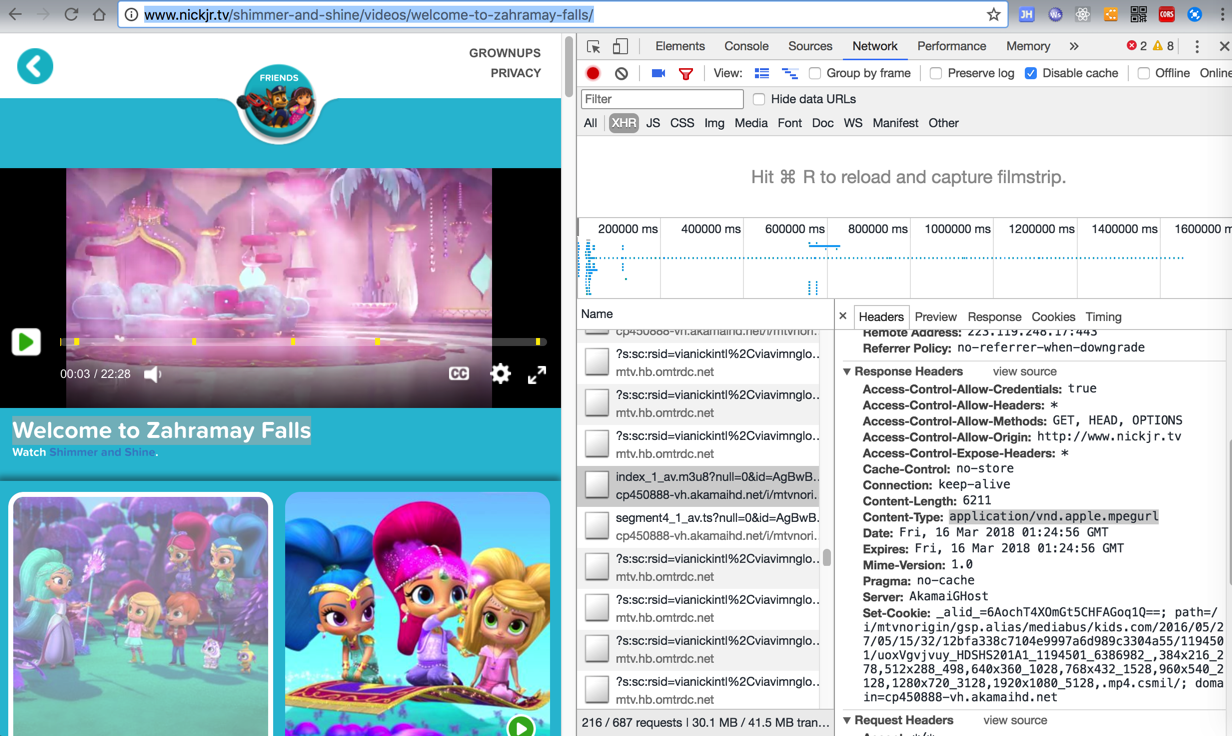

调试看了半天，看到：

地址：

https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/32/12bfa338c7104e9997a6d989c3304a55/1194501/uoxVgvjvuy_HDSHS201A1_1194501_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/index_1_av.m3u8?null=0&id=AgBwBECN33f4FZcaq1rIvO0NG+3yWSxT7o5s%2fm7KmLjXX8KF571QMDHDJ32KTtTj6UUqhTgZ8Xf2pw%3d%3d&hdntl=exp=1521249303~acl=%2fi%2fmtvnorigin%2fgsp.alias%2fmediabus%2fkids.com%2f2016%2f05%2f27%2f05%2f15%2f32%2f12bfa338c7104e9997a6d989c3304a55%2f1194501%2fuoxVgvjvuy_HDSHS201A1_1194501_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil%2f*~data=hdntl~hmac=e5031d156c0cdbe593ef6e5b30fee2d53fe1f6f5f80e9570bb38755ab422a755

Content-Type:

application/vnd.apple.mpegurl

像是音频m3u8

地址：

http://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/32/12bfa338c7104e9997a6d989c3304a55/1194501/uoxVgvjvuy_HDSHS201A1_1194501_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/segment4_1_av.ts?null=0&id=AgBwBECN33f4FZcaq1rIvO0NG+3yWSxT7o5s%2fm7KmLjXX8KF571QMDHDJ32KTtTj6UUqhTgZ8Xf2pw%3d%3d&hdntl=exp=1521249303~acl=/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/32/12bfa338c7104e9997a6d989c3304a55/1194501/uoxVgvjvuy_HDSHS201A1_1194501_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/*~data=hdntl~hmac=e5031d156c0cdbe593ef6e5b30fee2d53fe1f6f5f80e9570bb38755ab422a755

Content-Type:video/MP2T

像是视频。

搜：

application/vnd.apple.mpegurl

Deploying HTTP Live Streaming

File Extension	MIME Type
.M3U8	application/x-mpegURL or vnd.apple.mpegURL
.ts	video/MP2T

判断是否可以用m3u8的js方式|mayloveless’s Blog

“m3u8文件的content-type:安卓只支持 application/vnd.apple.mpegurl，而ios对于application/x-mpegURL，application/vnd.apple.mpegURL均支持。

p.s videojs 关于HLS技术做了许多工具，非常强大，甚至可以把流读过来然后封装成另外的格式”

-》

所以确定：

此处用的技术，好像是videojs的HLS

包括了：.M3U8的音频和.ts的视频。

然后去找找类似于：

<code>&lt;video controls width="300" height="270" src="drive.m3u8"&gt;&lt;/video&gt;
&lt;video  controls width="300" height="270"&gt;&lt;source  src="drive.m3u8"&gt; &lt;/video&gt;
&lt;video  type="application/x-mpegurl" controls width="300" height="270"&gt;&lt;source  src="drive.m3u8"&gt; &lt;/video&gt;
&lt;video  type="application/vnd.apple.mpegurl" controls width="300" height="270"&gt;&lt;source  src="drive.m3u8"&gt; &lt;/video&gt;
</code>

的video的标签，看看能否找到。

以为没有看到 <video

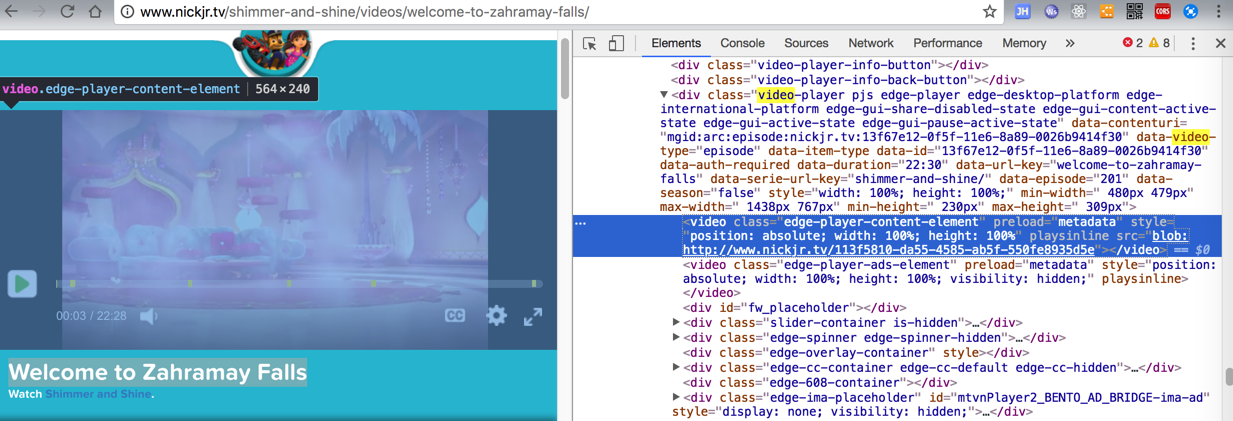

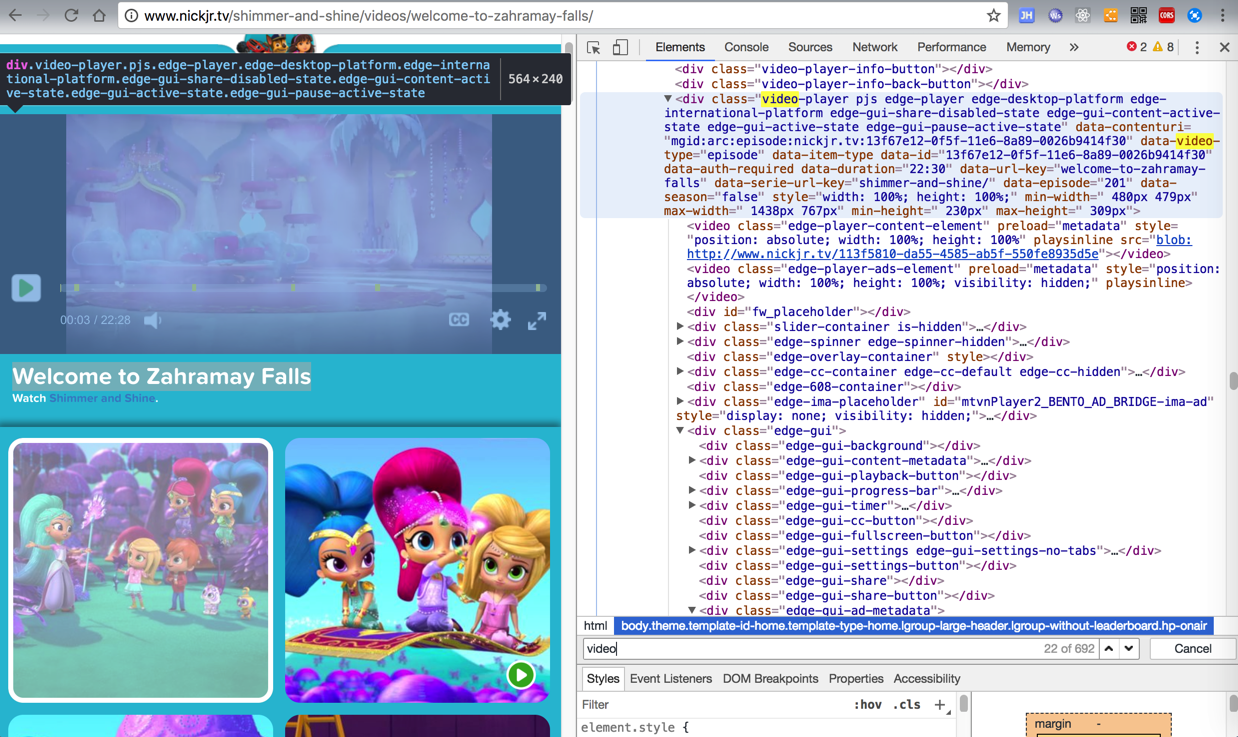

但是看到了相关部分的html：

然后发现看到了：

<code>&lt;video class="edge-player-content-element" preload="metadata" style="position: absolute; width: 100%; height: 100%" playsinline="" src="blob:http://www.nickjr.tv/113f5810-da55-4585-ab5f-550fe8935d5e"&gt;&lt;/video&gt;
</code>

然后去打开blob地址试试：

blob:http://www.nickjr.tv/113f5810-da55-4585-ab5f-550fe8935d5e

结果打不开。

单独打开：

http://www.nickjr.tv/113f5810-da55-4585-ab5f-550fe8935d5e

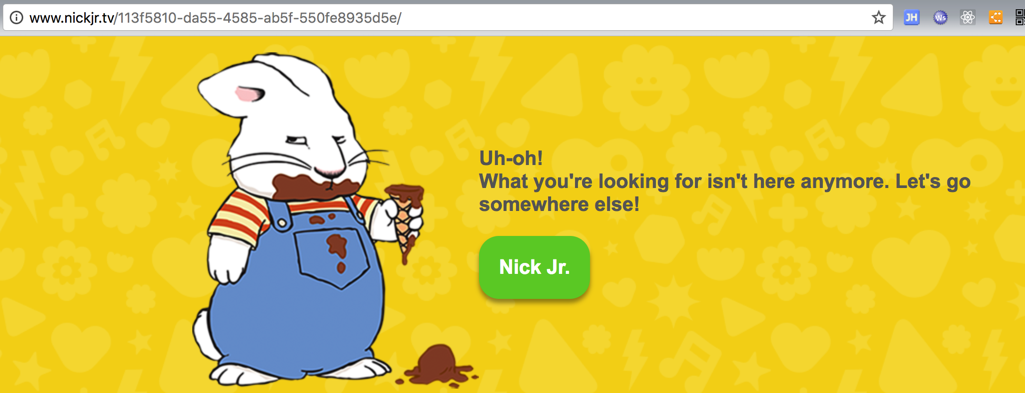

结果：

报错：

通过此处的：

<code>&lt;div class="video-player pjs edge-player edge-desktop-platform edge-international-platform edge-gui-share-disabled-state edge-gui-content-active-state edge-gui-active-state edge-gui-pause-active-state" data-contenturi="mgid:arc:episode:nickjr.tv:13f67e12-0f5f-11e6-8a89-0026b9414f30" data-video-type="episode" data-item-type="" data-id="13f67e12-0f5f-11e6-8a89-0026b9414f30" data-auth-required="" data-duration="22:30" data-url-key="welcome-to-zahramay-falls" data-serie-url-key="shimmer-and-shine/" data-episode="201" data-season="false" style="width: 100%; height: 100%;" min-width=" 480px 479px" max-width=" 1438px 767px" min-height=" 230px" max-height=" 309px"&gt;&lt;video class="edge-player-content-element" preload="metadata" style="position: absolute; width: 100%; height: 100%" playsinline="" src="blob:http://www.nickjr.tv/113f5810-da55-4585-ab5f-550fe8935d5e"&gt;&lt;/video&gt;
</code>

中的：

data-contenturi = mgid:arc:episode:nickjr.tv:13f67e12-0f5f-11e6-8a89-0026b9414f30

和

data-id = 13f67e12-0f5f-11e6-8a89-0026b9414f30

确定这个

data的ID就是：13f67e12-0f5f-11e6-8a89-0026b9414f30

内容是通过

mgid:arc:episode:nickjr.tv:13f67e12-0f5f-11e6-8a89-0026b9414f30

去获取的

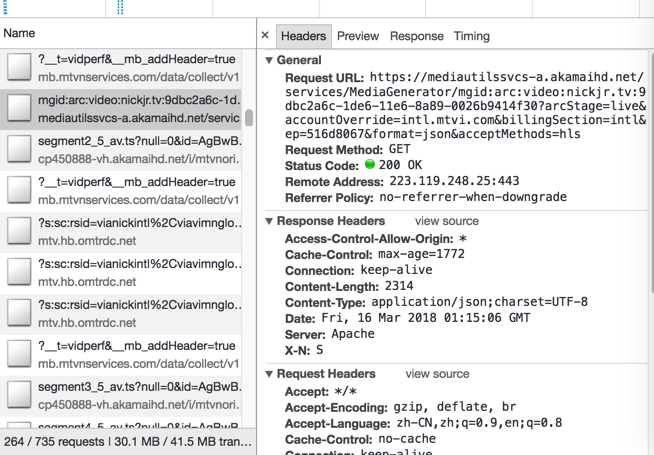

然后果然找到了了对应的：

https://mediautilssvcs-a.akamaihd.net/services/MediaGenerator/mgid:arc:video:nickjr.tv:9dbc2a6c-1de6-11e6-8a89-0026b9414f30?arcStage=live&accountOverride=intl.mtvi.com&billingSection=intl&ep=516d8067&format=json&acceptMethods=hls

<code>{"package": {
  "version": "1.7.1",
  "video": {
    "item": [
      {
        "origination_date": "03-15-2018 21:15:05",
        "rendition": [
          {
            "cdn": "akamai",
            "method": "hls",
            "duration": "326",
            "type": "application/x-mpegURL",
            "src": "https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/master.m3u8?hdnea=st%3D1521162845%7Eexp%3D1521177245%7Eacl%3D%2Fi%2Fmtvnorigin%2Fgsp.alias%2Fmediabus%2Fkids.com%2F2016%2F05%2F27%2F05%2F15%2F05%2Fdcbc371f6e59467097ec6bd3a162ba90%2F1194502%2FvqIve0Tr0p_HDSHS201A2_1194502_6386982_%2C384x216_278%2C512x288_498%2C640x360_1028%2C768x432_1528%2C960x540_2128%2C1280x720_3128%2C1920x1080_5128%2C.mp4.csmil%2F*%7Ehmac%3Dd383f1d909eabecd89f13d275dca13c0bd733cc0189f62f10f4ae5a6a96149ca&amp;__a__=off&amp;__b__=450&amp;__viacc__=NONE",
            "rdcount": "7",
            "rdminkbps": "284",
            "rdmaxkbps": "4546",
            "rdminwidth": "384",
            "rdmaxwidth": "1920"
          }
        ],
        "transcript": [
          {
            "kind": "captions",
            "srclang": "en",
            "label": "English",
            "typographic": [
              {
                "format": "cea-608",
                "src": "https://akadl-a.akamaihd.net/5290/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982.scc"
              },
              {
                "format": "ttml",
                "src": "https://akadl-a.akamaihd.net/5290/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982.dfxp.xml"
              },
              {
                "format": "vtt",
                "src": "https://media-utils.mtvnservices.com/caption/convert?mgid=mgid:file:gsp:alias:/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982.dfxp.xml&amp;accountName=intl.mtvi.com"
              }
            ]
          }
        ]
      }
    ]
  }
}}
</code>

然后上面写的很清楚：

rendition（n. 译文；演奏；提供；引渡逃奴 -》估计表示音频或视频？）部分：

cdn用的是akamai

method方法是hls

时长duration是326，应该是秒，则=5分26秒

type类型是application/x-mpegURL 就是之前帖子里提到的 application/x-mpegURL和application/vnd.apple.mpegURL中的第一种

src源是

https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/master.m3u8?hdnea=st%3D1521162845%7Eexp%3D1521177245%7Eacl%3D%2Fi%2Fmtvnorigin%2Fgsp.alias%2Fmediabus%2Fkids.com%2F2016%2F05%2F27%2F05%2F15%2F05%2Fdcbc371f6e59467097ec6bd3a162ba90%2F1194502%2FvqIve0Tr0p_HDSHS201A2_1194502_6386982_%2C384x216_278%2C512x288_498%2C640x360_1028%2C768x432_1528%2C960x540_2128%2C1280x720_3128%2C1920x1080_5128%2C.mp4.csmil%2F*%7Ehmac%3Dd383f1d909eabecd89f13d275dca13c0bd733cc0189f62f10f4ae5a6a96149ca&__a__=off&__b__=450&__viacc__=NONE

rdcount什么个数是7？

rdminkbps最小流的比特率284

rdmaxkbps最大是4546

rdminwidth最小宽度384

rdmaxwidth最大宽度1920

transcript（n. 成绩单；抄本，副本；文字记录 -》应该就是字幕）部分

kind类型是captions（n. 题注，字幕；插图说明（caption的复数形式））

srclang 源的语言是en 英文

label标签也是English英文

typographic（adj. 排字上的；印刷上的）

有3种字幕：

cea-608

ttml

vtt

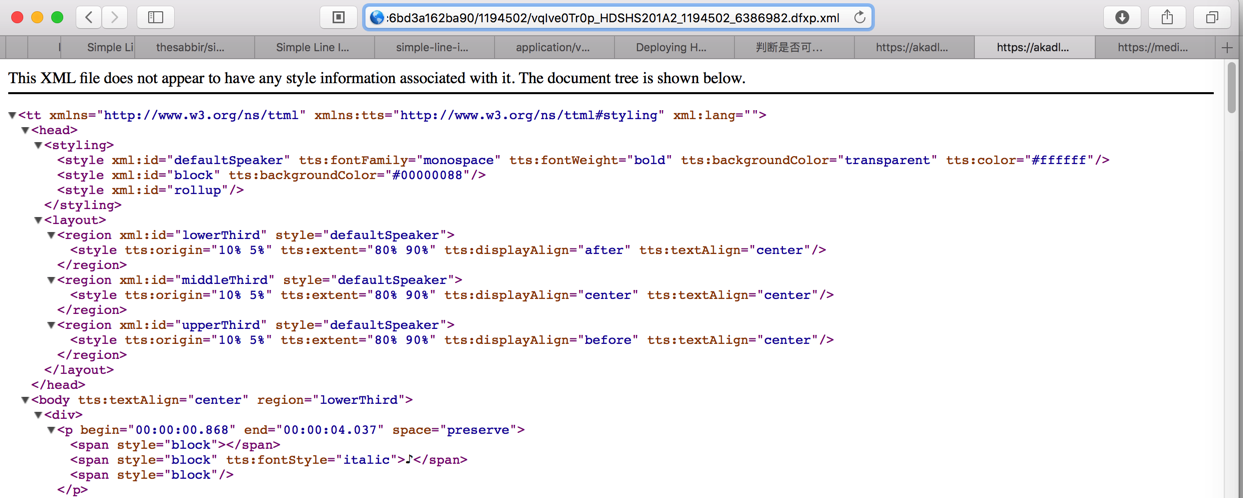

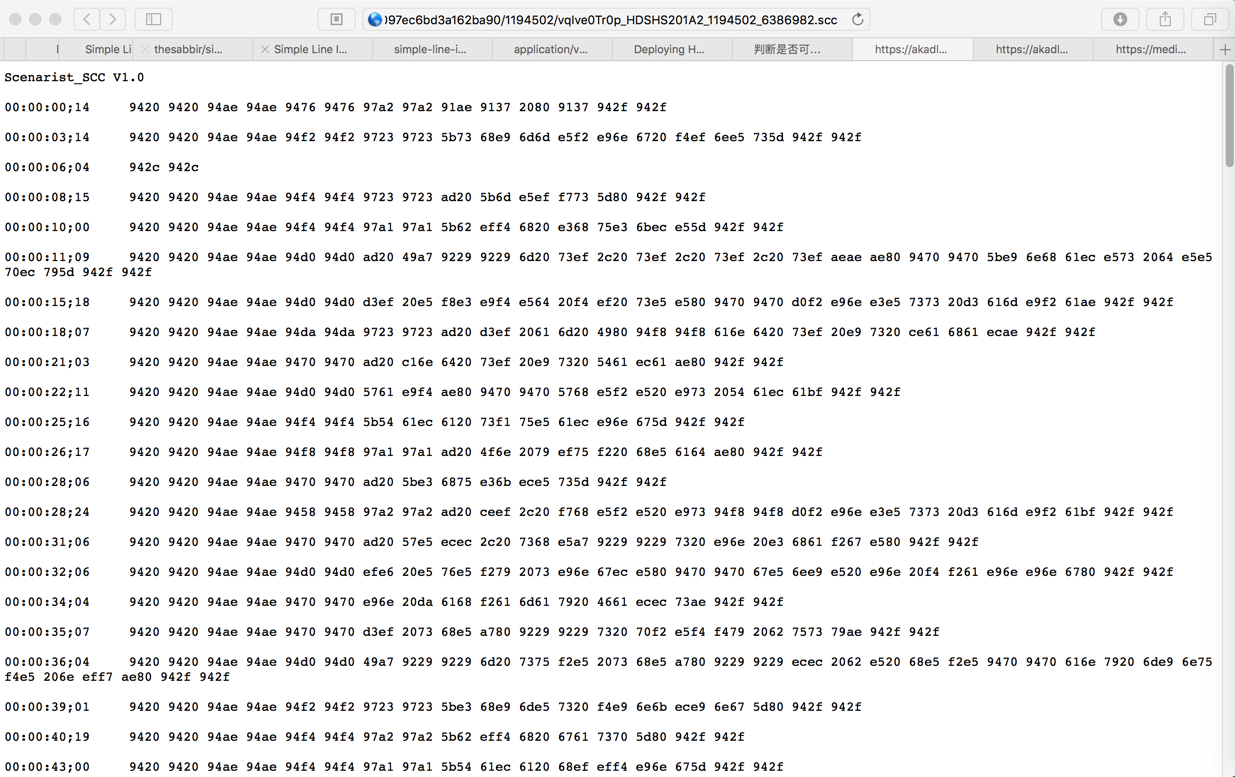

分别打开是：

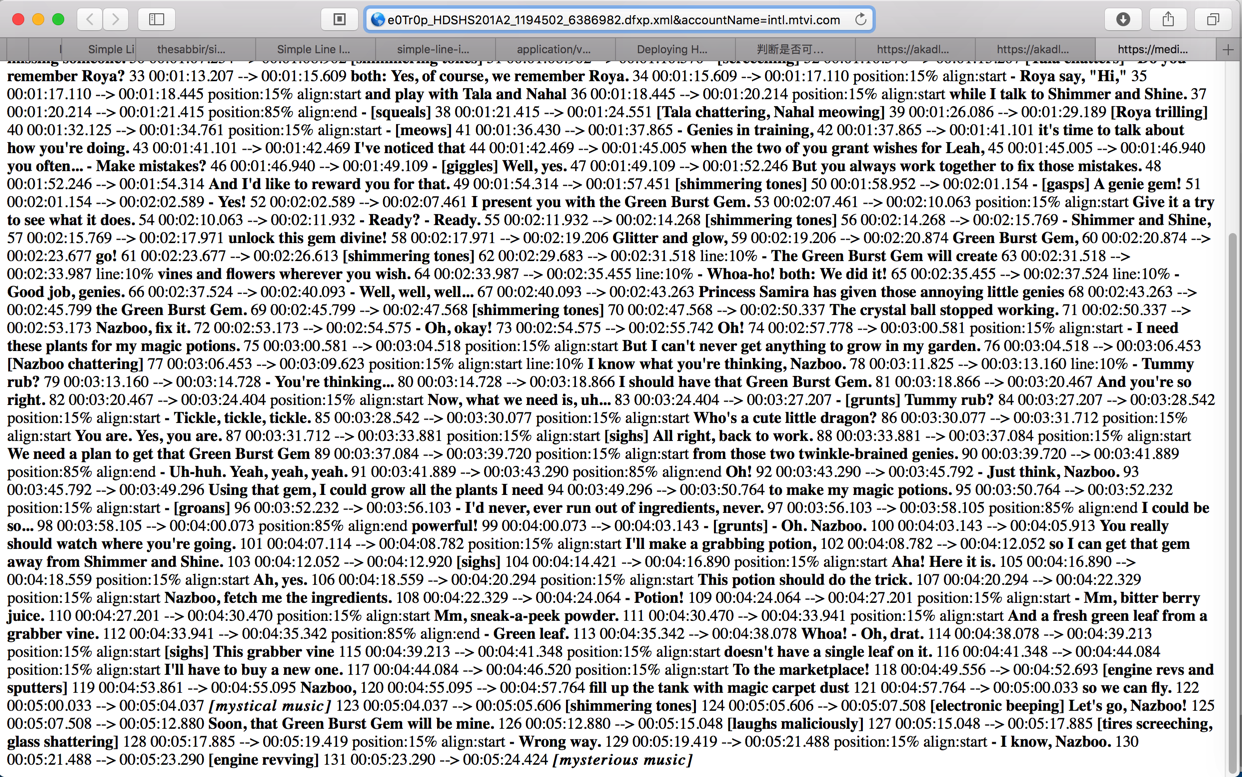

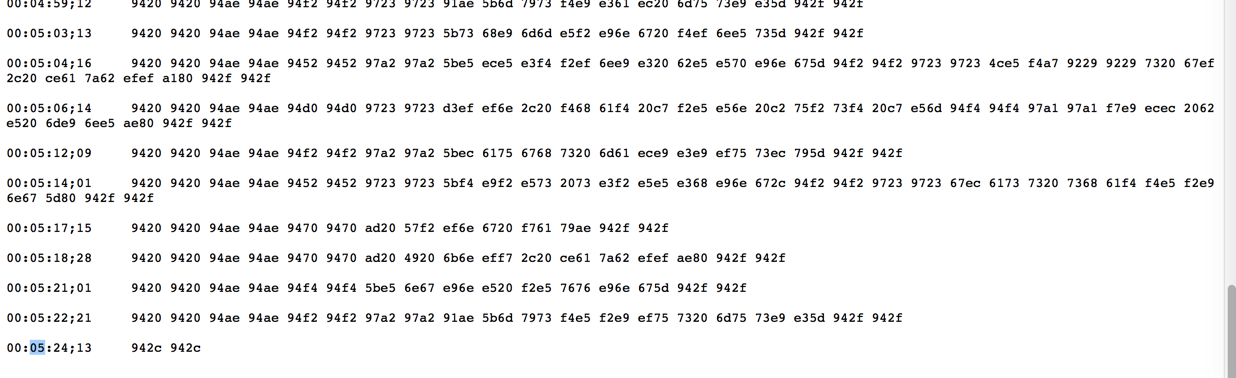

分别最后都是5分多种的字幕

然后再去打开上面的：

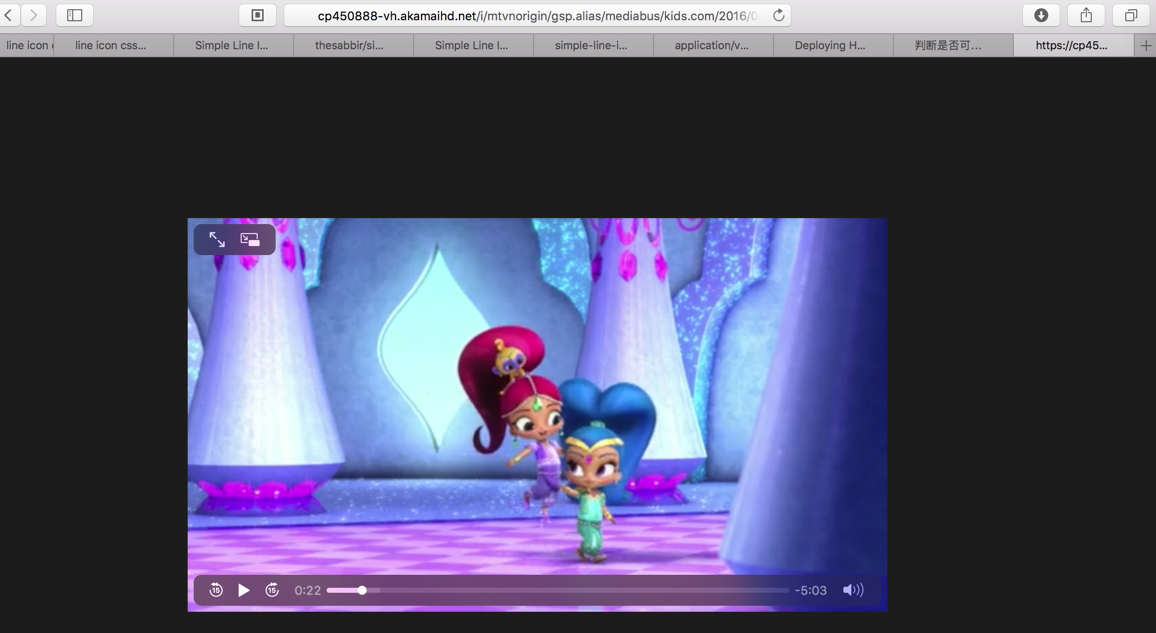

然后可以直接打开播放视频：

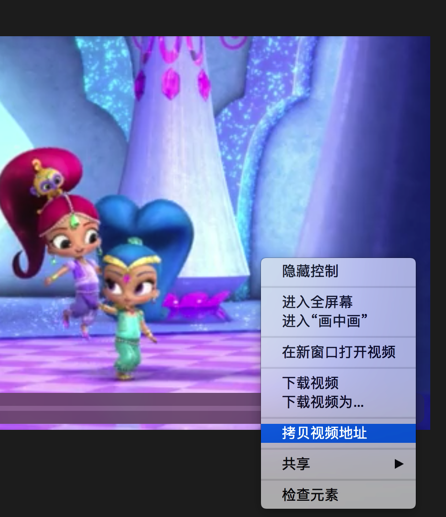

拷贝地址出来

是：

-》所以应该是可以直接下载的

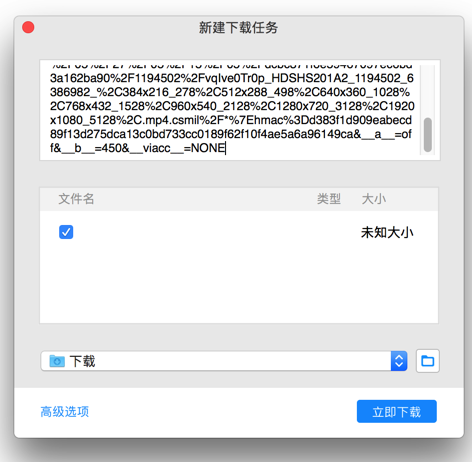

去试试用下载工具，比如迅雷，看看能否下载

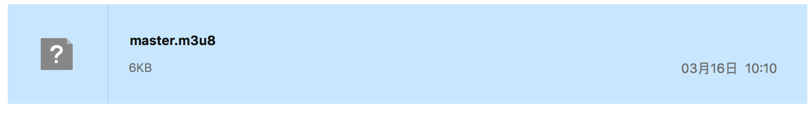

结果只能下载个

6KB的：master.m3u8

无法下载完整视频

看看：

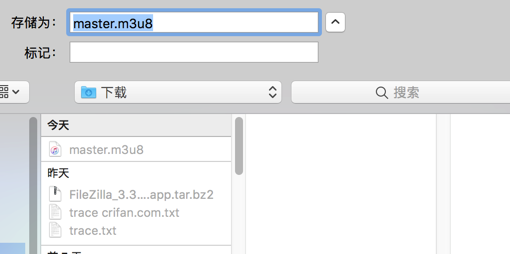

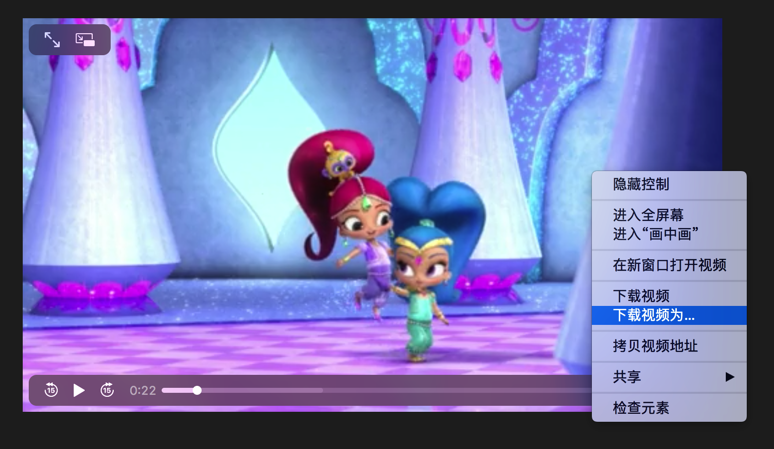

下载视频为：

能否保存

结果也是支持尝试去保存为m3u8

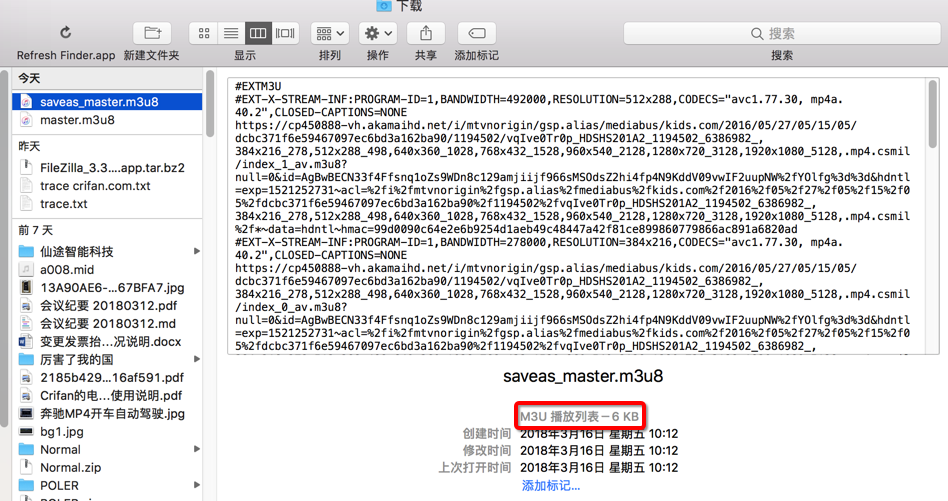

预览是：

内容是：

<code>#EXTM3U
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=492000,RESOLUTION=512x288,CODECS="avc1.77.30, mp4a.40.2",CLOSED-CAPTIONS=NONE
https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/index_1_av.m3u8?null=0&id=AgBwBECN33f4Ffsnq1oZs9WDn8c129amjiijf966sMSOdsZ2hi4fp4N9KddV09vwIF2uupNW%2fYOlfg%3d%3d&hdntl=exp=1521252731~acl=%2fi%2fmtvnorigin%2fgsp.alias%2fmediabus%2fkids.com%2f2016%2f05%2f27%2f05%2f15%2f05%2fdcbc371f6e59467097ec6bd3a162ba90%2f1194502%2fvqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil%2f*~data=hdntl~hmac=99d0090c64e2e6b9254d1aeb49c48447a42f81ce899860779866ac891a6820ad
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=278000,RESOLUTION=384x216,CODECS="avc1.77.30, mp4a.40.2",CLOSED-CAPTIONS=NONE
https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/index_0_av.m3u8?null=0&id=AgBwBECN33f4Ffsnq1oZs9WDn8c129amjiijf966sMSOdsZ2hi4fp4N9KddV09vwIF2uupNW%2fYOlfg%3d%3d&hdntl=exp=1521252731~acl=%2fi%2fmtvnorigin%2fgsp.alias%2fmediabus%2fkids.com%2f2016%2f05%2f27%2f05%2f15%2f05%2fdcbc371f6e59467097ec6bd3a162ba90%2f1194502%2fvqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil%2f*~data=hdntl~hmac=99d0090c64e2e6b9254d1aeb49c48447a42f81ce899860779866ac891a6820ad
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=937000,RESOLUTION=640x360,CODECS="avc1.77.30, mp4a.40.2",CLOSED-CAPTIONS=NONE
https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/index_2_av.m3u8?null=0&id=AgBwBECN33f4Ffsnq1oZs9WDn8c129amjiijf966sMSOdsZ2hi4fp4N9KddV09vwIF2uupNW%2fYOlfg%3d%3d&hdntl=exp=1521252731~acl=%2fi%2fmtvnorigin%2fgsp.alias%2fmediabus%2fkids.com%2f2016%2f05%2f27%2f05%2f15%2f05%2fdcbc371f6e59467097ec6bd3a162ba90%2f1194502%2fvqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil%2f*~data=hdntl~hmac=99d0090c64e2e6b9254d1aeb49c48447a42f81ce899860779866ac891a6820ad
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=1263000,RESOLUTION=768x432,CODECS="avc1.77.30, mp4a.40.2",CLOSED-CAPTIONS=NONE
https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/index_3_av.m3u8?null=0&id=AgBwBECN33f4Ffsnq1oZs9WDn8c129amjiijf966sMSOdsZ2hi4fp4N9KddV09vwIF2uupNW%2fYOlfg%3d%3d&hdntl=exp=1521252731~acl=%2fi%2fmtvnorigin%2fgsp.alias%2fmediabus%2fkids.com%2f2016%2f05%2f27%2f05%2f15%2f05%2fdcbc371f6e59467097ec6bd3a162ba90%2f1194502%2fvqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil%2f*~data=hdntl~hmac=99d0090c64e2e6b9254d1aeb49c48447a42f81ce899860779866ac891a6820ad
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=1822000,RESOLUTION=960x540,CODECS="avc1.77.30, mp4a.40.2",CLOSED-CAPTIONS=NONE
https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/index_4_av.m3u8?null=0&id=AgBwBECN33f4Ffsnq1oZs9WDn8c129amjiijf966sMSOdsZ2hi4fp4N9KddV09vwIF2uupNW%2fYOlfg%3d%3d&hdntl=exp=1521252731~acl=%2fi%2fmtvnorigin%2fgsp.alias%2fmediabus%2fkids.com%2f2016%2f05%2f27%2f05%2f15%2f05%2fdcbc371f6e59467097ec6bd3a162ba90%2f1194502%2fvqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil%2f*~data=hdntl~hmac=99d0090c64e2e6b9254d1aeb49c48447a42f81ce899860779866ac891a6820ad
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=2655000,RESOLUTION=1280x720,CODECS="avc1.640028, mp4a.40.2",CLOSED-CAPTIONS=NONE
https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/index_5_av.m3u8?null=0&id=AgBwBECN33f4Ffsnq1oZs9WDn8c129amjiijf966sMSOdsZ2hi4fp4N9KddV09vwIF2uupNW%2fYOlfg%3d%3d&hdntl=exp=1521252731~acl=%2fi%2fmtvnorigin%2fgsp.alias%2fmediabus%2fkids.com%2f2016%2f05%2f27%2f05%2f15%2f05%2fdcbc371f6e59467097ec6bd3a162ba90%2f1194502%2fvqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil%2f*~data=hdntl~hmac=99d0090c64e2e6b9254d1aeb49c48447a42f81ce899860779866ac891a6820ad
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=4527000,RESOLUTION=1920x1080,CODECS="avc1.640028, mp4a.40.2",CLOSED-CAPTIONS=NONE
https://cp450888-vh.akamaihd.net/i/mtvnorigin/gsp.alias/mediabus/kids.com/2016/05/27/05/15/05/dcbc371f6e59467097ec6bd3a162ba90/1194502/vqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil/index_6_av.m3u8?null=0&id=AgBwBECN33f4Ffsnq1oZs9WDn8c129amjiijf966sMSOdsZ2hi4fp4N9KddV09vwIF2uupNW%2fYOlfg%3d%3d&hdntl=exp=1521252731~acl=%2fi%2fmtvnorigin%2fgsp.alias%2fmediabus%2fkids.com%2f2016%2f05%2f27%2f05%2f15%2f05%2fdcbc371f6e59467097ec6bd3a162ba90%2f1194502%2fvqIve0Tr0p_HDSHS201A2_1194502_6386982_,384x216_278,512x288_498,640x360_1028,768x432_1528,960x540_2128,1280x720_3128,1920x1080_5128,.mp4.csmil%2f*~data=hdntl~hmac=99d0090c64e2e6b9254d1aeb49c48447a42f81ce899860779866ac891a6820ad
</code>

播放列表

然后再去想办法：

【已解决】Mac中如何下载m3u8为单独的视频文件
