【已解决】给MongoDB限制IP访问

已经知道了，想要限制特定的IP去访问连接mongo的话，是去修改配置文件：

vi /etc/mongod.conf

修改其中的bindIP

但是此处，需要搞清楚：

如何确定mongo的客户端的IP

mongo how check client ip

database – how to get connected clients in MongoDB – Stack Overflow

Mongodb list current connection – Database Administrators Stack Exchange

然后去本地去连接了远程的mongo了：

但是结果mongo shell中都还是无法打印出正在连接的ip

<code>[root@naturling-general-01 ~]# mongo
MongoDB shell version: 3.2.19
connecting to: test
&gt; db.currentOp().inprog
&gt; db.currentOp().inprog
&gt; db.currentOp(true).inprog
&gt; db.currentOp(true).inprog
</code>

进去对应数据库，也不行：

<code>&gt; use gridfs
switched to db gridfs
&gt; db.currentOp(true).inprog
</code>

去看服务端mongod的log：

<code>2018-04-08T17:32:04.543+0800 I NETWORK  [initandlisten] waiting for connections on port 27017
2018-04-08T17:32:12.235+0800 I NETWORK  [initandlisten] connection accepted from 127.0.0.1:35930 #1 (1 connection now open)
2018-04-08T17:32:12.237+0800 I ACCESS   [conn1] Unauthorized: not authorized on admin to execute command { getLog: "startupWarnings" }
2018-04-08T17:32:12.239+0800 I ACCESS   [conn1] Unauthorized: not authorized on admin to execute command { replSetGetStatus: 1.0, forShell: 1.0 }
2018-04-08T17:32:38.469+0800 I ACCESS   [conn1] Unauthorized: not authorized on admin to execute command { currentOp: 1.0 }
2018-04-08T17:32:56.056+0800 I NETWORK  [initandlisten] connection accepted from 112.4.64.141:49881 #2 (2 connections now open)
2018-04-08T17:32:56.208+0800 I ACCESS   [conn2] Successfully authenticated as principal gridfs on gridfs
2018-04-08T17:32:56.289+0800 I NETWORK  [initandlisten] connection accepted from 112.4.64.141:49882 #3 (3 connections now open)
2018-04-08T17:32:56.426+0800 I ACCESS   [conn3] Successfully authenticated as principal gridfs on gridfs
2018-04-08T17:32:56.513+0800 I NETWORK  [conn3] end connection 112.4.64.141:49882 (2 connections now open)
2018-04-08T17:32:56.513+0800 I NETWORK  [conn2] end connection 112.4.64.141:49881 (1 connection now open)
2018-04-08T17:33:01.485+0800 I NETWORK  [initandlisten] connection accepted from 112.4.64.141:49913 #4 (2 connections now open)
2018-04-08T17:33:01.588+0800 I ACCESS   [conn4] Successfully authenticated as principal gridfs on gridfs
2018-04-08T17:33:01.669+0800 I NETWORK  [initandlisten] connection accepted from 112.4.64.141:49914 #5 (3 connections now open)
2018-04-08T17:33:01.765+0800 I ACCESS   [conn5] Successfully authenticated as principal gridfs on gridfs
2018-04-08T17:33:01.864+0800 I NETWORK  [conn4] end connection 112.4.64.141:49913 (2 connections now open)
2018-04-08T17:33:01.865+0800 I NETWORK  [conn5] end connection 112.4.64.141:49914 (1 connection now open)
2018-04-08T17:33:05.178+0800 I NETWORK  [initandlisten] connection accepted from 112.4.64.141:49936 #6 (2 connections now open)
2018-04-08T17:33:05.301+0800 I ACCESS   [conn6] Successfully authenticated as principal gridfs on gridfs
2018-04-08T17:33:05.382+0800 I NETWORK  [initandlisten] connection accepted from 112.4.64.141:49937 #7 (3 connections now open)
2018-04-08T17:33:05.473+0800 I ACCESS   [conn7] Successfully authenticated as principal gridfs on gridfs
2018-04-08T17:33:07.218+0800 I NETWORK  [conn7] end connection 112.4.64.141:49937 (2 connections now open)
2018-04-08T17:33:07.219+0800 I NETWORK  [conn6] end connection 112.4.64.141:49936 (1 connection now open)
2018-04-08T17:33:09.472+0800 I ACCESS   [conn1] Unauthorized: not authorized on admin to execute command { currentOp: 1.0 }
2018-04-08T17:33:22.720+0800 I ACCESS   [conn1] Unauthorized: not authorized on admin to execute command { currentOp: 1.0, $all: true }
2018-04-08T17:34:11.478+0800 I NETWORK  [initandlisten] connection accepted from 112.4.64.141:50339 #8 (2 connections now open)
2018-04-08T17:34:11.614+0800 I ACCESS   [conn8] Successfully authenticated as principal gridfs on gridfs
2018-04-08T17:34:11.633+0800 I ACCESS   [conn8] Unauthorized: not authorized on admin to execute command { getLog: "startupWarnings" }
2018-04-08T17:34:11.713+0800 I ACCESS   [conn8] Unauthorized: not authorized on admin to execute command { replSetGetStatus: 1.0, forShell: 1.0 }
2018-04-08T17:34:23.127+0800 I ACCESS   [conn1] Unauthorized: not authorized on admin to execute command { currentOp: 1.0, $all: true }
2018-04-08T17:34:38.914+0800 I ACCESS   [conn1] Unauthorized: not authorized on admin to execute command { currentOp: 1.0, $all: true }
2018-04-08T17:36:42.435+0800 I NETWORK  [conn1] end connection 127.0.0.1:35930 (1 connection now open)
</code>

可以看出，先后3次的client的连接，都显示出了对应的ip（和端口）了：

112.4.64.141:49882

112.4.64.141:49913

112.4.64.141:49937

->从而确定了，此处的client的IP是：

112.4.64.141

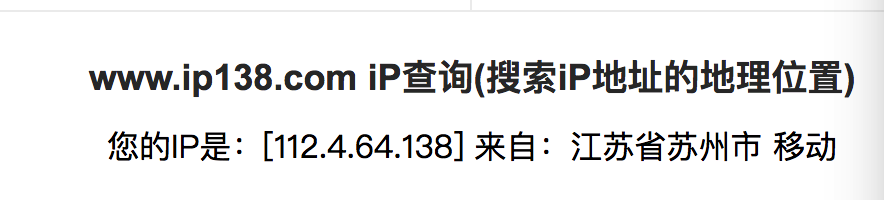

【已解决】用工具或网站查询自己本地的网络的IP地址

另外的要加的IP：

同事的公司的IP：

112.4.64.138

【已解决】MongoDB开启访问控制后currentOp出错：not authorized on admin to execute command

Configuration File Options — MongoDB Manual 3.6

对于：

net.bindIp

好像就是IP的列表，逗号隔开即可

所以接着去添加IP的限制：

<code>vi /etc/mongod.conf
     26 # network interfaces
     27 net:
     28   port: 12345
     29   bindIp: 127.0.0.1, 112.4.64.141 # Listen to specific IP
</code>

结果竟然重启mongod出错：

【已解决】添加了IP限制的mongod重启出错：Job for mongod.service failed because the control process exited with error code

【总结】

mongod的配置中的：

• bindIp：主要指的是，mongod去监听listen哪个IP（的哪个port）端口

• 所以此处的IP都指的是：服务器本身的IP

• 典型的是：

• 127.0.0.1

• 等价于：localhost

• 新版mongo默认值就是127.0.0.1

• 服务器的内网/局域网/私有 IP

• 比如此处的：172.16.141.197

• 可以通过ifconfig或阿里云ECS服务器控制后台中找到

• 而不是外网的，作为mongo的client的IP的限制

• 这点很容易搞混淆

• 也有很多人，包括我，之前搞错了，以为是用来限制，只允许特定外网IP能访问mongo的呢

• 如果有多个IP，用逗号隔开

• 比如：

• bindIp: 127.0.0.1,172.16.141.197

• 要注意：逗号中间不能有空格，否则会报错：

• getaddrinfo(” 112.4.64.141″) failed: Name or service not known

而想要实现：

限制外网访问mongo，只允许特定的IP进来访问mongo的话，则：

Mongo的配置中，是无法实现这个效果的。

只能换用其他办法，比如：

通过设置防火墙，添加：

只允许某些IP，入网方向，能够访问mongo的对应的端口

从而禁止掉其他的IP访问mongo

而此处的阿里云的ECS服务器中，可以通过设置安全组，实现和防火墙一样的效果。

具体设置办法：

进去阿里云控制后台-》云服务器 ECS-》安全组-〉你的ECS服务器所在的区域-》对应的ECS服务器-〉配置规则：

增加2个规则：

（1）规则1： 允许特定的IP（单个IP，某个IP地址段（内的所有的IP），某几个IP）允许访问某端口

（2）规则2：禁止掉，其他的IP访问该端口

举例如下：

详见：

【记录】通过阿里云ECS服务器安全组限制访问mongo的IP和端口

转载请注明：在路上 » 【已解决】给MongoDB限制IP访问
