    【已解决】Python实现小花生中addSignature的md5加密生成签名的逻辑

    Python crifan 1464浏览 0评论
    折腾：
    【已解决】小花生app中调用接口parentChildReadingBookQuery2时timestamp和signature生成的逻辑
    期间，需要把找到的java的md5参数加密的代码：
    com/huili/readingclub/model/ModelSecurity.java
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
      public static void addSignature(RequestParams paramRequestParams, String paramString)
      {
        Object localObject = paramString;
        if (paramString.startsWith("http://www.xiaohuasheng.cn:83")) {
          localObject = paramString.substring("http://www.xiaohuasheng.cn:83".length());
        }
        if (((String)localObject).startsWith("/UserService.svc/getToken/")) {
          return;
        }
        int i;
        if (StringUtil.isNullOrEmpty(MainActivity.userId)) {
          i = 0;
        } else {
          i = Integer.parseInt(MainActivity.userId);
        }
        int j = i;
        if (i < 1) {
          j = 0;
        }
        paramString = "";
        if (j != 0) {
          paramString = getToken(MainActivity.userId);
        }
        long l = DateUtils.get1970ToNowSeconds();
        if (j == 0)
        {
          paramString = new StringBuilder();
          paramString.append(l);
          paramString.append((String)localObject);
          paramString.append(“AyGt7ohMR!xx#N");
          paramString = StringUtil.md5(paramString.toString());
        }
        else
        {
          StringBuilder localStringBuilder = new StringBuilder();
          localStringBuilder.append(MainActivity.userId);
          localStringBuilder.append(l);
          localStringBuilder.append((String)localObject);
          localStringBuilder.append(paramString);
          localStringBuilder.append(“AyGt7ohMR!xx#N");
          paramString = StringUtil.md5(localStringBuilder.toString());
        }
        if (j != 0) {
          paramRequestParams.addHeader("userId", MainActivity.userId);
        }
        localObject = new StringBuilder();
        ((StringBuilder)localObject).append(l);
        ((StringBuilder)localObject).append("");
        paramRequestParams.addHeader("timestamp", ((StringBuilder)localObject).toString());
        paramRequestParams.addHeader("signature", paramString);
      }

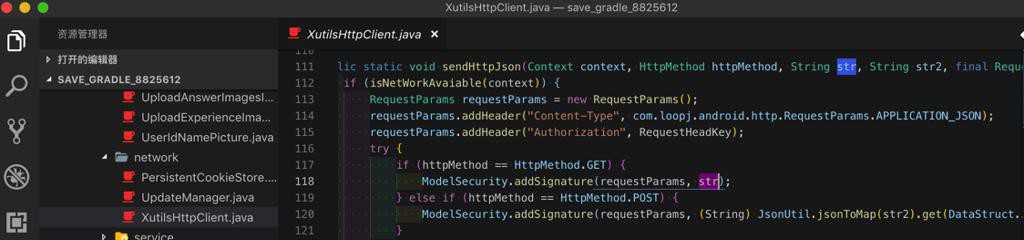

    其中调用的代码是：
    com/huili/readingclub/network/XutilsHttpClient.java
    ?
    1
    2
    3
    4
    5
          if (paramHttpMethod == HttpRequest.HttpMethod.GET) {
            ModelSecurity.addSignature(localRequestParams, paramString1);
          } else if (paramHttpMethod == HttpRequest.HttpMethod.POST) {
            ModelSecurity.addSignature(localRequestParams, (String)JsonUtil.jsonToMap(paramString2).get("J"));
          }
    想办法改造成python的。
    并且，找到一组数据，供测试和验证
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    POST /Reading.svc/parentChildReadingBookQuery2 HTTP/1.1
    Content-Type: application/json
    Authorization: NSTp9~)NwSfrXp@\
    userId: 1134723
    timestamp: 1553845899
    signature: c687d5dfa015246e6bdc6b3c27c2afea
    Content-Length: 212
    Host: www.xiaohuasheng.cn:83
    User-Agent: Mozilla/5.0 (Linux; U; Android 4.4.2; zh-cn; A0001 Build/KOT49H) AppleWebKit/533.1 (KHTML, like Gecko) Version/4.0 Mobile Safari/533.1
    Cookie: ASP.NET_SessionId=sjwpqfwt013elkehr2ytl0sq
    Cookie2: $Version=1
    Accept-Encoding: gzip
    Connection: keep-alive


    {"J":"{\"userId\":\"1134723\",\"fieldName\":\"\",\"fieldValue\":\"全部类别\",\"theStageOfTheChild\":\"\",\"parentalEnglishLevel\":\"\",\"supportingResources\":\"有音频\",\"offset\":20,\"limit\":10}","C":0}
    其中有
    J字段值
    timestamp值
    -》算出的signature是c687d5dfa015246e6bdc6b3c27c2afea
    需要用Python复原此过程
    然后就是想办法去写Python代码了。
    除了写代码还，还要分析对应逻辑。
    此处简单看了下，看来只需要关注：
    ?
    1
    2
    3
    4
    5
    6
    7
          StringBuilder localStringBuilder = new StringBuilder();
          localStringBuilder.append(MainActivity.userId);
          localStringBuilder.append(l);
          localStringBuilder.append((String)localObject);
          localStringBuilder.append(paramString);
          localStringBuilder.append(“AyGt7ohMR!xx#N");
          paramString = StringUtil.md5(localStringBuilder.toString());
    java substring
    Java substring() 方法 | 菜鸟教程
    而其中：
    • MainActivity.userId：应该就是字符串”1134723″
    • l：此处的时间戳
      • long l = DateUtils.get1970ToNowSeconds();
      • 此处直接赋值用于测试
    • localObject：
    • paramString：此处传入的J的值
    • 固定字符串：”AyGt7ohMR!xxx#N”
    然后去计算出md5值
    再去看看：
    StringUtil.md5
    com/huili/readingclub/utils/StringUtil.java
    ?
    1
    2
    3
    4
      public static String md5(String paramString)
      {
        return Const.getMD5Str(paramString);
      }
    com/huili/readingclub/utils/Const.java
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
      public static final String getMD5Str(String paramString)
      {
        char[] arrayOfChar = new char[16];
        char[] tmp6_5 = arrayOfChar;
        tmp6_5[0] = 48;
        char[] tmp12_6 = tmp6_5;
        tmp12_6[1] = 49;
        char[] tmp18_12 = tmp12_6;
        tmp18_12[2] = 50;
        char[] tmp24_18 = tmp18_12;
        tmp24_18[3] = 51;
        char[] tmp30_24 = tmp24_18;
        tmp30_24[4] = 52;
        char[] tmp36_30 = tmp30_24;
        tmp36_30[5] = 53;
        char[] tmp42_36 = tmp36_30;
        tmp42_36[6] = 54;
        char[] tmp49_42 = tmp42_36;
        tmp49_42[7] = 55;
        char[] tmp56_49 = tmp49_42;
        tmp56_49[8] = 56;
        char[] tmp63_56 = tmp56_49;
        tmp63_56[9] = 57;
        char[] tmp70_63 = tmp63_56;
        tmp70_63[10] = 97;
        char[] tmp77_70 = tmp70_63;
        tmp77_70[11] = 98;
        char[] tmp84_77 = tmp77_70;
        tmp84_77[12] = 99;
        char[] tmp91_84 = tmp84_77;
        tmp91_84[13] = 100;
        char[] tmp98_91 = tmp91_84;
        tmp98_91[14] = 101;
        char[] tmp105_98 = tmp98_91;
        tmp105_98[15] = 102;
        tmp105_98;
        try
        {
          paramString = paramString.getBytes();
          Object localObject = MessageDigest.getInstance("MD5");
          ((MessageDigest)localObject).update(paramString);
          paramString = ((MessageDigest)localObject).digest();
          int i = paramString.length;
          localObject = new char[i * 2];
          int j = 0;
          int k = 0;
          while (j < i)
          {
            int m = paramString[j];
            int n = k + 1;
            localObject[k] = ((char)arrayOfChar[(m >> 4 & 0xF)]);
            k = n + 1;
            localObject[n] = ((char)arrayOfChar[(m & 0xF)]);
            j++;
          }
          paramString = new String((char[])localObject);
          return paramString;
        }
        catch (Exception paramString) {}
        return null;
      }
    -》看起来，以及，希望是，普通的，md5加密算法
    -》去找找python中的md5：
    【已解决】Python中计算字符串的md5值
    结果不对：
    【已解决】为何Python中32字节的md值和小花生中getMD5Str计算出的md5值不同
    期间去：
    【已解决】小花生中如何得到getToken的计算逻辑以便得到正确的md5值可以正常请求接口
    此处得到了user的token：
    • userId是：1554276832
    • 返回的token是：40d2267f-359e-4526-951a-66519e5868c3

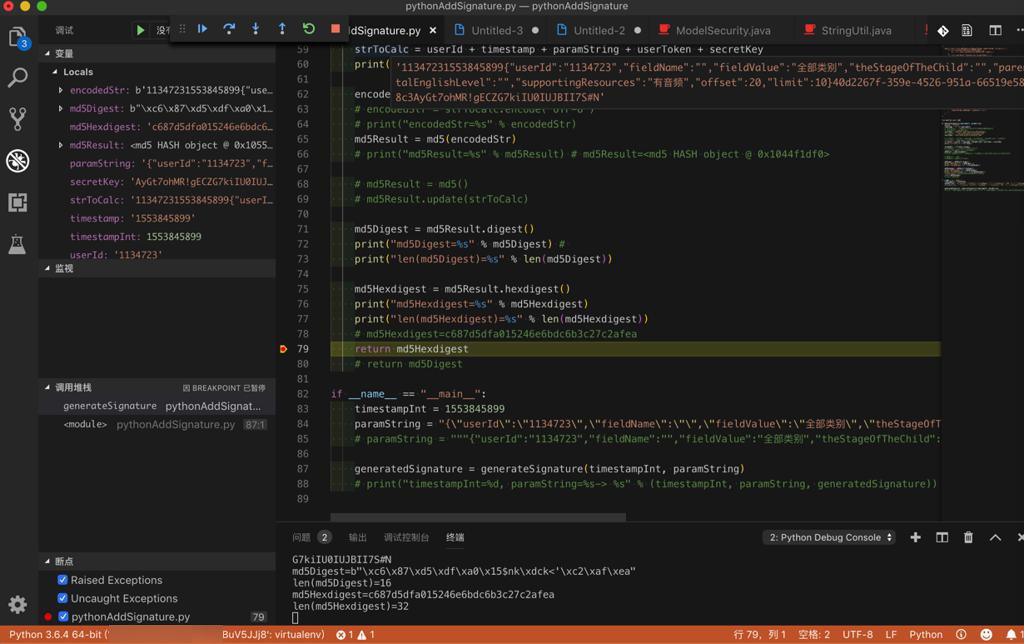

    接着再去试试模拟addSignature中的md5值生成的逻辑，看看值是否正确：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    from hashlib import md5

    def generateSignature(timestampInt, paramString):
        userId = "1134723"
        timestamp = "%s" % timestampInt
        # localObject = "/Reading.svc/parentChildReadingBookQuery2"
        # localObject = paramString
        userToken = "40d2267f-359e-4526-951a-66519e5868c3"
        # fixedSault = “AyGt7ohMR!xx#N"
        secretKey = “AyGt7ohMR!xx#N"

        # strToCalc = userId + timestamp + localObject + paramString + fixedSault
        # strToCalc = timestamp + localObject + fixedSault
        strToCalc = userId + timestamp + paramString + userToken + secretKey
        print("strToCalc=%s" % strToCalc)

        encodedStr = strToCalc.encode()
        # encodedStr = strToCalc.encode("UTF-8")
        # print("encodedStr=%s" % encodedStr)
        md5Result = md5(encodedStr)
        # print("md5Result=%s" % md5Result) # md5Result=<md5 HASH object @ 0x1044f1df0>

        # md5Result = md5()
        # md5Result.update(strToCalc)

        # md5Digest = md5Result.digest()
        # print("md5Digest=%s" % md5Digest) #
        # print("len(md5Digest)=%s" % len(md5Digest))

        md5Hexdigest = md5Result.hexdigest()
        print("md5Hexdigest=%s" % md5Hexdigest)
        print("len(md5Hexdigest)=%s" % len(md5Hexdigest))
        # md5Hexdigest=585ad2765d147c7e918478a4ce843ed2
        # md5Hexdigest=321ed614f7211147be90a45bbca94127
        # md5Hexdigest=defc3b231167e16932ea923d616e2d40
        # md5Hexdigest=c687d5dfa015246e6bdc6b3c27c2afea
        return md5Hexdigest
        # return md5Digest

    if __name__ == "__main__":
        timestampInt = 1553845899
        # paramString = "{\"userId\":\"1134723\",\"fieldName\":\"\",\"fieldValue\":\"全部类别\",\"theStageOfTheChild\":\"\",\"parentalEnglishLevel\":\"\",\"supportingResources\":\"有音频\",\"offset\":20,\"limit\":10}"
        paramString = """{"userId":"1134723","fieldName":"","fieldValue":"全部类别","theStageOfTheChild":"","parentalEnglishLevel":"","supportingResources":"有音频","offset":20,"limit":10}"""

        generatedSignature = generateSignature(timestampInt, paramString)
        # print("timestampInt=%d, paramString=%s-> %s" % (timestampInt, paramString, generatedSignature))

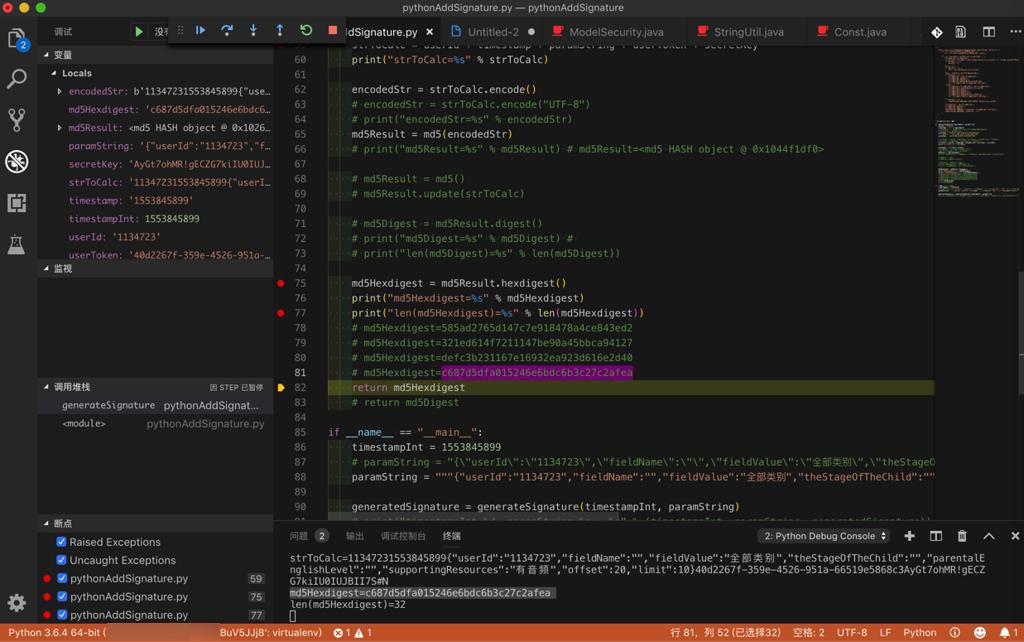

    即：
    ?
    1
    11347231553845899{"userId":"1134723","fieldName":"","fieldValue":"全部类别","theStageOfTheChild":"","parentalEnglishLevel":"","supportingResources":"有音频","offset":20,"limit":10}40d2267f-359e-4526-951a-66519e5868c3AyGt7ohMR!xxx#N

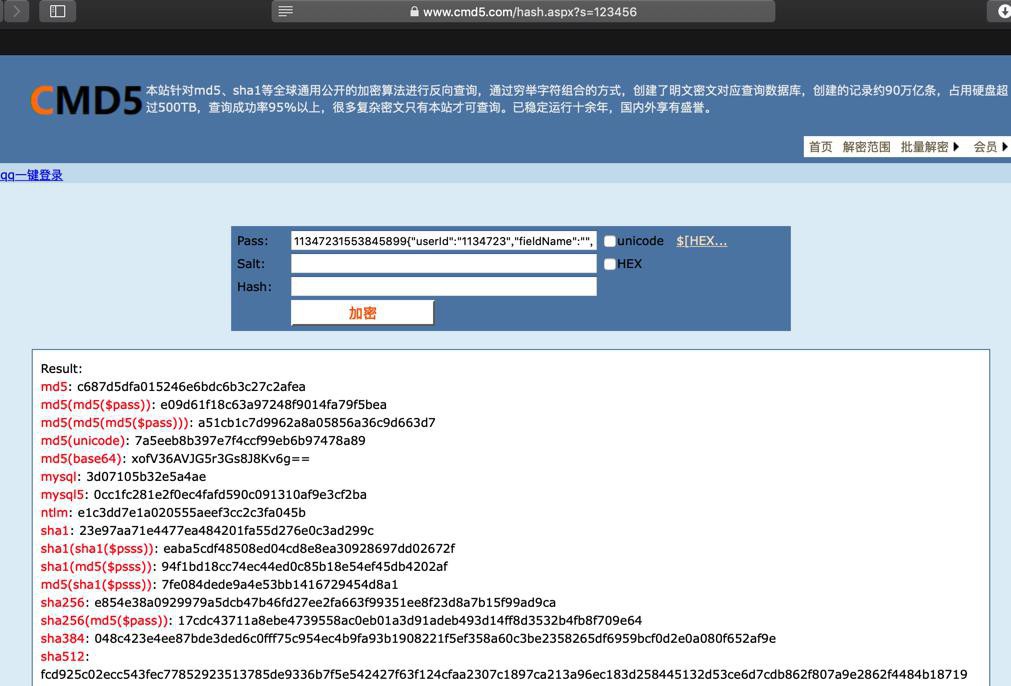

    算出的md5是：
    ?
    1
    c687d5dfa015246e6bdc6b3c27c2afea
    和最开始抓包抓到的：
    ?
    1
    signature: c687d5dfa015246e6bdc6b3c27c2afea
    是一致的了-》终于计算出正确的几个参数合并后的md5的signature值了。
    【总结】
    此处对于之前
    src/main/java/com/huili/readingclub/model/ModelSecurity.java
    的addSignature：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
        public static void addSignature(RequestParams requestParams, String str) {
            if (str.startsWith(MyConfig.SERVER_PORT)) {
                str = str.substring(MyConfig.SERVER_PORT.length());
            }
            if (!str.startsWith("/UserService.svc/getToken/")) {
                StringBuilder stringBuilder;
                int parseInt = StringUtil.isNullOrEmpty(MainActivity.userId) ? 0 : Integer.parseInt(MainActivity.userId);
                if (parseInt < 1) {
                    parseInt = 0;
                }
                String str2 = "";
                if (parseInt != 0) {
                    str2 = getToken(MainActivity.userId);
                }
                long j = DateUtils.get1970ToNowSeconds();
                if (parseInt == 0) {
                    stringBuilder = new StringBuilder();
                    stringBuilder.append(j);
                    stringBuilder.append(str);
                    stringBuilder.append(MyConfig.SECRET_KEY);
                    str = StringUtil.md5(stringBuilder.toString());
                } else {
                    StringBuilder stringBuilder2 = new StringBuilder();
                    stringBuilder2.append(MainActivity.userId);
                    stringBuilder2.append(j);
                    stringBuilder2.append(str);
                    stringBuilder2.append(str2);
                    stringBuilder2.append(MyConfig.SECRET_KEY);
                    str = StringUtil.md5(stringBuilder2.toString());
                }
                if (parseInt != 0) {
                    requestParams.addHeader(USER.USERID, MainActivity.userId);
                }
                stringBuilder = new StringBuilder();
                stringBuilder.append(j);
                stringBuilder.append("");
                requestParams.addHeader("timestamp", stringBuilder.toString());
                requestParams.addHeader("signature", str);
            }
        }
    中的md5核心计算逻辑：
    ?
    1
    2
    3
    4
    5
    6
    7
                    StringBuilder stringBuilder2 = new StringBuilder();
                    stringBuilder2.append(MainActivity.userId);
                    stringBuilder2.append(j);
                    stringBuilder2.append(str);
                    stringBuilder2.append(str2);
                    stringBuilder2.append(MyConfig.SECRET_KEY);
                    str = StringUtil.md5(stringBuilder2.toString());
    对应的Python实现是：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    from hashlib import md5

    def generateSignature(timestampInt, paramString):
        userId = "1134723"
        timestamp = "%s" % timestampInt
        # localObject = "/Reading.svc/parentChildReadingBookQuery2"
        # localObject = paramString
        userToken = "40d2267f-359e-4526-951a-66519e5868c3"
        # fixedSault = “AyGt7ohMR!xx#N"
        secretKey = “AyGt7ohMR!xx#N"

        # strToCalc = userId + timestamp + localObject + paramString + fixedSault
        # strToCalc = timestamp + localObject + fixedSault
        strToCalc = userId + timestamp + paramString + userToken + secretKey
        print("strToCalc=%s" % strToCalc)

        encodedStr = strToCalc.encode()
        # encodedStr = strToCalc.encode("UTF-8")
        # print("encodedStr=%s" % encodedStr)
        md5Result = md5(encodedStr)
        # print("md5Result=%s" % md5Result) # md5Result=<md5 HASH object @ 0x1044f1df0>

        # md5Result = md5()
        # md5Result.update(strToCalc)

        md5Digest = md5Result.digest()
        print("md5Digest=%s" % md5Digest) #
        print("len(md5Digest)=%s" % len(md5Digest))

        md5Hexdigest = md5Result.hexdigest()
        print("md5Hexdigest=%s" % md5Hexdigest)
        print("len(md5Hexdigest)=%s" % len(md5Hexdigest))
        # md5Hexdigest=c687d5dfa015246e6bdc6b3c27c2afea
        return md5Hexdigest
        # return md5Digest

    if __name__ == "__main__":
        timestampInt = 1553845899
        paramString = "{\"userId\":\"1134723\",\"fieldName\":\"\",\"fieldValue\":\"全部类别\",\"theStageOfTheChild\":\"\",\"parentalEnglishLevel\":\"\",\"supportingResources\":\"有音频\",\"offset\":20,\"limit\":10}"
        # paramString = """{"userId":"1134723","fieldName":"","fieldValue":"全部类别","theStageOfTheChild":"","parentalEnglishLevel":"","supportingResources":"有音频","offset":20,"limit":10}"""

        generatedSignature = generateSignature(timestampInt, paramString)
        # print("timestampInt=%d, paramString=%s-> %s" % (timestampInt, paramString, generatedSignature))
    运行效果：
    要计算的逻辑
    ?
    1
    userId + timestamp + paramString + userToken + secretKey
    对应的字符串
    ?
    1
    11347231553845899{"userId":"1134723","fieldName":"","fieldValue":"全部类别","theStageOfTheChild":"","parentalEnglishLevel":"","supportingResources":"有音频","offset":20,"limit":10}40d2267f-359e-4526-951a-66519e5868c3AyGt7ohMR!xxx#N
    的md5值是：
    c687d5dfa015246e6bdc6b3c27c2afea
    另外去网上验证：
    md5加密,sha1加密–cmd5
    也是对的：
    【后记20190410】
    后来发现，源码中：
    对于GET来说，参数还略有不同，原先的paramString其实就从POST的jValue变成了urlEndpoint了。
    所以最后代码改为：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
        def generateSignature(self, timestampInt, jValueOrUrlEndpoint):
            # print("generateSignature: timestampInt=%d, jValueOrUrlEndpoint=%s" % (timestampInt, jValueOrUrlEndpoint))
            # userId = "1134723"
            userId = gUserId
            timestamp = "%s" % timestampInt
            # localObject = "/Reading.svc/parentChildReadingBookQuery2"
            # localObject = jValueOrUrlEndpoint
            # userToken = "40d2267f-359e-4526-951a-66519e5868c3"
            userToken = gUserToken
            # fixedSault = “AyGt7ohMR!xx#N"
            # secretKey = “AyGt7ohMR!xx#N"
            secretKey = gSecretKey


            # strToCalc = userId + timestamp + localObject + jValueOrUrlEndpoint + fixedSault
            # strToCalc = timestamp + localObject + fixedSault
            strToCalc = userId + timestamp + jValueOrUrlEndpoint + userToken + secretKey
            # print("strToCalc=%s" % strToCalc)


            encodedStr = strToCalc.encode()
            # encodedStr = strToCalc.encode("UTF-8")
            # print("encodedStr=%s" % encodedStr)
            md5Result = md5(encodedStr)
            # print("md5Result=%s" % md5Result) # md5Result=<md5 HASH object @ 0x1044f1df0>


            # md5Result = md5()
            # md5Result.update(strToCalc)


            # md5Digest = md5Result.digest()
            # print("md5Digest=%s" % md5Digest) #
            # print("len(md5Digest)=%s" % len(md5Digest))


            md5Hexdigest = md5Result.hexdigest()
            # print("md5Hexdigest=%s" % md5Hexdigest)
            # print("len(md5Hexdigest)=%s" % len(md5Hexdigest))
            # md5Hexdigest=c687d5dfa015246e6bdc6b3c27c2afea
            # print("md5=%s from %s" % (md5Hexdigest, strToCalc))
            return md5Hexdigest
            # return md5Digest


        def generateCurrentHeaders(self, jValueOrUrlEndpoint):
            curHeaders = copy.deepcopy(gHeaders)
            curTimestampInt = getCurTimestamp()


            curTimestampStr = str(curTimestampInt)
            curHeaders["timestamp"] = curTimestampStr


            curSignature = self.generateSignature(curTimestampInt, jValueOrUrlEndpoint)
            curHeaders["signature"] = curSignature


            return curHeaders


    urlEndpoint = "/Reading.svc/viewEnglishSeries2/%s/%s" % (gUserId, seriePrimayKey)
    fullUrl = "%s%s" % (gServerPort, urlEndpoint)
    # /Reading.svc/viewEnglishSeries2/1134723/31
    curHeaders = self.generateCurrentHeaders(urlEndpoint)
    从而也支持GET类的api请求的signature参数的生成。

    转载请注明：在路上 » 【已解决】Python实现小花生中addSignature的md5加密生成签名的逻辑

    Post Views: 2,205
    继续浏览有关 的文章

    与本文相关的文章

    发表我的评论
    取消评论

    表情

    Hi，您需要填写昵称和邮箱！

    • 昵称 (必填)
    • 邮箱 (必填)
    • 网址
    82 queries in 0.472 seconds, using 22.24MB memory
