    【已解决】ReactJS的app中首页轮播图静止不循环滚动切换

    ReactJS crifan 3105浏览 0评论

    之前的别人的代码，基于：

    https://github.com/amio/re-carousel

    实现了首页的滚动轮播图，且在模拟器：

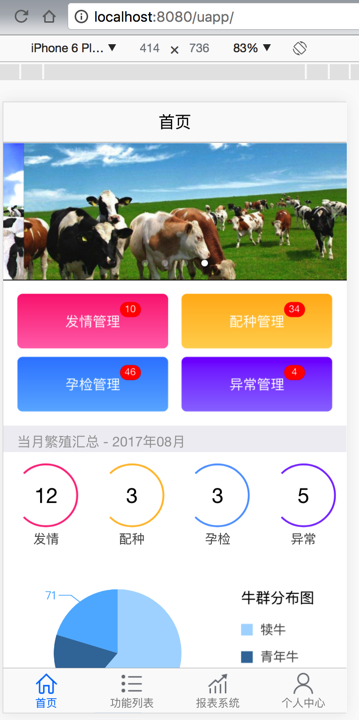

    Mac的Chrome的开发者工具，模拟iPhone6:

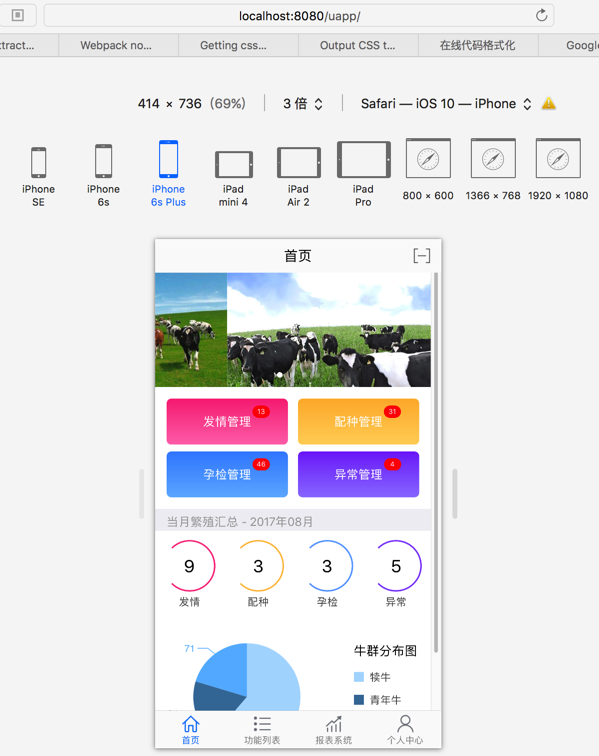

    Mac的Safari开发者工具，模拟iPhone：

    都是正常的，可以轮播的：

    但是仅限于鼠标（模拟触屏）拖动，才可以滚动

    不拖动，则始终无法轮播。

    即：拖动可以切换图片，但是无法自动轮播。

    但是到了手机上，不论是iPhone还是Android，连拖动都不能切换图片，更别说轮播了，更不工作。

    需要说明的是：

    手机上的是原生的app内部嵌入的webview，打开的首页，不知道内嵌webview是否有影响。

    此处相关代码为：

    import Carousel from ‘components/carousel’;
          <div class={style.container}>
            <Carousel style={{
              width: ‘7.5rem’,
              height: ‘3rem’
            }}>
              <img src={imgTop01} />
              <img src={imgTop02} />
              <img src={imgTop01} />
              <img src={imgTop02} />
            </Carousel>

    /src/components/carousel/index.js

    import { h, Component } from ‘preact’;
    import ReCarousel from ‘../re-carousel/carousel’;
    // see https://github.com/amio/re-carousel
    export default class Carousel extends Component {
      render() {
        return (
          <ReCarousel auto loop style={this.props.style}>
            {
              this.props.children.map(child => {
                return (
                  <div class=”swiper-slide” data-swiper-autoplay=”2000″>
                    {child}
                  </div>
                );
              })
            }
          </ReCarousel>
        );
      }
    }

    而

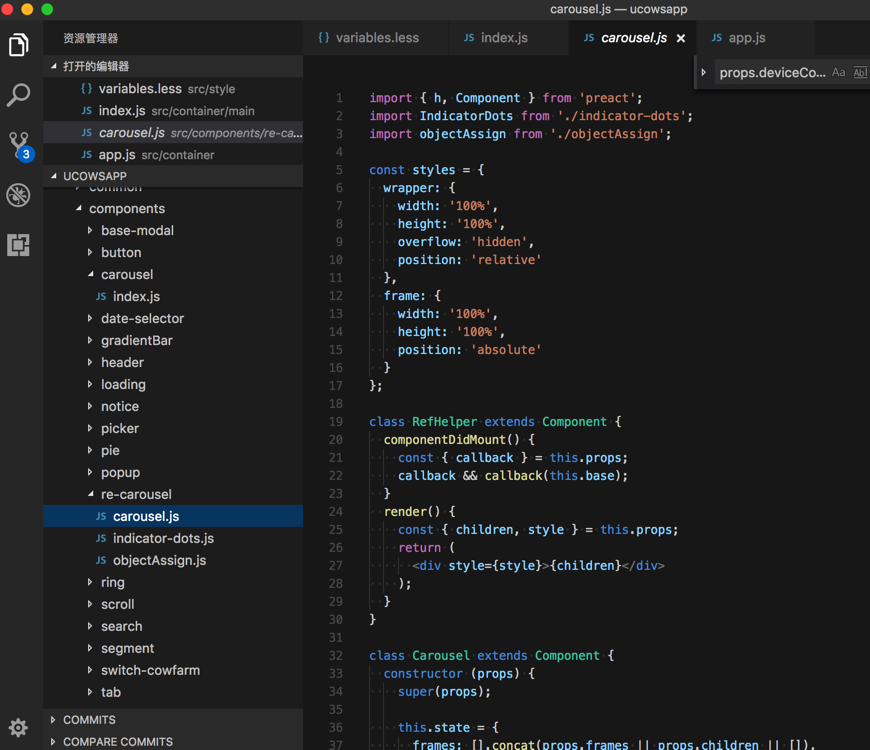

    src/components/re-carousel

    中代码很多：

    amio/re-carousel: Minimal carousel component for React.

    53个star还凑合。

    Reactjs Carousel not work

    reactjs – How to use the carousel component from Bootstrap 4 with React.js? – Stack Overflow

    jcursoli/react-carousel

    leandrowd/react-responsive-carousel: React.js Responsive Carousel (with Swipe)

    239个star

    demo：

    ‎react-responsive-carousel.js.org

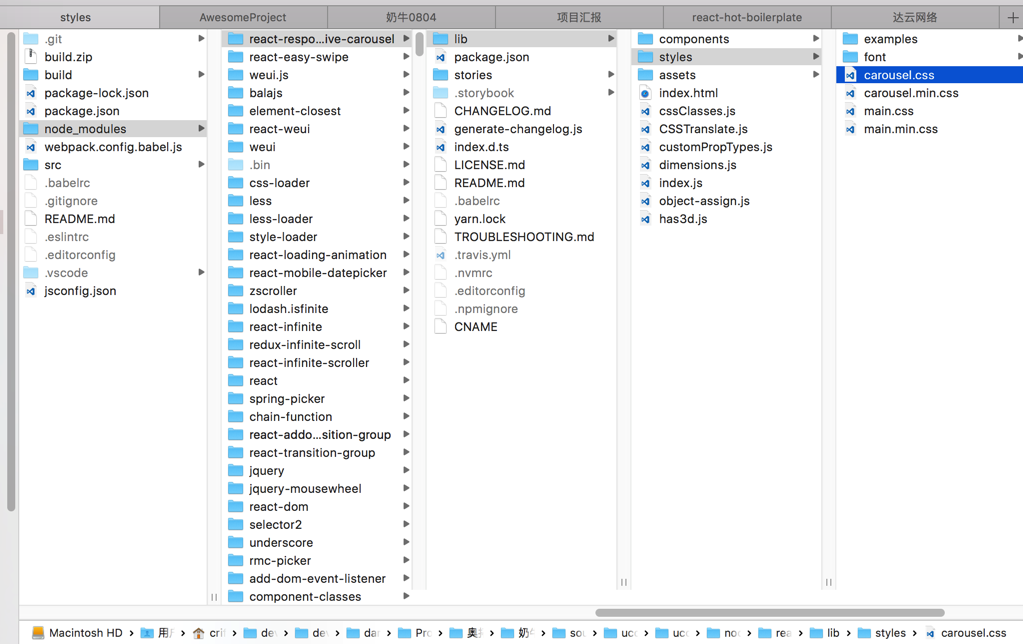

    react-responsive-carousel/index.js at master · leandrowd/react-responsive-carousel

    css – bootstrap carousel does not switch between slides when used in reactjs – Stack Overflow

    算了，还是基于原先的代码，去调试看看，为何没有自动开始轮播。

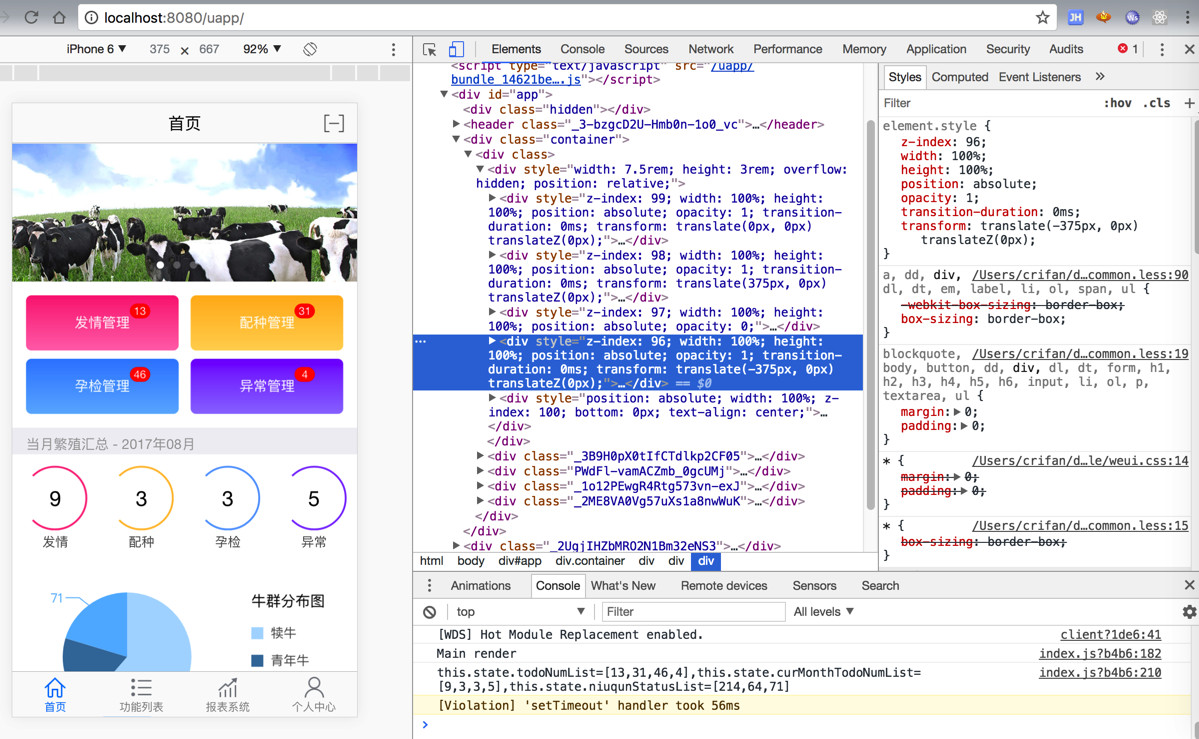

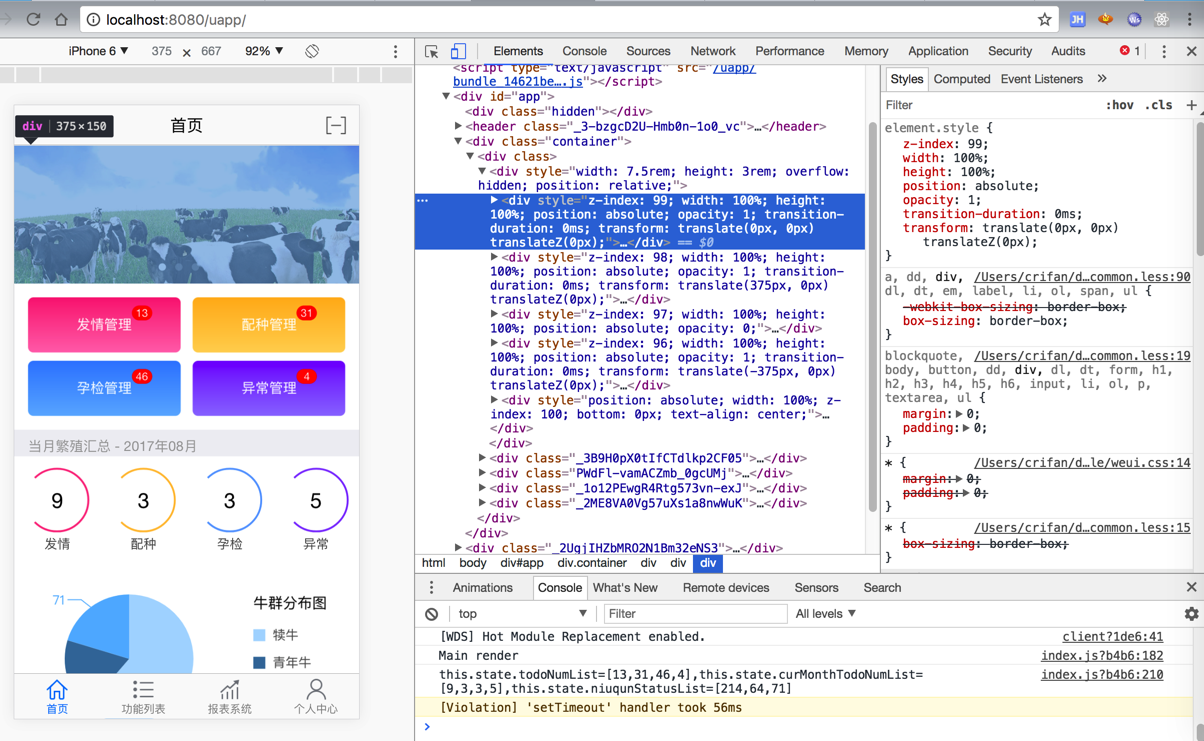

    调试发现，除了第1，3张图片正常：

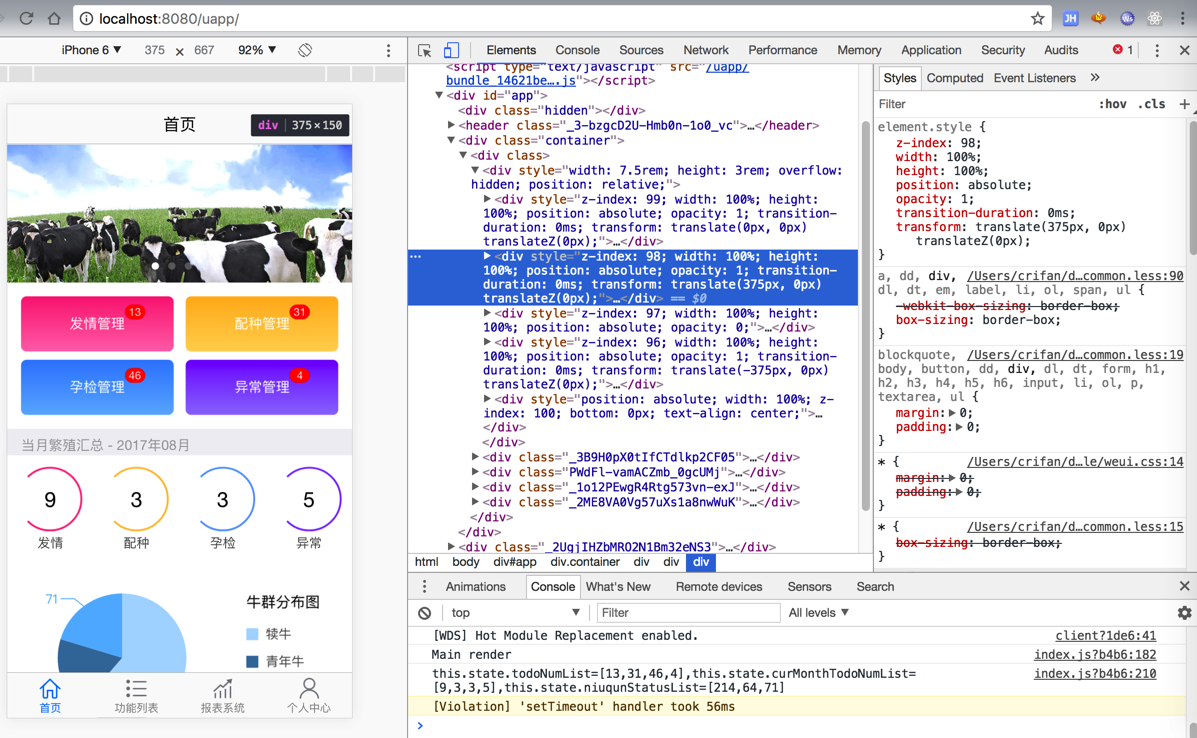

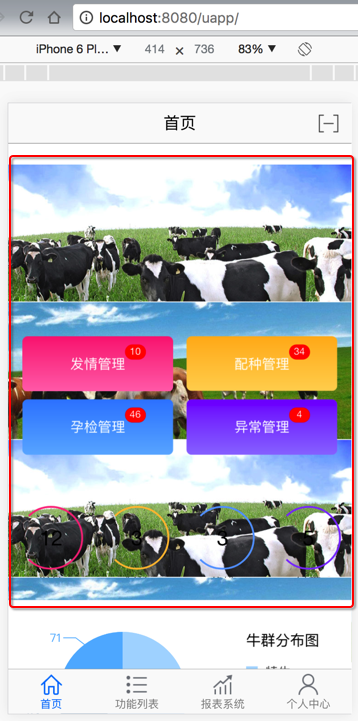

    第2，4，好像区域都不对啊:

    然后发现不能自动轮播的原因：

    之前代码写的逻辑错误，componentDidMount中，在调用this.prepareAutoSlide();之前，没有设置this.mounted = true;导致其内部是通过：

    if (this.props.loop && this.props.auto && this.mounted) {

    判断失败，无法执行自动轮播。

    解决办法：

    把：this.mounted = true;放到：this.prepareAutoSlide();前面：

      componentDidMount () {
        console.log(`Carousel componentDidMount`);
        //Note: make sure before prepareAutoSlide set mounted to true !!!
        this.mounted = true;
        this.prepareAutoSlide();
        for (let i = 1; i < this.state.frames.length; i++) {
          console.log(`i=${i},this.refMap[i]=${this.refMap[i]}`);
          this.refMap[i].style.opacity = 0;
        }
      }

    即可开启自动轮播。

    但是现在有个问题：

    可以自动轮播，但是触屏无法滑动切换图片。

    经过一番折腾，把代码中的EventListener的部分去掉，使用React自带的事件函数：

    import { h, Component } from ‘preact’;
    import IndicatorDots from ‘./indicator-dots’;
    import objectAssign from ‘./objectAssign’;
    const styles = {
      wrapper: {
        width: ‘100%’,
        height: ‘100%’,
        overflow: ‘hidden’,
        position: ‘relative’
      },
      frame: {
        width: ‘100%’,
        height: ‘100%’,
        position: ‘absolute’
      }
    };
    class RefHelper extends Component {
      componentDidMount() {
        const { callback } = this.props;
        callback && callback(this.base);
      }
      render() {
        const { children, style } = this.props;
        return (
          <div style={style}>{children}</div>
        );
      }
    }
    class Carousel extends Component {
      constructor (props) {
        super(props);
        this.state = {
          frames: [].concat(props.frames || props.children || []),
          current: 0
        };
        this.refMap = {};
        this.mounted = false;
        this.onTouchStart = this.onTouchStart.bind(this);
        this.onTouchMove = this.onTouchMove.bind(this);
        this.onTouchEnd = this.onTouchEnd.bind(this);
        this.autoSlide = this.autoSlide.bind(this);
        // this.prev = this.prev.bind(this);
        // this.next = this.next.bind(this);
        if (props.loop === false && props.auto) {
          console.warn(‘[re-carousel] Auto-slide only works in loop mode.’);
        }
        console.log(`Carousel constructor: props.auto=${props.auto},props.loop=${props.loop},props.style=${JSON.stringify(props.style)}`);
      }
      componentDidMount () {
        console.log(`Carousel componentDidMount`);
        //Note: make sure before prepareAutoSlide set mounted to true !!!
        this.mounted = true;
        this.prepareAutoSlide();
        for (let i = 1; i < this.state.frames.length; i++) {
          console.log(`i=${i},this.refMap[i]=${this.refMap[i]}`);
          this.refMap[i].style.opacity = 0;
        }
      }
      componentWillUnmount () {
        console.log(`Carousel componentWillUnmount`);
        this.clearAutoTimeout();
        this.mounted = false;
      }
      onTouchStart (e) {
        console.log(`Carousel onTouchStart`);
        if (this.state.total < 2) return;
        this.clearAutoTimeout();
        this.updateFrameSize();
        this.prepareSiblingFrames();
        const { pageX, pageY } = (e.touches && e.touches[0]) || e;
        this.setState({
          startX: pageX,
          startY: pageY,
          deltaX: 0,
          deltaY: 0
        });
        // this.base.addEventListener(‘touchmove’, this.onTouchMove, {passive: true});
        // this.base.addEventListener(‘mousemove’, this.onTouchMove, {passive: true});
        // this.base.addEventListener(‘touchend’, this.onTouchEnd, true);
        // this.base.addEventListener(‘mouseup’, this.onTouchEnd, true);
      }
      onTouchMove (e) {
        console.log(`Carousel onTouchMove`);
        if (e.touches && e.touches.length > 1) return;
        this.clearAutoTimeout();
        const { pageX, pageY } = (e.touches && e.touches[0]) || e;
        let deltaX = pageX – this.state.startX;
        let deltaY = pageY – this.state.startY;
        this.setState({
          deltaX,
          deltaY
        });
        // when reach frames edge in non-loop mode, reduce drag effect.
        if (!this.props.loop) {
          if (this.state.current === this.state.frames.length – 1) {
            deltaX < 0 && (deltaX /= 3);
            deltaY < 0 && (deltaY /= 3);
          }
          if (this.state.current === 0) {
            deltaX > 0 && (deltaX /= 3);
            deltaY > 0 && (deltaY /= 3);
          }
        }
        this.moveFramesBy(deltaX, deltaY);
      }
      onTouchEnd () {
        console.log(`Carousel onTouchEnd`);
        const direction = this.decideEndPosition();
        direction && this.transitFramesTowards(direction);
        // // cleanup
        // this.base.removeEventListener(‘touchmove’, this.onTouchMove);
        // this.base.removeEventListener(‘mousemove’, this.onTouchMove);
        // this.base.removeEventListener(‘touchend’, this.onTouchEnd, true);
        // this.base.removeEventListener(‘mouseup’, this.onTouchEnd, true);
        setTimeout(() => this.prepareAutoSlide(), this.props.duration);
      }
      decideEndPosition () {
        console.log(`Carousel decideEndPosition`);
        const { deltaX = 0, deltaY = 0, current, frames } = this.state;
        const { axis, loop, minMove } = this.props;
        switch (axis) {
          case ‘x’:
            if (loop === false) {
              if (current === 0 && deltaX > 0) return ‘origin’;
              if (current === frames.length – 1 && deltaX < 0) return ‘origin’;
            }
            if (Math.abs(deltaX) < minMove) return ‘origin’;
            return deltaX > 0 ? ‘right’ : ‘left’;
          case ‘y’:
            if (loop === false) {
              if (current === 0 && deltaY > 0) return ‘origin’;
              if (current === frames.length – 1 && deltaY < 0) return ‘origin’;
            }
            if (Math.abs(deltaY) < minMove) return ‘origin’;
            return deltaY > 0 ? ‘down’ : ‘up’;
          default:
        }
      }
      moveFramesBy (deltaX, deltaY) {
        console.log(`Carousel moveFramesBy: deltaX=${deltaX},deltaY=${deltaY}`);
        const { prev, current, next } = this.state.movingFrames;
        const { frameWidth, frameHeight } = this.state;
        switch (this.props.axis) {
          case ‘x’:
            translateXY(current, deltaX, 0);
            if (deltaX < 0) {
              translateXY(next, deltaX + frameWidth, 0);
            } else {
              translateXY(prev, deltaX – frameWidth, 0);
            }
            break;
          case ‘y’:
            translateXY(current, 0, deltaY);
            if (deltaY < 0) {
              translateXY(next, 0, deltaY + frameHeight);
            } else {
              translateXY(prev, 0, deltaY – frameHeight);
            }
            break;
          default:
        }
      }
      prepareAutoSlide () {
        console.log(`Carousel prepareAutoSlide: this.state.frames.length=${this.state.frames.length}`);
        if (this.state.frames.length < 2) return;
        this.clearAutoTimeout();
        this.updateFrameSize(() => {
          this.prepareSiblingFrames();
        });
        if (this.props.loop && this.props.auto && this.mounted) {
          // auto slide only avalible in loop mode
          const slideTimeoutID = setTimeout(this.autoSlide, this.props.interval);
          this.setState({ slider: slideTimeoutID });
        }
      }
      // auto slide to ‘next’ or ‘prev’
      autoSlide (rel) {
        console.log(`Carousel autoSlide: rel=${rel}`);
        this.clearAutoTimeout();
        switch (rel) {
          case ‘prev’:
            this.transitFramesTowards(this.props.axis === ‘x’ ? ‘right’ : ‘down’);
            break;
          case ‘next’:
          default:
            this.transitFramesTowards(this.props.axis === ‘x’ ? ‘left’ : ‘up’);
        }
        // prepare next move after animation
        setTimeout(() => this.prepareAutoSlide(), this.props.duration);
      }
      // next () {
      //   const { current, frames } = this.state;
      //   if (!this.props.loop && current === frames.length – 1) return false;
      //   this.autoSlide(‘next’);
      // }
      // prev () {
      //   if (!this.props.loop && this.state.current === 0) return false;
      //   this.autoSlide(‘prev’);
      // }
      clearAutoTimeout () {
        console.log(`Carousel clearAutoTimeout: this.state.slider=${this.state.slider}`);
        clearTimeout(this.state.slider);
      }
      updateFrameSize (cb) {
        console.log(`Carousel updateFrameSize`);
        const { width, height } = window.getComputedStyle(this.base);
        this.setState({
          frameWidth: parseFloat(width.split(‘px’)[0]),
          frameHeight: parseFloat(height.split(‘px’)[0])
        }, cb);
        console.log(`this.state.frameWidth=${this.state.frameWidth},this.state.frameHeight=${this.state.frameHeight}`);
      }
      prepareSiblingFrames () {
        console.log(`Carousel prepareSiblingFrames`);
        const siblings = {
          current: this.refMap[this.getFrameId()],
          prev: this.refMap[this.getFrameId(‘prev’)],
          next: this.refMap[this.getFrameId(‘next’)]
        };
        if (!this.props.loop) {
          this.state.current === 0 && (siblings.prev = undefined);
          this.state.current === this.state.frames.length – 1 && (siblings.next = undefined);
        }
        this.setState({ movingFrames: siblings });
        // prepare frames position
        translateXY(siblings.current, 0, 0);
        if (this.props.axis === ‘x’) {
          translateXY(siblings.prev, -this.state.frameWidth, 0);
          translateXY(siblings.next, this.state.frameWidth, 0);
        } else {
          translateXY(siblings.prev, 0, -this.state.frameHeight);
          translateXY(siblings.next, 0, this.state.frameHeight);
        }
        return siblings;
      }
      getFrameId (pos) {
        const { frames, current } = this.state;
        const total = frames.length;
        switch (pos) {
          case ‘prev’:
            return (current – 1 + total) % total;
          case ‘next’:
            return (current + 1) % total;
          default:
            return current;
        }
      }
      transitFramesTowards (direction) {
        const { prev, current, next } = this.state.movingFrames;
        const { duration, axis } = this.props;
        let newCurrentId = this.state.current;
        switch (direction) {
          case ‘up’:
            translateXY(current, 0, -this.state.frameHeight, duration);
            translateXY(next, 0, 0, duration);
            newCurrentId = this.getFrameId(‘next’);
            break;
          case ‘down’:
            translateXY(current, 0, this.state.frameHeight, duration);
            translateXY(prev, 0, 0, duration);
            newCurrentId = this.getFrameId(‘prev’);
            break;
          case ‘left’:
            translateXY(current, -this.state.frameWidth, 0, duration);
            translateXY(next, 0, 0, duration);
            newCurrentId = this.getFrameId(‘next’);
            break;
          case ‘right’:
            translateXY(current, this.state.frameWidth, 0, duration);
            translateXY(prev, 0, 0, duration);
            newCurrentId = this.getFrameId(‘prev’);
            break;
          default: // back to origin
            translateXY(current, 0, 0, duration);
            if (axis === ‘x’) {
              translateXY(prev, -this.state.frameWidth, 0, duration);
              translateXY(next, this.state.frameWidth, 0, duration);
            } else if (axis === ‘y’) {
              translateXY(prev, 0, -this.state.frameHeight, duration);
              translateXY(next, 0, this.state.frameHeight, duration);
            }
        }
        this.setState({ current: newCurrentId });
      }
      // debugFrames () {
      //   console.log(‘>>> DEBUG-FRAMES: current’, this.state.current)
      //   const len = this.state.frames.length
      //   for (let i = 0; i < len; ++i) {
      //     const ref = this.refMap[i]
      //     console.info(ref.innerText.trim(), ref.style.transform)
      //   }
      // }
      render () {
        const { frames, current } = this.state;
        // const { widgets, axis, loop, auto, interval } = this.props;
            // onMouseDown={this.onTouchStart}
        return (
          <div
            style={objectAssign(styles.wrapper, this.props.style)}
            onTouchMove={this.onTouchMove}
            onTouchStart={this.onTouchStart}
            onTouchEnd={this.onTouchEnd}
          >
            {
              frames.map((frame, i) => {
                const frameStyle = objectAssign({zIndex: 99 – i}, styles.frame);
                const cb = (el) => this.refMap[i] = el;
                return (
                  <RefHelper key={i} style={frameStyle} callback={cb}>
                    { frame }
                  </RefHelper>
                );
              })
            }
            {
              <IndicatorDots index={current} total={frames.length}/>
            }
            {
              // widgets && [].concat(widgets).map((Widget, i) => (
              //   <Widget
              //     key={i}
              //     index={current}
              //     total={frames.length}
              //     prevHandler={this.prev}
              //     nextHandler={this.next}
              //     axis={axis} loop={loop} auto={auto} interval={interval} />
              // ))
            }
            { this.props.frames && this.props.children }
          </div>
        );
      }
    }
    Carousel.defaultProps = {
      axis: ‘x’,
      auto: false,
      loop: false,
      interval: 5000,
      duration: 300,
      minMove: 42
    };
    function translateXY (el, x, y, duration = 0) {
      if (!el) return;
      el.style.opacity = ‘1’;
      // animation
      el.style.transitionDuration = duration + ‘ms’;
      el.style.webkitTransitionDuration = duration + ‘ms’;
      el.style.transfrom = `translate(${x}px, ${y}px)`;
      el.style.webkitTransform = `translate(${x}px, ${y}px) translateZ(0)`;
    }
    export default Carousel;

    但是结果是：

    可以自动轮播了

    可以手动滑动切换图片：向右滑动，正常切换图片。但是向左滑动，切换图片还是向右滑动的切换的。

    不爽。

    算了，去试试看起来不错的：

    leandrowd/react-responsive-carousel: React.js Responsive Carousel (with Swipe)

    ➜  ucowsapp git:(master) ✗ npm install react-responsive-carousel –save
    npm WARN [email protected] No repository field.
    npm WARN [email protected] No license field.
    added 2 packages in 17.155s

    然后去试试，然后效果很好。

    【总结】

    此处用之前的

    https://github.com/amio/re-carousel

    实现的轮播图，有各种问题，而且功能也不够强。

    虽然经过优化，但是还是存在一些小问题。

    最后换用

    https://github.com/leandrowd/react-responsive-carousel

    完美实现了轮播的效果。

    先去安装：

    npm install react-responsive-carousel –save

    代码：

    src/container/main/index.js

    import { Carousel } from ‘react-responsive-carousel’;
    import ‘react-responsive-carousel/lib/styles/carousel.css’;
      render() {
        return (
          <div class={style.container}>
            <Carousel
              axis=”horizontal”
              showThumbs={false}
              showStatus={false}
              showArrows={true}
              infiniteLoop={true}
              autoPlay={true}
              dynamicHeight={true}
              emulateTouch={true}
            >
              <div>
                  <img src={imgTop01} />
              </div>
              <div>
                  <img src={imgTop02} />
              </div>
              <div>
                  <img src={imgTop01} />
              </div>
              <div>
                  <img src={imgTop02} />
              </div>
            </Carousel>
     。。。
          </div>
        );
      }

    效果：

    注意：

    此处要（注意到人家的提示

    // Don’t forget to include the css in your page

    // <link rel=”stylesheet” href=”carousel.css”/>”

    去导入对应的css：

    此处的写法是：

    import ‘react-responsive-carousel/lib/styles/carousel.css’;

    当然，也可以减少体积，用：

    import ‘react-responsive-carousel/lib/styles/carousel.min.css’;

    否则，就会出现错乱的效果，图片从上到下平铺了：

    转载请注明：在路上 » 【已解决】ReactJS的app中首页轮播图静止不循环滚动切换

    Post Views: 1,119

    与本文相关的文章

    发表我的评论
    取消评论

    表情

    Hi，您需要填写昵称和邮箱！

    • 昵称 (必填)
    • 邮箱 (必填)
    • 网址
    89 queries in 0.215 seconds, using 22.20MB memory
