    【已解决】剧本编写系统中优化可拖动排序可编辑单元格的表格

    拖动 crifan 1486浏览 0评论
    折腾：
    【未解决】AntD Pro中支持剧本剧本编写时拖动排序单个对话

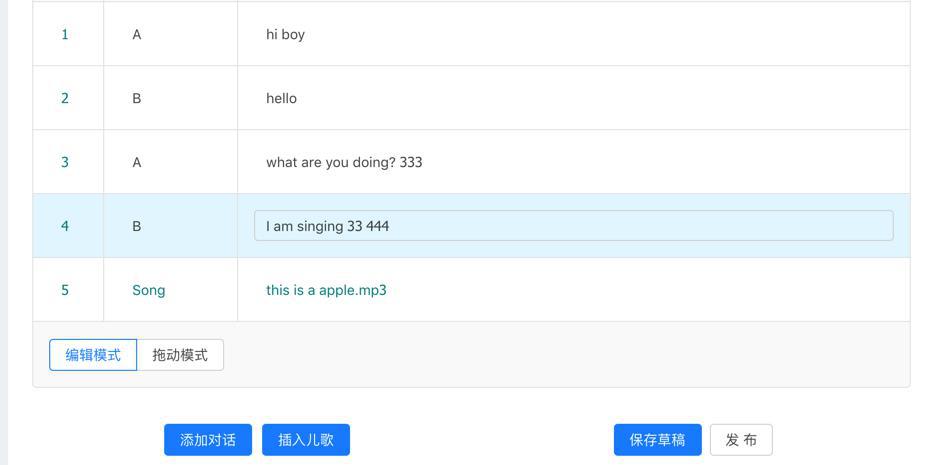

    期间，已经实现了基本的，既支持可拖动实现排序，也支持点击单元格支持实时编辑的表格了：
    接下来去优化：
    • 去把两种表格的代码合并
    • 把模式切换的按钮，放在table内部的底部的左边
    • 把分页去掉
    • 模式切换时row行高不同，需要优化成相同的行高
    去优化

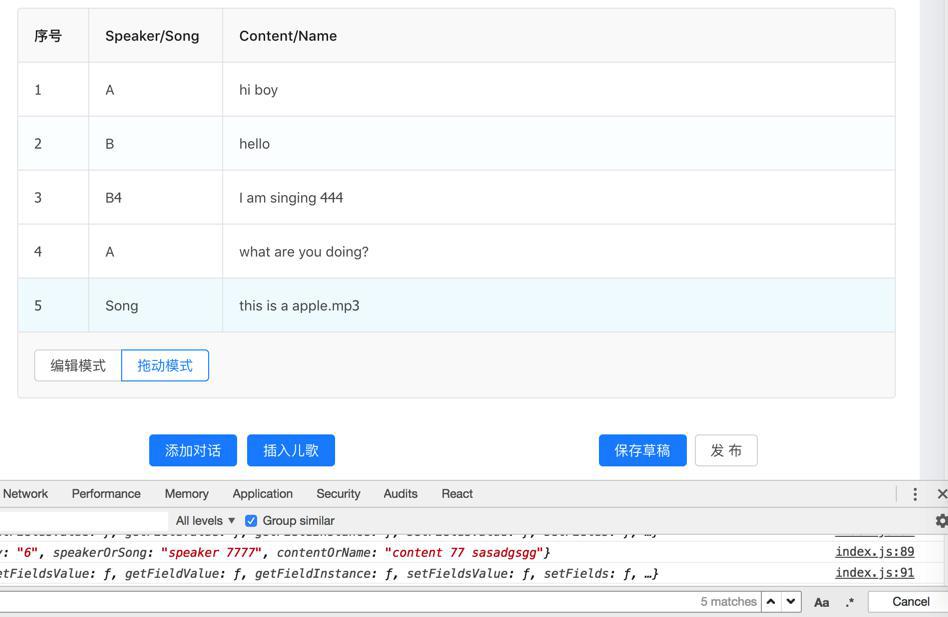

    经过一番调试，已经：
    • 合并两种表格的代码：最后再贴完整代码

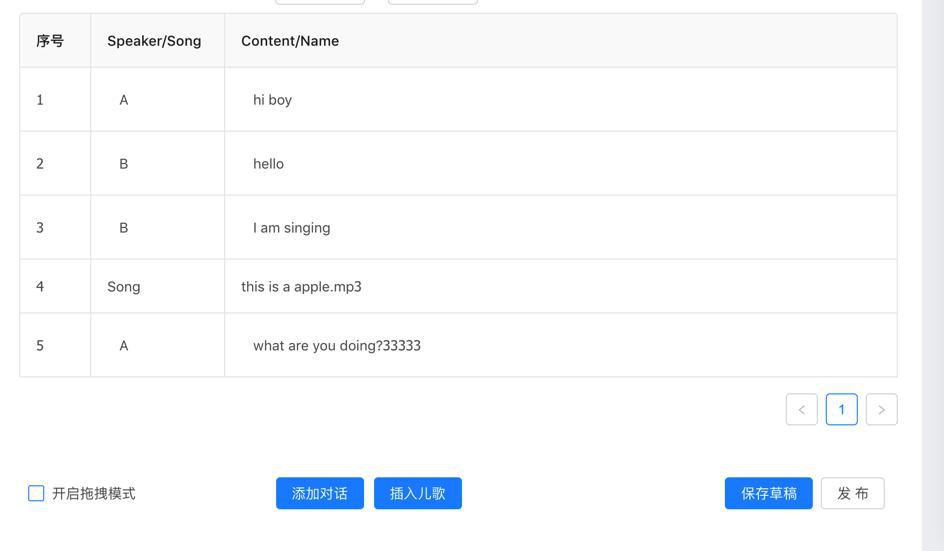

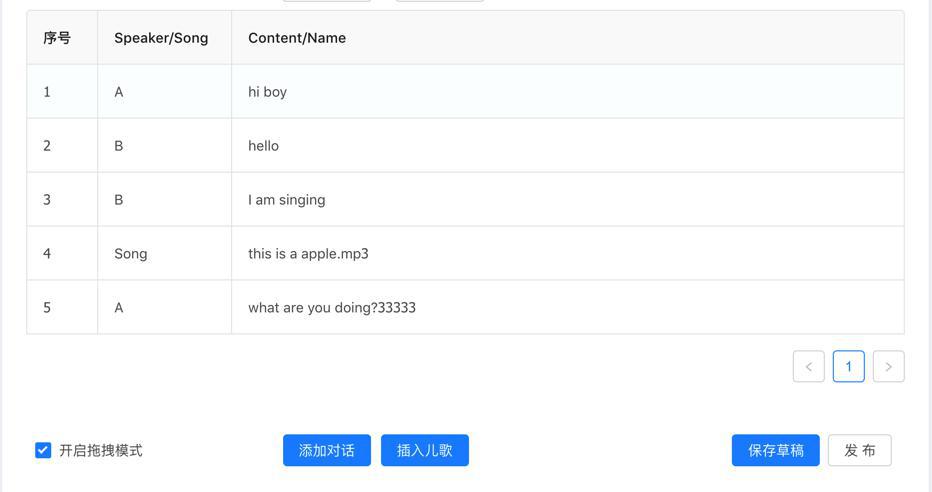

    • 去掉了分页：

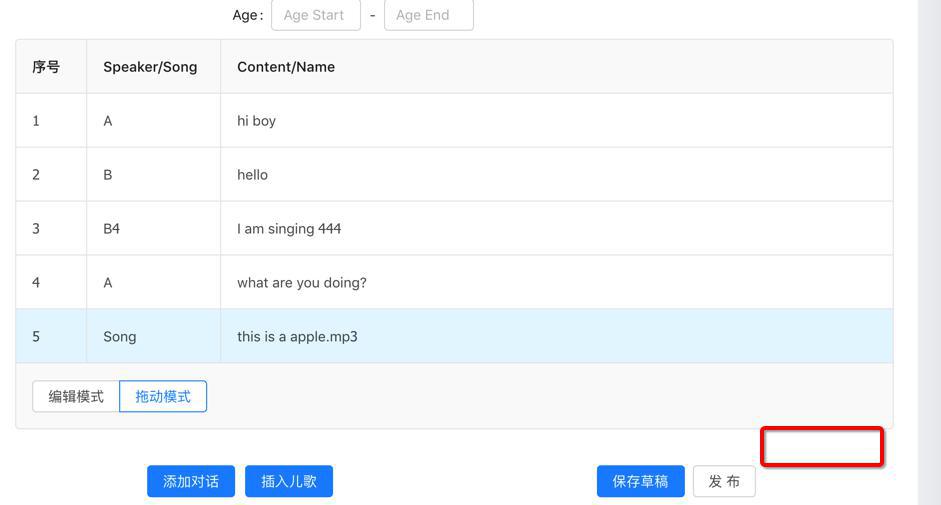

    • 加上了footer：
      • 注意一定要个字符串或者函数
    现在就剩下：

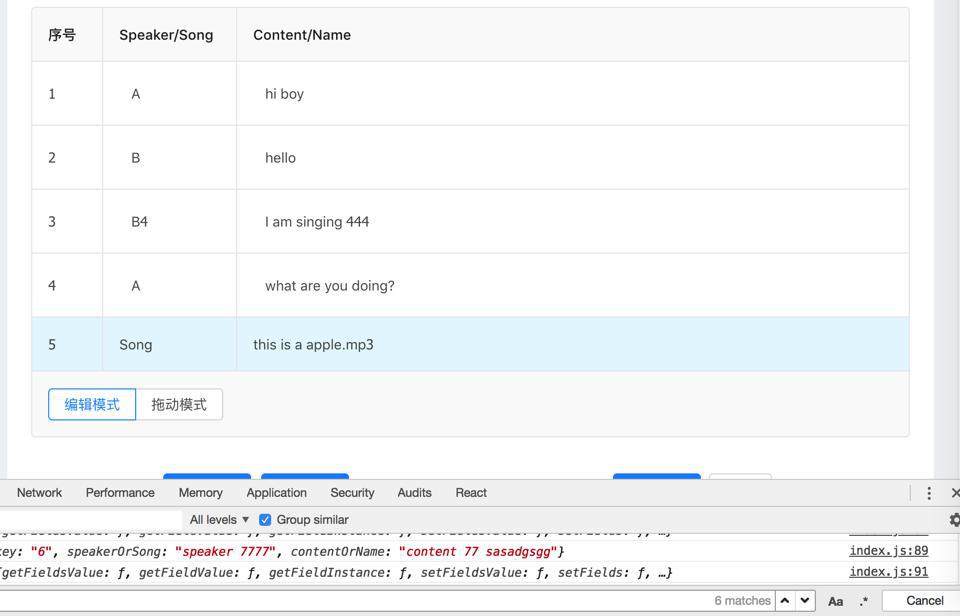

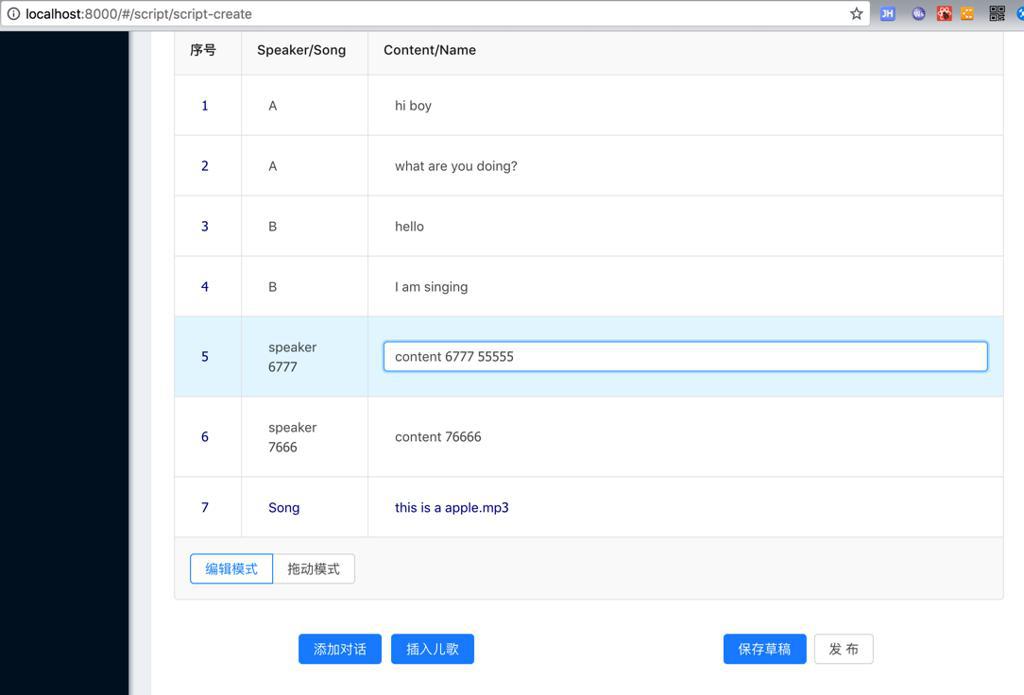

    需要在两种模式切换时，确保高度和对齐等显示效果一致

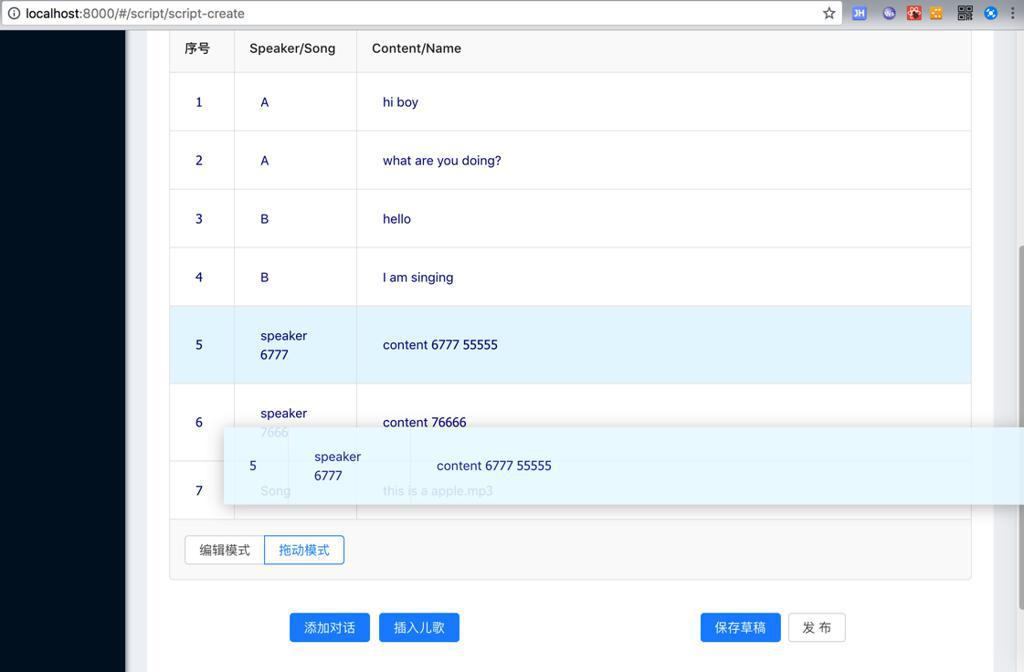

    因为现在是不一致：
    需要调节成一致效果
    先要去解决：

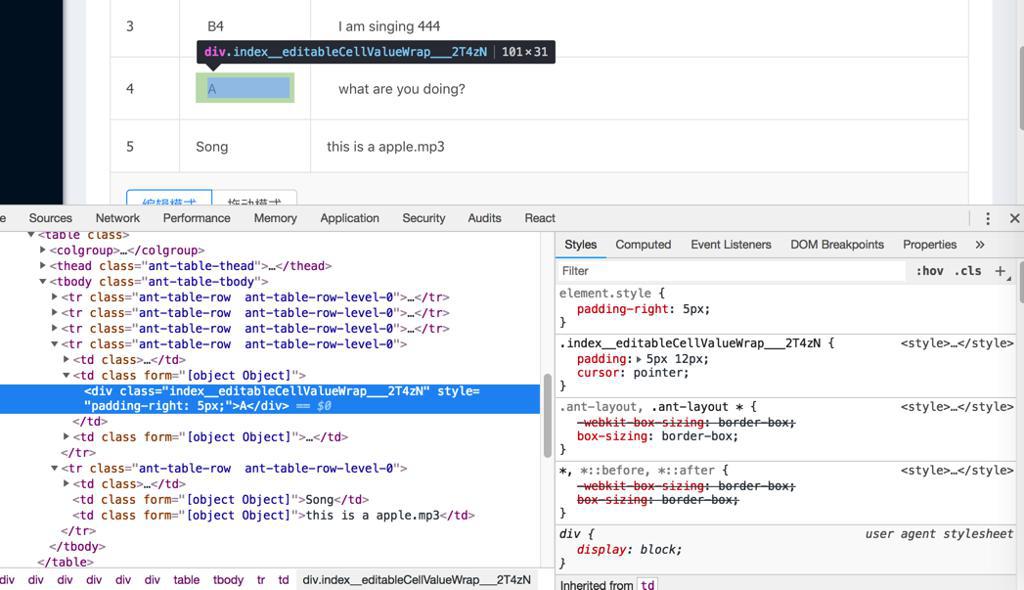

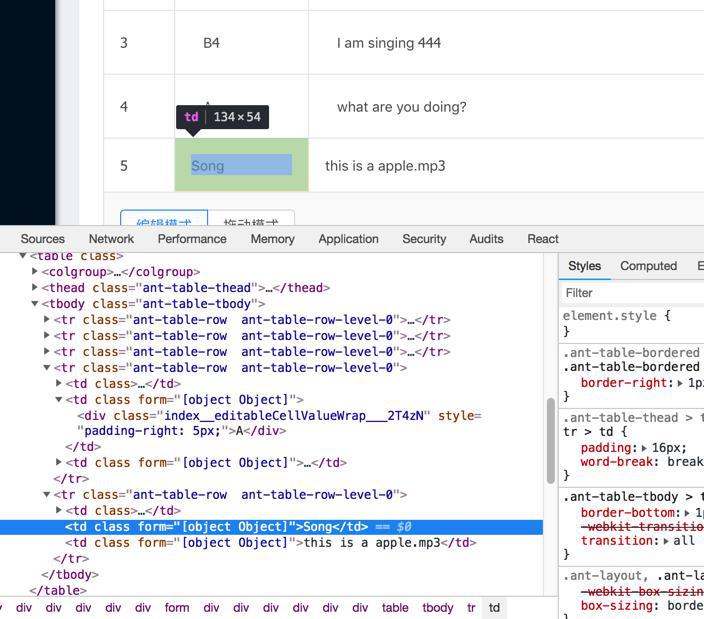

    可编辑的cell的左对齐：

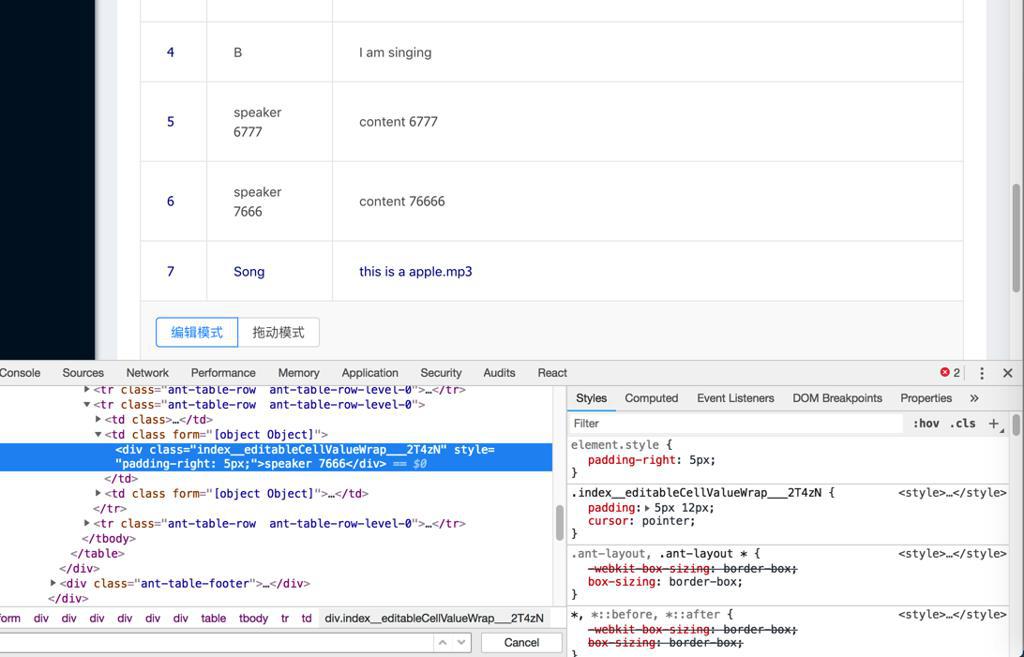

    和不可编辑的cell的左对齐：
    不一致的问题。
    相关代码是：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
        return (
          <td ref={node => (this.cell = node)} {...restProps}>
            {editable ? (
              <EditableContext.Consumer>
                {(form) => {
                  console.log("EditableContext.Consumer: form=", form)

                  this.form = form;
                  return (
                    editing ? (
                      <FormItem style={{ margin: 0 }}>
                        {form.getFieldDecorator(dataIndex, {
                          rules: [{
                            required: true,
                            message: `${title} is required.`,
                          }],
                          initialValue: record[dataIndex],
                        })(
                          <Input
                            ref={node => (this.input = node)}
                            onPressEnter={this.save}
                          />
                        )}
                      </FormItem>
                    ) : (
                      <div
                        className={styles.editableCellValueWrap}
                        // className={styles.nonEditableCellValueWrap}
                        style={{ paddingRight: 5 }}
                        onClick={this.toggleEdit}
                      >
                        {restProps.children}
                      </div>
                    )
                  );
                }}
              </EditableContext.Consumer>
            ) : restProps.children}
          </td>
        );
    和：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    @import '~antd/lib/style/themes/default.less';

    .editable-cell {
      position: relative;
    }

    // .nonEditableCellValueWrap {
    //   padding: 5px 12px;
    //   cursor: pointer;
    //   background: grey;
    // }

    .editableCellValueWrap {
      padding: 5px 12px;
      // padding: 2px 4px;
      cursor: pointer;
    }

    // .editable-row:hover .editableCellValueWrap {
    // .editableRow:hover .editableCellValueWrap {
    .editableCellValueWrap:hover {
      border: 1px solid #d9d9d9;
      border-radius: 4px;
      padding: 4px 11px;
      // padding: 2px 4px;
    }
    现在去调节
    然后最后用：
    /src/components/EditableCell/index.js
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
            // ) : restProps.children}
          ) : (
            <div
              className={styles.nonEditableCellValueWrap}
            >
              {restProps.children}
            </div>
          )
          }
    和：
    /src/components/EditableCell/index.less
    ?
    1
    2
    3
    4
    5
    .nonEditableCellValueWrap {
      padding: 5px 12px;
      cursor: auto;
      color: darkcyan;
    }

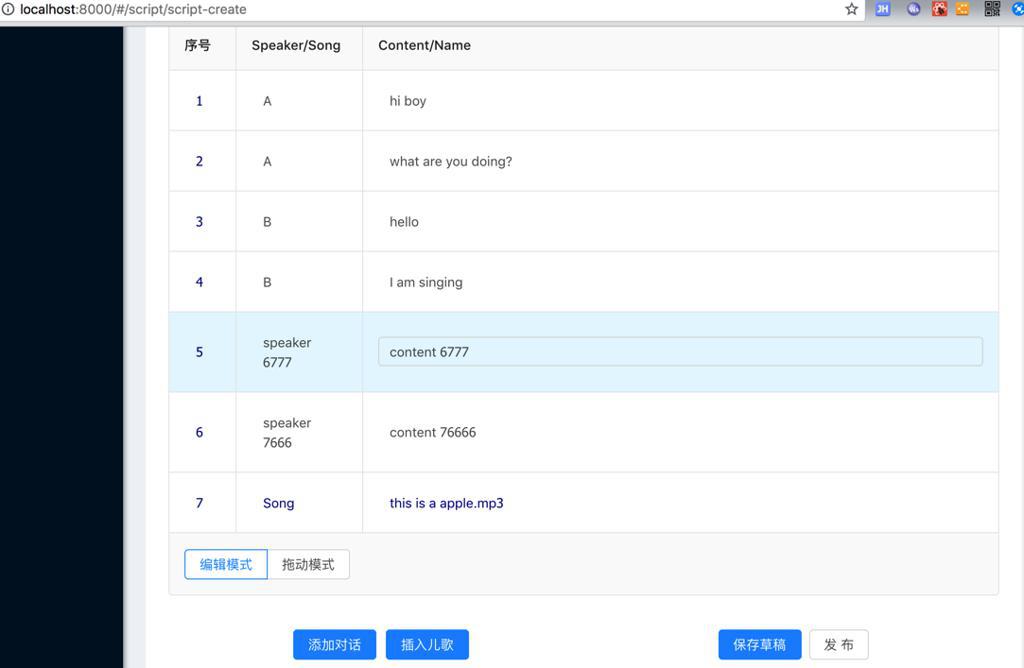

    达到效果：不可编辑的cell，左边对齐正常了，和可编辑的cell左边一致了：
    然后再去解决：
    拖拽模式和编辑模式之间，cell高度和padding等不同的情况
    而此处注意到之前的EditableTable中是：
    ?
    1
    2
    3
    4
    5
    6
      components = {
        body: {
          row: EditableFormRow,
          cell: EditableCell,
        },
      }
    注定了cell用EditableCell，其中EditableCell的render中对单个cell，指定style的
    而此处的DragableTable中，没有指定cell：
    ?
    1
    2
    3
    4
    5
      components = {
        body: {
          row: DragableBodyRow,
        },
      }
    所以没法直接指定cell的style样式
    所以想办法去指定
    参考：
    https://ant.design/components/table-cn/#components-table-demo-edit-cell
    去找找，table中是否可以直接指定cell的css
    rowClassName
    表格行的类名
    Function(record, index):string
    –
    好像是要找的，去看看用法举例
    巧了在antd pro中真的找到了实例：
    src/routes/Forms/TableForm.js
    ?
    1
    2
    3
    4
    5
    6
    7
          <Fragment>
            <Table
              ...
              rowClassName={record => {
                return record.editable ? styles.editable : '';
              }}
            />
    和：
    /src/routes/Forms/style.less
    ?
    1
    2
    3
    4
    5
    6
    .editable {
      td {
        padding-top: 13px !important;
        padding-bottom: 12.5px !important;
      }
    }
    所以可以参考这个写法，去试试
    然后是可以用代码：
    src/components/DragableTable/index.js
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    return (
      <Table
        pagination={false}
        footer={this.props.footer}
        rowClassName={(record, index) => {
          const curRowStyle = styles.sameWithEditableCell
          console.log("rowClassName: record=", record, " ,index=", index, ", curRowStyle=", curRowStyle)
          return curRowStyle
        }}
    /src/components/DragableTable/index.less
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    @import '~antd/lib/style/themes/default.less';

    .sameWithEditableCell {
      td {
        // padding: 5px 12px;
        // padding: 16px 18px;
        padding: 21px 28px !important;
        // color: darkcyan !important;
        color: darkblue !important;
        cursor: ns-resize !important;
      }
    }

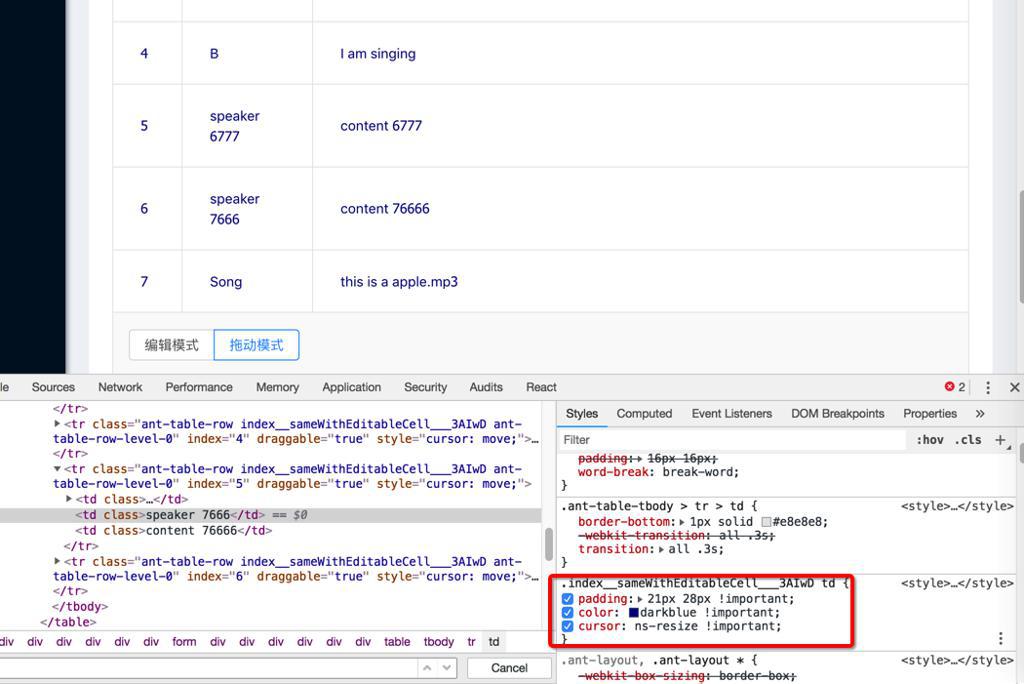

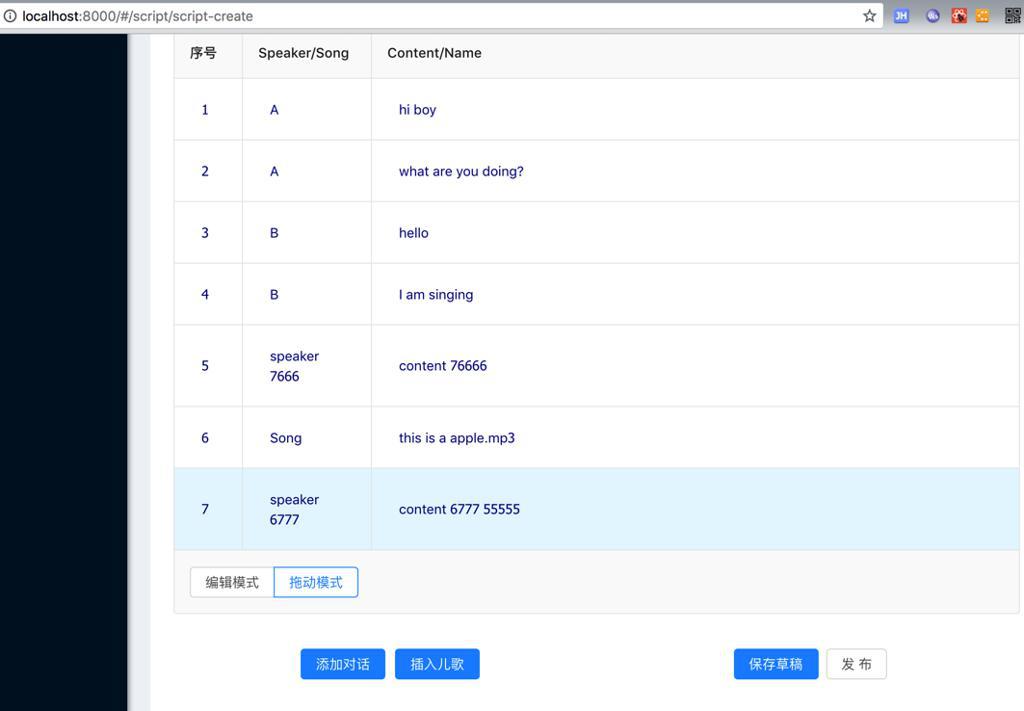

    实现，相同的效果的：
    【总结】
    至此，用如下代码：
    在外部调用合并后的 可拖动可编辑的表格：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    172
    173
    174
    175
    176
    177
    178
    179
    180
    import React, { PureComponent } from 'react'
    import { connect } from 'dva'
    import { routerRedux } from 'dva/router'
    import {
      Col,
      Form,
      Input,
      Button,
      Card,
      InputNumber,
      Select,
      message,
      Modal,
      // Checkbox,
    } from 'antd'
    import PageHeaderLayout from '../../layouts/PageHeaderLayout'
    ...

    // import DragableTable from '../../components/DragableTable'
    // import EditableTable from '../../components/EditableTable'
    import DragableEditableTable from '../../components/DragableEditableTable'

    const FormItem = Form.Item;
    const InputGroup = Input.Group;
    const { TextArea } = Input;
    const { Option } = Select;


    @connect(({ loading, script, topic }) => ({
      submitting: loading.effects['script/submitRegularForm'],
      script,
      topic,
    }))
    @Form.create()
    export default class ScriptCreate extends PureComponent {
      constructor(props) {
        super(props)

        // this.onDialogListChange = this.onDialogListChange.bind(this)
        // this.onEditableCellChange = this.onEditableCellChange.bind(this)
        // this.onDragableCheckChange = this.onDragableCheckChange.bind(this)
        this.syncDialogList = this.syncDialogList.bind(this)
        this.onTableModeChange = this.onTableModeChange.bind(this)

        this.state = {
          // dialogList: [],
          dialogList: this.demoItemList,
          // dragableChecked: false,
          tableMode: DragableEditableTable.TableMode.EDITABLE,

    ...
        }
      }

      /* eslint-disable */
      columns = [
        {
          title: '序号',
          width: "8%",
          editable: false,
          dataIndex: 'number',
          key: 'number',
          // rowKey: 'number',
          // fixed: 'left',
          render(text, record, index) {
            return index + 1;
          },
        },
        {
          width: "15%",
          editable: true,
          title: 'Speaker/Song',
          dataIndex: 'speakerOrSong',
          key: 'speakerOrSong',
        },
        {
          width: "75%",
          editable: true,
          title: 'Content/Name',
          dataIndex: 'contentOrName',
          key: 'contentOrName',
        },
      ]


      demoItemList = [
        {
          key: '1',
          speakerOrSong: 'A',
          contentOrName: 'hi boy',
          editable: true,
        },
        {
          key: '2',
          speakerOrSong: 'B',
          contentOrName: 'hello',
          editable: true,
        },
        {
          key: '3',
          speakerOrSong: 'A',
          contentOrName: 'what are you doing?',
          editable: true,
        },
        {
          key: '4',
          speakerOrSong: 'B',
          contentOrName: 'I am singing',
          editable: true,
        },
        {
          key: '5',
          speakerOrSong: 'Song',
          contentOrName: 'this is a apple.mp3',
          editable: false,
        },

      ]
    ...

      onTableModeChange(e) {
        console.log('onTableModeChange: e.target.value=', e.target.value);
        this.setState({ tableMode: e.target.value })
        console.log("after  change: this.state.tableMode=", this.state.tableMode)
      }

      syncDialogList(newDialogList){
        console.log("syncDialogList: newDialogList=", newDialogList)
        // console.log("before change: this.state.dialogList=", this.state.dialogList)
        this.setState({dialogList: newDialogList})
        console.log("after  change: this.state.dialogList=", this.state.dialogList)
      }

      render() {
        const { submitting, form } = this.props;
        const topicList = this.props.topic.topics;
        const { getFieldDecorator } = this.props.form;
    ...

        return (
          <PageHeaderLayout
            title="新建剧本"
          >
            <Card bordered={false}>
              ...

                {/* {this.buildDialog()} */}

                {/* {
                  this.state.dragableChecked ? (
                    <DragableTable
                      columns={this.columns}
                      itemList={this.state.dialogList}
                      onDragableListChange={this.onDialogListChange}
                    />
                  ) : (
                    <EditableTable
                      columns={this.columns}
                      itemList={this.state.dialogList}
                      onEditableCellChange={this.onEditableCellChange}
                      form={this.props.form}
                    />
                  )
                } */}

                <DragableEditableTable
                  tableMode={this.state.tableMode}
                  columns={this.columns}
                  itemList={this.state.dialogList}
                  onTableDataChange={this.syncDialogList}
                  onTableModeChange={this.onTableModeChange}
                  form={this.props.form}
                />
    ...
              </Form>
            </Card>
          </PageHeaderLayout>
        );
      }
    }
    而合并后的表格是：
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    import React from 'react'
    import {
      Radio,
    } from 'antd'
    import DragableTable from '../DragableTable'
    import EditableTable from '../EditableTable'

    const RadioButton = Radio.Button
    const RadioGroup = Radio.Group

    export default class DragableEditableTable extends
    React.Component
     {
      /* eslint-disable */
      static TableMode = {
        EDITABLE: "editable",
        DRAGABLE: "dragable",
      }
      /* eslint-disable */
      // static defaultMode = DragableEditableTable.TableMode.DRAGABLE
      // static defaultMode = DragableEditableTable.TableMode.EDITABLE

      // state = {
      //   // mode: this.TableMode.EDITABLE,
      //   // mode: this.defaultMode,
      //   // mode: DragableEditableTable.defaultMode,
      //   // columns: [],
      //   // itemList: [],
      // }

      constructor(props){
        super(props)

        // this.onTableModeChange = this.onTableModeChange.bind(this)
        // this.onTableDataChange = this.onTableDataChange.bind(this)
        this.radioSelectFooter = this.radioSelectFooter.bind(this)

        console.log("DragableEditableTable constructor: props=", props)

        // console.log("this.props.columns=", this.props.columns)
        console.log("this.props.itemList=", this.props.itemList)
        console.log("this.props.tableMode=", this.props.tableMode)

        // this.state.itemList = this.props.itemList
        // this.state.columns = this.props.columns
        // console.log("this.state.mode=", this.state.mode)
      }

      // onTableModeChange(e) {
      //   console.log('onTableModeChange: e.target.value=', e.target.value);
      //   this.setState({
      //     mode: e.target.value,
      //   })
      // }

      // onTableDataChange(newDialogList){
      //   // update current state
      //   this.setState({dialogList: newDialogList})
      //   // callback parent to sync state
      //   this.props.onTableDataChange(newDialogList)
      // }

      // radioSelectFooter(onRadioChange, defautMode) {
      radioSelectFooter() {
        return (
          // <RadioGroup onChange={this.onTableModeChange} defaultValue={DragableEditableTable.defaultMode}>
          // <RadioGroup onChange={onRadioChange} defaultValue={defautMode}>
          <RadioGroup onChange={this.props.onTableModeChange} defaultValue={this.props.tableMode}>
            <RadioButton value={DragableEditableTable.TableMode.EDITABLE}>编辑模式</RadioButton>
            <RadioButton value={DragableEditableTable.TableMode.DRAGABLE}>拖动模式</RadioButton>
          </RadioGroup>
        )
      }

      render() {
        console.log("DragableEditableTable render: this.props.itemList=", this.props.itemList)

        const commonColumns = this.props.columns
        const commonItemList = this.props.itemList
        // const commonModeSelectorFooter = this.radioSelectFooter(this.props.onTableModeChange, this.props.tableMode)
        const commonModeSelectorFooter = this.radioSelectFooter
        const commonDataChange = this.props.onTableDataChange

        console.log("commonColumns=", commonColumns)
        console.log("commonItemList=", commonItemList)
        console.log("commonModeSelectorFooter=", commonModeSelectorFooter)
        console.log("commonDataChange=", commonDataChange)

        return (
          // {
            this.props.tableMode === DragableEditableTable.TableMode.DRAGABLE ? (
              <DragableTable
                columns={commonColumns}
                itemList={commonItemList}
                footer={commonModeSelectorFooter}
                onDragableListChange={commonDataChange}
              />
            ) : (
              <EditableTable
                columns={commonColumns}
                itemList={commonItemList}
                footer={commonModeSelectorFooter}
                onEditableCellChange={commonDataChange}
                form={this.props.form}
              />
            )
          // }
        )
      }
    }

    DragableEditableTable.defaultProps = {
      tableMode: DragableEditableTable.TableMode.EDITABLE,
      itemList: [],
      onTableDataChange: (newItemList) => {},
      onTableModeChange: (newMode) => {},
    };
    内部调用的分别是：
    /src/components/EditableTable/index.js
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    import React from 'react'
    import { EditableFormRow, EditableCell } from '../EditableCell'
    import { Table } from 'antd'

    export default class EditableTable extends
    React.Component
     {
      constructor(props){
        super(props)
        console.log("EditableTable constructor: props=", props)

        console.log("this.props.columns=", this.props.columns)
        console.log("this.props.itemList=", this.props.itemList)
        console.log("this.props.onEditableCellChange=", this.props.onEditableCellChange)

        this.handleSaveEditableCell = this.handleSaveEditableCell.bind(this)

        this.state.itemList = this.props.itemList;
        this.state.columns = this.props.columns;
      }

      state = {
        columns: [],
        itemList: [],
      }

      // componentWillReceiveProps(nextProps){
      //   console.log("EditableTable componentWillReceiveProps: nextProps=", nextProps)
      //   console.log("this.props.itemList=", this.props.itemList)
      //   if (this.props.itemList) {
      //     this.setState({itemList: this.props.itemList})
      //     console.log("updated this.state.itemList=", this.state.itemList)
      //   }
      // }

      components = {
        body: {
          row: EditableFormRow,
          cell: EditableCell,
        },
      }

      handleSaveEditableCell = (row) => {
        console.log("handleSaveEditableCell: row=", row)

        const newItemList = [...this.state.itemList]
        console.log("newItemList=", newItemList)
        const index = newItemList.findIndex(item => row.key === item.key)
        console.log("index=", index)
        const item = newItemList[index]
        console.log("item=", item)
        newItemList.splice(index, 1, {
          ...item,
          ...row,
        })
        console.log("newItemList=", newItemList)
        this.setState({ itemList: newItemList })
        console.log("after: this.state.itemList=", this.state.itemList)

        this.props.onEditableCellChange(this.state.itemList)
        // console.log("newItemList=", newItemList)
        // this.props.onEditableCellChange(newItemList)
      }

      render() {
        console.log("EditableTable render: this.state.itemList=", this.state.itemList)

        const curColumns = this.state.columns.map((col) => {
          console.log("curColumns: col=", col)

          if (!col.editable) {
            return col
          }

          return {
            ...col,
            onCell: (record) => {

              /*
              * Note:
              * 1. each cell is editable is set by:
              * first priority: cell editable by each item/cell in this.props.itemList
              * then check: column editable by each column in this.props.columns
              */
              let cellIsEditable
              if (record.editable !== undefined) {
                cellIsEditable = record.editable
              } else {
                cellIsEditable = col.editable
              }
              console.log("cellIsEditable=", cellIsEditable, ", record=", record)

              return {
                record,
                editable: cellIsEditable,
                dataIndex: col.dataIndex,
                title: col.title,
                form: this.props.form,
                handleSave: this.handleSaveEditableCell,
              }
            },
          }
        })

        return (
          <Table
            pagination={false}
            footer={this.props.footer}
            bordered
            columns={curColumns}
            dataSource={this.state.itemList}
            components={
    this.components
    }
            onRow={(record, index) => ({
              index,
            })}
          />
        );
      }
    }

    EditableTable.defaultProps = {
      itemList: [],
      onEditableCellChange: (newItemList) => {},
      footer: '',
    };
    /src/components/EditableCell/index.js
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    import React, { PureComponent } from 'react';
    import styles from './index.less';
    import { Form, Input } from 'antd';

    const FormItem = Form.Item;
    const EditableContext = React.createContext();

    const EditableRow = ({ form, index, ...props }) => (
      <EditableContext.Provider value={form}>
        <tr {...props} />
      </EditableContext.Provider>
    );

    export const EditableFormRow = Form.create()(EditableRow);

    // export default class EditableCell extends PureComponent {
    export class EditableCell extends PureComponent {

      state = {
        editing: false,
      }

      componentDidMount() {
        console.log("EditableCell componentDidMount: this.props.editable", this.props.editable)

        if (this.props.editable) {
          document.addEventListener('click', this.handleClickOutside, true);
        }
      }

      componentWillUnmount() {
        if (this.props.editable) {
          document.removeEventListener('click', this.handleClickOutside, true);
        }
      }

      toggleEdit = () => {
        console.log("toggleEdit=")
        console.log("this.state.editing=", this.state.editing)

        const editing = !this.state.editing;
        this.setState({ editing }, () => {
          if (editing) {
            this.input.focus();
          }
        });
      }

      handleClickOutside = (e) => {
        const { editing } = this.state;
        if (editing && this.cell !== e.target && !this.cell.contains(e.target)) {
          this.save();
        }
      }

      save = () => {
        console.log("save")
        const { record, handleSave } = this.props;
        console.log("record=", record)
        this.form.validateFields((error, values) => {
          console.log("form.validateFields=: error", error, ", values=", values)

          if (error) {
            return
          }
          this.toggleEdit();
          handleSave({ ...record, ...values });
        });
      }

      render() {
        const { editing } = this.state;

        const {
          editable,
          dataIndex,
          title,
          record,
          index,
          // handleSave,
          ...restProps
        } = this.props;

        // console.log("editing=", editing, ", editable=", editable, ", record=", record)

        return (
          <td ref={node => (this.cell = node)} {...restProps}>
            {editable ? (
              <EditableContext.Consumer>
                {(form) => {
                  console.log("EditableContext.Consumer: form=", form)

                  this.form = form;
                  return (
                    editing ? (
                      <FormItem style={{ margin: 0 }}>
                        {form.getFieldDecorator(dataIndex, {
                          rules: [{
                            required: true,
                            message: `${title} is required.`,
                          }],
                          initialValue: record[dataIndex],
                        })(
                          <Input
                            ref={node => (this.input = node)}
                            onPressEnter={this.save}
                          />
                        )}
                      </FormItem>
                    ) : (
                      <div
                        className={styles.editableCellValueWrap}
                        // className={styles.nonEditableCellValueWrap}
                        style={{ paddingRight: 5 }}
                        onClick={this.toggleEdit}
                      >
                        {restProps.children}
                      </div>
                    )
                  );
                }}
              </EditableContext.Consumer>
            // ) : restProps.children}
          ) : (
            <div
              className={styles.nonEditableCellValueWrap}
            >
              {restProps.children}
            </div>
          )
          }
          </td>
        );
      }
    }
    对应less的css：
    /src/components/EditableCell/index.less
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    @import '~antd/lib/style/themes/default.less';

    .editable-cell {
      position: relative;
    }

    .nonEditableCellValueWrap {
      padding: 5px 12px;
      cursor: auto;
      // color: darkcyan;
      color: darkblue;
    }

    .editableCellValueWrap {
      padding: 5px 12px;
      // padding: 2px 4px;
      cursor: pointer;
      // cursor: -webkit-grab;
    }

    // .editable-row:hover .editableCellValueWrap {
    // .editableRow:hover .editableCellValueWrap {
    .editableCellValueWrap:hover {
      border: 1px solid #d9d9d9;
      border-radius: 4px;
      padding: 4px 11px;
      // padding: 2px 4px;
    }
    可拖动的表格：
    /src/components/DragableTable/index.js
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    import React from 'react'
    import { Table } from 'antd'
    import { DragDropContext } from 'react-dnd'
    import HTML5Backend from 'react-dnd-html5-backend'
    import update from 'immutability-helper'
    import DragableBodyRow from '../DragableBodyRow'
    import styles from './index.less';

    @DragDropContext(HTML5Backend)
    export default class DragableTable extends
    React.Component
     {
      constructor(props){
        super(props)
        console.log("DragableTable constructor: props=", props)

        console.log("this.props.columns=", this.props.columns)
        console.log("this.props.itemList=", this.props.itemList)
        console.log("this.props.onDragableListChange=", this.props.onDragableListChange)

        this.state.itemList = this.props.itemList;
        this.state.columns = this.props.columns;
      }

      state = {
        columns: [],
        itemList: [],
      }

      // componentWillReceiveProps(nextProps){
      //   console.log("DragableTable componentWillReceiveProps: nextProps=", nextProps)
      //   console.log("this.props.itemList=", this.props.itemList)
      //   if (this.props.itemList) {
      //     this.setState({itemList: this.props.itemList})
      //     console.log("updated this.state.itemList=", this.state.itemList)
      //   }
      // }

      components = {
        body: {
          row: DragableBodyRow,
        },
      }

      moveRow = (dragIndex, hoverIndex) => {
        const { itemList } = this.state;
        const dragRow = itemList[dragIndex];

        this.setState(
          update(this.state, {
            itemList: {
              $splice: [[dragIndex, 1], [hoverIndex, 0, dragRow]],
            },
          }),
        )

        console.log("moveRow: this.state.itemList=", this.state.itemList)
        this.props.onDragableListChange(this.state.itemList)
      }

      render() {
        console.log("DragableTable render: this.state.itemList=", this.state.itemList)

        return (
          <Table
            pagination={false}
            footer={this.props.footer}
            rowClassName={(record, index) => {
              const curRowStyle = styles.sameWithEditableCell
              console.log("rowClassName: record=", record, " ,index=", index, ", curRowStyle=", curRowStyle)
              return curRowStyle
            }}
            bordered
            columns={this.state.columns}
            dataSource={this.state.itemList}
            components={
    this.components
    }
            onRow={(record, index) => ({
              index,
              moveRow: this.moveRow,
            })}
          />
        );
      }
    }

    DragableTable.defaultProps = {
      itemList: [],
      onDragableListChange: (dragSortedList) => {},
      footer: '',
    };
    对应less的css：
    /src/components/DragableTable/index.less
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    @import '~antd/lib/style/themes/default.less';

    .sameWithEditableCell {
      td {
        // padding: 5px 12px;
        // padding: 16px 18px;
        padding: 21px 28px !important;
        // color: darkcyan !important;
        color: darkblue !important;
        cursor: ns-resize !important;
      }
    }
    内部的row：
    /src/components/DragableBodyRow/index.js
    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    import React from 'react';
    import { DragSource, DropTarget } from 'react-dnd';

    function dragDirection(
      dragIndex,
      hoverIndex,
      initialClientOffset,
      clientOffset,
      sourceClientOffset,
    ) {
      const hoverMiddleY = (initialClientOffset.y - sourceClientOffset.y) / 2;
      const hoverClientY = clientOffset.y - sourceClientOffset.y;
      if (dragIndex < hoverIndex && hoverClientY > hoverMiddleY) {
        return 'downward';
      }
      if (dragIndex > hoverIndex && hoverClientY < hoverMiddleY) {
        return 'upward';
      }
    }

    class BodyRow extends
    React.Component
     {
      render() {
        const {
          isOver,
          connectDragSource,
          connectDropTarget,
          moveRow,
          dragRow,
          clientOffset,
          sourceClientOffset,
          initialClientOffset,
          ...restProps
        } = this.props;
        const style = { ...restProps.style, cursor: 'move' };

        let className = restProps.className;
        if (isOver && initialClientOffset) {
          const direction = dragDirection(
            dragRow.index,
            restProps.index,
            initialClientOffset,
            clientOffset,
            sourceClientOffset
          );
          if (direction === 'downward') {
            className += ' drop-over-downward';
          }
          if (direction === 'upward') {
            className += ' drop-over-upward';
          }
        }

        return connectDragSource(
          connectDropTarget(
            <tr
              {...restProps}
              className={className}
              style={style}
            />
          )
        );
      }
    }

    const rowSource = {
      beginDrag(props) {
        return {
          index: props.index,
        };
      },
    };

    const rowTarget = {
      drop(props, monitor) {
        const dragIndex = monitor.getItem().index;
        const hoverIndex = props.index;

        // Don't replace items with themselves
        if (dragIndex === hoverIndex) {
          return;
        }

        // Time to actually perform the action
        props.moveRow(dragIndex, hoverIndex);

        // Note: we're mutating the monitor item here!
        // Generally it's better to avoid mutations,
        // but it's good here for the sake of performance
        // to avoid expensive index searches.
        monitor.getItem().index = hoverIndex;
      },
    };


    // const DragableBodyRow = DropTarget('row', rowTarget, (connect, monitor) => ({
    const DragableBodyRow = DropTarget('row', rowTarget, (connect, monitor) => ({
      connectDropTarget: connect.dropTarget(),
      isOver: monitor.isOver(),
      sourceClientOffset: monitor.getSourceClientOffset(),
    }))(
      DragSource('row', rowSource, (connect, monitor) => ({
        connectDragSource: connect.dragSource(),
        dragRow: monitor.getItem(),
        clientOffset: monitor.getClientOffset(),
        initialClientOffset: monitor.getInitialClientOffset(),
      }))(BodyRow)
    );

    export default DragableBodyRow
    从而实现了优化：
    • 合并了可拖动的DragableTable和可编辑的EditableTable
    • 通过<Table pagination={false}实现了去掉分页
    • 通过指定Table的footer实现了显示 radiobutton去切换 两种模式：拖动模式 分页模式
    • 通过设置DragableTable的Table的rowClassName，实现了模式切换后表格的样式不变
      • 尤其是cell的padding和高度
      • 避免了用户在切换后模式后，觉得表格单元格高低不同而觉得太突兀
    效果：
    切换后：
    去拖动：

    转载请注明：在路上 » 【已解决】剧本编写系统中优化可拖动排序可编辑单元格的表格

    Post Views: 1,120

    与本文相关的文章

    发表我的评论
    取消评论

    表情

    Hi，您需要填写昵称和邮箱！

    • 昵称 (必填)
    • 邮箱 (必填)
    • 网址
    80 queries in 0.329 seconds, using 22.31MB memory
