    【记录】Android中创建进程或线程去实现USB设备插入的状态检测

    Android crifan 3575浏览 0评论

    【背景】

    折腾：

    【已解决】Android设备作为Host希望实现可以检测到USB设备插入

    期间，需要尝试去通过，新建一个线程或进程，然后去动态检测USB设备的插入。

    【折腾过程】

    1.先去搞懂，android中如何新建线程。

    2.官网文档：

    https://developer.android.com/reference/java/lang/Thread.html

    3.看看：

    Android 线程 thread 两种实现方法！

    Android create new thread in service class

    去试试。

    4.期间出现：

    【已解决】android中switch中的case中不用使用enum枚举值：Type mismatch: cannot convert from xxx to int

    5.再去继续写代码测试。

    然后又遇到：

    【已解决】android中enum转换为int

    6.然后用了代码：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    usbActionDetectThread =new Thread(
            new Runnable() {
                @Override
                public void run()
                {
                    Toast.makeText(getApplicationContext(), "Begin check usb action", 1000).show();

                    UsbManager manager = (UsbManager) getSystemService(Context.USB_SERVICE);
                    HashMap<String, UsbDevice> deviceList = manager.getDeviceList();
                    Iterator<UsbDevice> deviceIterator = deviceList.values().iterator();
                    while(deviceIterator.hasNext()){
                        UsbDevice device = deviceIterator.next();
                        int usbVid = device.getVendorId();
                        int usbPid = device.getProductId();
                        if((usbVid == ft232rUartVid) && (usbPid ==ft232rUartPid) ){
                            Toast.makeText(getApplicationContext(), "Found Usb device: FT232R UART", Toast.LENGTH_LONG).show();
                            Toast.makeText(getApplicationContext(), "Now send message USB_ACTION_ATTACH to activity ", Toast.LENGTH_LONG).show();

                            Message foundUsbDeviceAttachMsg =new Message();
                            foundUsbDeviceAttachMsg.what=usb_action.USB_ACTION_ATTACH.getAction();
                            mHandler.sendMessage(foundUsbDeviceAttachMsg);

                            break;
                        }
                        else
                        {
                            Toast.makeText(getApplicationContext(), "Found USB VID="+usbVid+" PID=" + usbPid, Toast.LENGTH_LONG).show();
                        }
                    }

                    try {
                        Thread.sleep(200);
                    } catch (InterruptedException e) {
                        // TODO Auto-generated catch block
                        //e.printStackTrace();
                    }
                }
    });

    usbActionDetectThread.start();

    结果都没指定到：

    run函数里面去。。。

    7.参考：

    How to Send the Current Thread to Sleep

    去改为：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    usbActionDetectThread =new Thread()
            //new Runnable() {
    {
               // @Override
                public void run()
                {
                    Toast.makeText(getApplicationContext(), "Begin check usb action", 1000).show();

                    UsbManager manager = (UsbManager) getSystemService(Context.USB_SERVICE);
                    HashMap<String, UsbDevice> deviceList = manager.getDeviceList();
                    Iterator<UsbDevice> deviceIterator = deviceList.values().iterator();
                    while(deviceIterator.hasNext()){
                        UsbDevice device = deviceIterator.next();
                        int usbVid = device.getVendorId();
                        int usbPid = device.getProductId();
                        if((usbVid == ft232rUartVid) && (usbPid ==ft232rUartPid) ){
                            Toast.makeText(getApplicationContext(), "Found Usb device: FT232R UART", Toast.LENGTH_LONG).show();
                            Toast.makeText(getApplicationContext(), "Now send message USB_ACTION_ATTACH to activity ", Toast.LENGTH_LONG).show();

                            Message foundUsbDeviceAttachMsg =new Message();
                            foundUsbDeviceAttachMsg.what=usb_action.USB_ACTION_ATTACH.getAction();
                            mHandler.sendMessage(foundUsbDeviceAttachMsg);

                            break;
                        }
                        else
                        {
                            Toast.makeText(getApplicationContext(), "Found USB VID="+usbVid+" PID=" + usbPid, Toast.LENGTH_LONG).show();
                        }
                    }

                    try {
                        Thread.sleep(200);
                    } catch (InterruptedException e) {
                        // TODO Auto-generated catch block
                        //e.printStackTrace();
                    }
                }
    };

    usbActionDetectThread.start();

    再去试试是否能运行到。

    结果还是不行。

    8.再改为通过Handler：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    //public class DeviceListActivity extends BaseActivity {
    public class DeviceListActivity extends BaseActivity implements Runnable {

        @Override
        public void run() {
            //0x0403 / 0x6001: FTDI FT232R UART
            final int ft232rUartVid = 0x0403; //1027
            final int ft232rUartPid = 0x6001; //24577

            Toast.makeText(getApplicationContext(), "Begin check usb action", 1000).show();

            UsbManager manager = (UsbManager) getSystemService(Context.USB_SERVICE);
            HashMap<String, UsbDevice> deviceList = manager.getDeviceList();
            Iterator<UsbDevice> deviceIterator = deviceList.values().iterator();
            while(deviceIterator.hasNext()){
                UsbDevice device = deviceIterator.next();
                int usbVid = device.getVendorId();
                int usbPid = device.getProductId();
                if((usbVid == ft232rUartVid) && (usbPid ==ft232rUartPid) ){
                    Toast.makeText(getApplicationContext(), "Found Usb device: FT232R UART", Toast.LENGTH_LONG).show();
                    Toast.makeText(getApplicationContext(), "Now send message USB_ACTION_ATTACH to activity ", Toast.LENGTH_LONG).show();

                    Message foundUsbDeviceAttachMsg =new Message();
                    foundUsbDeviceAttachMsg.what=usb_action.USB_ACTION_ATTACH.getAction();
                    mHandler.sendMessage(foundUsbDeviceAttachMsg);

                    break;
                }
                else
                {
                    Toast.makeText(getApplicationContext(), "Found USB VID="+usbVid+" PID=" + usbPid, Toast.LENGTH_LONG).show();
                }
            }
        }

        private void usbActionDetectViaHandler(){
            mHandler=new Handler()
            {
                public void handleMessage(Message msg)
                {
                    usb_action curUsbAction = usb_action.values()[msg.what]; //do your own bounds checking
                    switch(curUsbAction)
                    {
                        case USB_ACTION_UNKNOWN:
                            Toast.makeText(getApplicationContext(), "Unkown USB action !", Toast.LENGTH_LONG).show();
                            break;
                        case USB_ACTION_ATTACH:
                            //TODO: do auto scan hart devices
                            Toast.makeText(getApplicationContext(), "Now should call the HART auto scan", Toast.LENGTH_LONG).show();
                            break;
                        case USB_ACTION_DETACH:
                            //stop auto detect usb action thread
                            Toast.makeText(getApplicationContext(), "Now destory the usb action detect thread", Toast.LENGTH_LONG).show();
                            usbActionDetectThread.destroy();
                            break;
                        default:
                            break;
                    }
                    super.handleMessage(msg);
                }
            };

            Thread curThread=new Thread(this);
            curThread.start();
        }

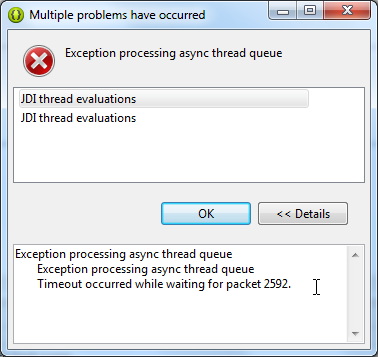

    结果却会出错：

    jdi thread evaluations exception processing async thread queue

    参考：

    [Java:Eclipse]JDI thread evaluations:Exception processing async thread queue

    去关闭Expressions视图，

    重新debug，看看是否还会有该错误。

    果然没了该错误了。

    但是该运行的代码，还是没运行到。。。

    9.参考：

    Specifying the Code to Run on a Thread

    看到其中关键一句：

    Remember, though, that the Runnable won’t be running on the UI thread,

    所以，上述的代码，写在Runnable中的，是没法运行在：

    我当前的，本身就是出于UI线程中的。

    但是应该是：

    的确底层，去新建了线程，去执行对应的代码的。

    10.后来发现，上述代码出错了：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    11-06 16:47:42.988: E/AndroidRuntime(3037): FATAL EXCEPTION: Thread-361
    11-06 16:47:42.988: E/AndroidRuntime(3037): java.lang.RuntimeException: Can't create handler inside thread that has not called Looper.prepare()
    11-06 16:47:42.988: E/AndroidRuntime(3037):     at android.os.Handler.<init>(Handler.java:121)
    11-06 16:47:42.988: E/AndroidRuntime(3037):     at android.widget.Toast$TN.<init>(Toast.java:347)
    11-06 16:47:42.988: E/AndroidRuntime(3037):     at android.widget.Toast.<init>(Toast.java:93)
    11-06 16:47:42.988: E/AndroidRuntime(3037):     at android.widget.Toast.makeText(Toast.java:240)
    11-06 16:47:42.988: E/AndroidRuntime(3037):     at com.yy.xxx.activities.DeviceListActivity.run(DeviceListActivity.java:298)
    11-06 16:47:42.988: E/AndroidRuntime(3037):     at java.lang.Thread.run(Thread.java:856)
    11-06 16:47:43.386: D/dalvikvm(3037): threadid=1: still suspended after undo (sc=1 dc=1)

    看代码中的：

    ?
    1
    public void run() {

    很明显是：

    第一句就是：

    298行的：

    ?
    1
    Toast.makeText(getApplicationContext(), "Begin check usb action", 1000).show();

    结果导致了上面的

    at com.yy.xxx.activities.DeviceListActivity.run(DeviceListActivity.java:298)

    调用makeText出错：

    at android.widget.Toast.makeText(Toast.java:240)

    的。

    11.所以，去参考：

    Communicating with the UI Thread

    看看如何打印toast。

    算了，暂时不打印toast了，改为log算了：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    @Override
    public void run() {
        //0x0403 / 0x6001: FTDI FT232R UART
        final int ft232rUartVid = 0x0403; //1027
        final int ft232rUartPid = 0x6001; //24577

        //Toast.makeText(getApplicationContext(), "Begin check usb action", 1000).show();
        gLogger.debug("Begin check usb action");

        UsbManager manager = (UsbManager) getSystemService(Context.USB_SERVICE);
        HashMap<String, UsbDevice> deviceList = manager.getDeviceList();
        Iterator<UsbDevice> deviceIterator = deviceList.values().iterator();
        while(deviceIterator.hasNext()){
            UsbDevice device = deviceIterator.next();
            int usbVid = device.getVendorId();
            int usbPid = device.getProductId();
            if((usbVid == ft232rUartVid) && (usbPid ==ft232rUartPid) ){
                //Toast.makeText(getApplicationContext(), "Found Usb device: FT232R UART", Toast.LENGTH_LONG).show();
                //Toast.makeText(getApplicationContext(), "Now send message USB_ACTION_ATTACH to activity ", Toast.LENGTH_LONG).show();
                gLogger.debug("Found Usb device: FT232R UART");
                gLogger.debug("Now send message USB_ACTION_ATTACH to activit");

                Message foundUsbDeviceAttachMsg =new Message();
                foundUsbDeviceAttachMsg.what=usb_action.USB_ACTION_ATTACH.getAction();
                mHandler.sendMessage(foundUsbDeviceAttachMsg);

                break;
            }
            else
            {
                //Toast.makeText(getApplicationContext(), "Found USB VID="+usbVid+" PID=" + usbPid, Toast.LENGTH_LONG).show();
                gLogger.debug("Found USB VID="+usbVid+" PID=" + usbPid);
            }
        }
    }

    然后继续调试。

    然后的确可以运行到这个run函数了。

    12.但是又有问题：

    代码：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    @Override
    public void run() {
        //0x0403 / 0x6001: FTDI FT232R UART
        final int ft232rUartVid = 0x0403; //1027
        final int ft232rUartPid = 0x6001; //24577

        //Toast.makeText(getApplicationContext(), "Begin check usb action", 1000).show();
        gLogger.debug("Begin check usb action");

        UsbManager manager = (UsbManager) getSystemService(Context.USB_SERVICE);
        HashMap<String, UsbDevice> deviceList = manager.getDeviceList();
        Iterator<UsbDevice> deviceIterator = deviceList.values().iterator();
        while(deviceIterator.hasNext()){
            UsbDevice device = deviceIterator.next();
            int usbVid = device.getVendorId();
            int usbPid = device.getProductId();
            if((usbVid == ft232rUartVid) && (usbPid ==ft232rUartPid) ){
                //Toast.makeText(getApplicationContext(), "Found Usb device: FT232R UART", Toast.LENGTH_LONG).show();
                //Toast.makeText(getApplicationContext(), "Now send message USB_ACTION_ATTACH to activity ", Toast.LENGTH_LONG).show();
                gLogger.debug("Found Usb device: FT232R UART");
                gLogger.debug("Now send message USB_ACTION_ATTACH to activit");

                Message foundUsbDeviceAttachMsg =new Message();
                foundUsbDeviceAttachMsg.what=usb_action.USB_ACTION_ATTACH.getAction();
                mHandler.sendMessage(foundUsbDeviceAttachMsg);

                break;
            }
            else
            {
                //Toast.makeText(getApplicationContext(), "Found USB VID="+usbVid+" PID=" + usbPid, Toast.LENGTH_LONG).show();
                gLogger.debug("Found USB VID="+usbVid+" PID=" + usbPid);
            }
        }

        try {
            Thread.sleep(200);
        } catch (InterruptedException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }

    只运行了一次，只执行了一次的sleep的200毫秒后，结果就不再执行了。

    所以需要去解决：

    【已解决】为何android中实现了Runnable的进程只运行了一次

    然后就可以正常检测usb的状态了。



    【总结】

    此处，相关代码为：

    ?
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    public class DeviceListActivity extends BaseActivity implements Runnable {

        private Thread usbActionDetectThread = null;
         public Handler mHandler;


        @Override
        public void run() {
            // set to lower priority
            android.os.Process.setThreadPriority(android.os.Process.THREAD_PRIORITY_BACKGROUND);

            //0x0403 / 0x6001: FTDI FT232R UART
            final int ft232rUartVid = 0x0403; //1027
            final int ft232rUartPid = 0x6001; //24577

            boolean bNotFoundUsb = true;
            while(bNotFoundUsb)
            {
                //Toast.makeText(getApplicationContext(), "Begin check usb action", 1000).show();
                gLogger.debug("Begin check usb action");

                UsbManager manager = (UsbManager) getSystemService(Context.USB_SERVICE);
                HashMap<String, UsbDevice> deviceList = manager.getDeviceList();
                Iterator<UsbDevice> deviceIterator = deviceList.values().iterator();
                while(deviceIterator.hasNext()){
                    UsbDevice device = deviceIterator.next();
                    int usbVid = device.getVendorId();
                    int usbPid = device.getProductId();
                    if((usbVid == ft232rUartVid) && (usbPid ==ft232rUartPid) ){
                        //Toast.makeText(getApplicationContext(), "Found Usb device: FT232R UART", Toast.LENGTH_LONG).show();
                        //Toast.makeText(getApplicationContext(), "Now send message USB_ACTION_ATTACH to activity ", Toast.LENGTH_LONG).show();
                        gLogger.debug("Found Usb device: FT232R UART");
                        gLogger.debug("Now send message USB_ACTION_ATTACH to activit");

                        Message foundUsbDeviceAttachMsg =new Message();
                        foundUsbDeviceAttachMsg.what=usb_action.USB_ACTION_ATTACH.getAction();
                        mHandler.sendMessage(foundUsbDeviceAttachMsg);

                        bNotFoundUsb = false;

                        break;
                    }
                    else
                    {
                        //Toast.makeText(getApplicationContext(), "Found USB VID="+usbVid+" PID=" + usbPid, Toast.LENGTH_LONG).show();
                        gLogger.debug("Found USB VID="+usbVid+" PID=" + usbPid);
                    }
                }//while(deviceIterator.hasNext()){

                if(bNotFoundUsb)
                {
                    try {
                        int sleepTimeInMs = 200;
                        gLogger.debug("Sleep milliseconds: " + sleepTimeInMs);
                        Thread.sleep(sleepTimeInMs);
                    } catch (InterruptedException e) {
                        // TODO Auto-generated catch block
                        //e.printStackTrace();
                    }
                }

                }//while(bNotFoundUsb)
            }//public void run()
        }

        public enum usb_action{
            USB_ACTION_UNKNOWN(0), USB_ACTION_ATTACH(1), USB_ACTION_DETACH(2);

            usb_action (int action)
            {
                this.action = action;
            }

            private final int action;

            public int getAction() {
                return action;
            }
        }

        private void usbActionDetectViaHandler(){
            mHandler=new Handler()
            {
                public void handleMessage(Message msg)
                {
                    usb_action curUsbAction = usb_action.values()[msg.what]; //do your own bounds checking
                    switch(curUsbAction)
                    {
                        case USB_ACTION_UNKNOWN:
                            Toast.makeText(getApplicationContext(), "Unkown USB action !", Toast.LENGTH_LONG).show();
                            break;
                        case USB_ACTION_ATTACH:
                            //TODO: do auto scan hart devices
                            Toast.makeText(getApplicationContext(), "Now should call the HART auto scan", Toast.LENGTH_LONG).show();
                            break;
                        case USB_ACTION_DETACH:
                            //stop auto detect usb action thread
                            Toast.makeText(getApplicationContext(), "Now destory the usb action detect thread", Toast.LENGTH_LONG).show();
                            usbActionDetectThread.destroy();
                            usbActionDetectThread = null;
                            break;
                        default:
                            break;
                    }
                    super.handleMessage(msg);
                }
            };

            Thread curThread=new Thread(this);
            curThread.start();
        }

        private void detectUsbDeviceAttach(){
            //Method1: this should work, but due to android usb manager bug:
            //can not get intert usb attach action
            //so here can not use this method
            //usbActionDetectViaFilter();

            //Method2: use thread + handler to do usb detect
            usbActionDetectViaHandler();
        }

        @Override
        protected void onCreate(Bundle savedInstanceState) {
            super.onCreate(savedInstanceState);
            //...

            detectUsbDeviceAttach();
        }

        @SuppressWarnings("deprecation")
        @Override
        public void onDestroy() {
            //...

            super.onDestroy();
            //usbOnDestroy();

            //TODO: release current resources? thread? ...
            if(null != usbActionDetectThread){
                if(usbActionDetectThread.isAlive()){
                    usbActionDetectThread.destroy();
                }
            }
        }

    }

    可以实现：

    循环执行，检测usb的插入

    发送都应的message给handler去处理。

    然后后续就可以去执行自己要的动作了。

    转载请注明：在路上 » 【记录】Android中创建进程或线程去实现USB设备插入的状态检测

    Post Views: 1,383

    与本文相关的文章

    发表我的评论
    取消评论

    表情

    Hi，您需要填写昵称和邮箱！

    • 昵称 (必填)
    • 邮箱 (必填)
    • 网址
    83 queries in 0.388 seconds, using 22.31MB memory
