2.1. Normal examples

2.1.1. Generic mouse

3-button mouse:

图 2.1. HID Report Example - 3 button mouse

HID Report Example - 3 button mouse

Note: above data’s format is:

05 01 = 0x 01 05

09 02 = 0x 02 09

2.1.2. Keyboard

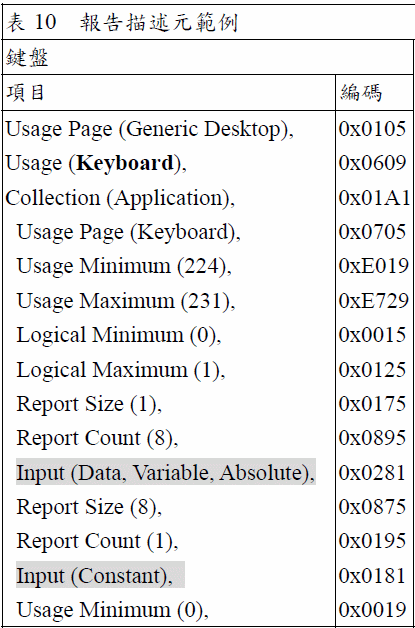

图 2.2. HID Report Example - keyboard - 1/2

HID Report Example - keyboard - 1/2

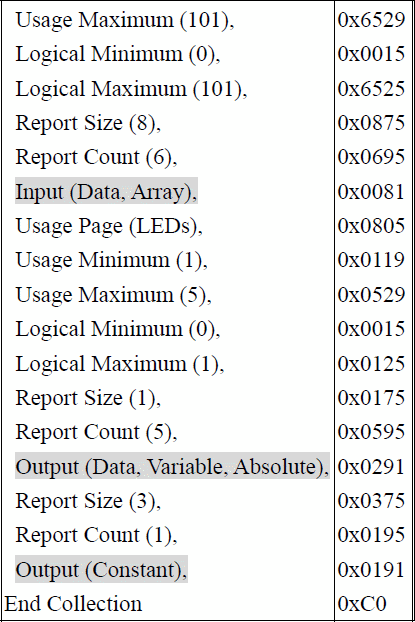

图 2.3. HID Report Example - keyboard - 2/2

HID Report Example - keyboard - 2/2
